Panel Description - Icom IC-M92D Instruction Manual

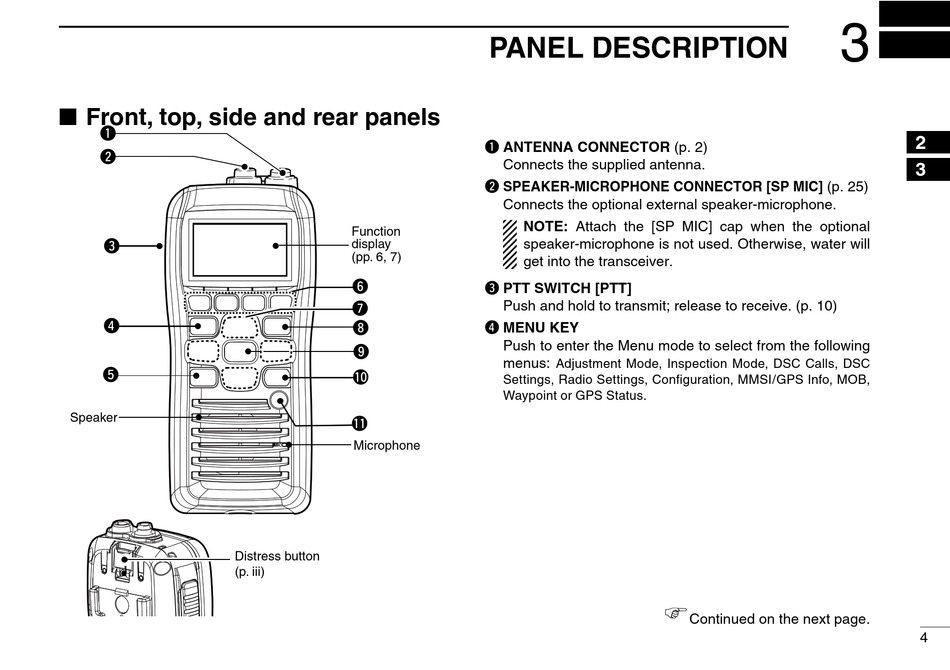

Front, top, side and rear panels
■
q
w
e
r
t
Speaker
Distress button
(p. iii)

PANEL DESCRIPTION

q ANTENNA CONNECTOR (p. 2)
Connects the supplied antenna.
w SPEAKER-MICROPHONE CONNECTOR [SP MIC] (p. 25)
Connects the optional external speaker-microphone.
NOTE: Attach the [SP MIC] cap when the optional
Function
speaker-microphone is not used. Otherwise, water will
display
(pp. 6, 7)
get into the transceiver.
y
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 10)
u
r MENU KEY
i
Push to enter the Menu mode to select from the following
o
menus:
!0
Settings, Radio Settings, Configuration, MMSI/GPS Info, MOB,
Waypoint or GPS Status.
!1
Microphone
Adjustment Mode, Inspection Mode, DSC Calls, DSC

Continued on the next page.
