Attaching the Wilson Ultra-Slim Antenna
For cell phones with an internal antenna, place
the Ultra-Slim on the back of the phone near
the top. (Figure 1) NOTE: Certain phones,
such as the Motorola RAZR, have internal
antennas at the base, rather than the top, in
which case the Ultra Slim should be attached
at the bottom rear of the phone.
For cell phones with an external antenna,
place the Ultra Slim directly below the phone's
original antenna. (Figure 2)
If you have any questions as to the location
of the antenna on your phone, call Wilson
Technical Support at 866-294-1660, 435-673-
5021 or visit www.wilsonelectronics.com.
7

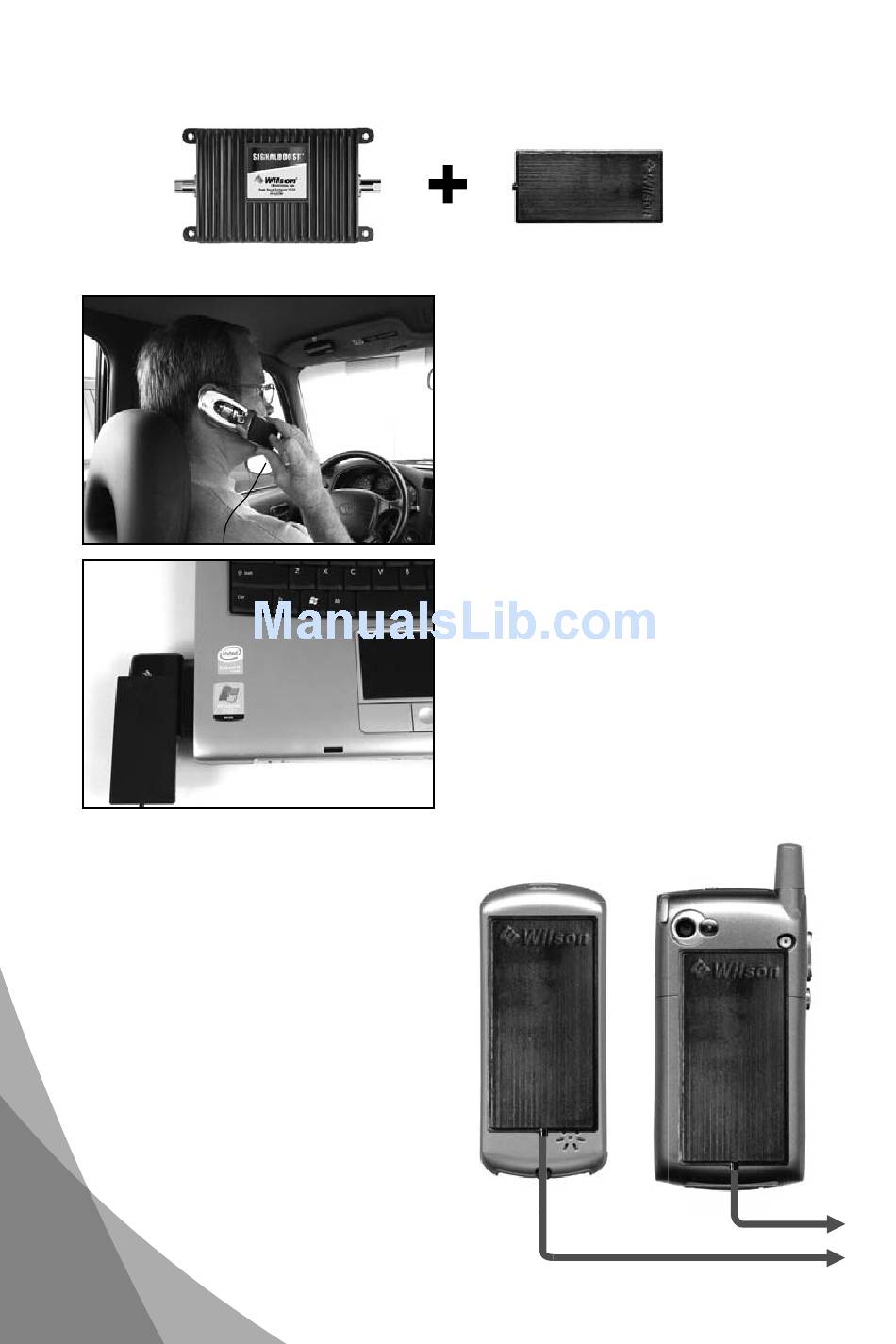

Amplifi er
Cellular data card
Ultra-Slim Antenna
The Ultra-Slim must be placed directly
on the cell phone or cellular data card to
work properly. Attach the Ultra-Slim to the
cell phone or cellular data card with the
VELCRO ® .
The Ultra-Slim cable is long enough to
reach the amplifi er location. This allows for
ease and convenience of use.
To adjust the Ultra-Slim for the best signal,
go to a weak signal location where your
cell phone registers only 1-2 bars without
the Ultra-Slim connected. (Be sure the
amplifi er is turned off when checking for
low signal.) Then, attach the Ultra-Slim to
the phone, power up the amplifi er and you
should see a signal improvement of 2 or
more bars.
NOTE: Many phones take up to 20 seconds
to reset the bar indicator.
To maximize performance, attach the Ultra-
Slim as close as possible to the original
antenna on your cell phone or cellular data
card.
Figure 1
Figure 2
To Amplifi er
