Installing the Wilson SIGNALBOOST™ Mobile Amplifi er

Installing the Cradle Plus

5
!
Warning: Do not plug in the DC power
supply until the antenna and Cradle Plus
cables are attached to the amplifi er.

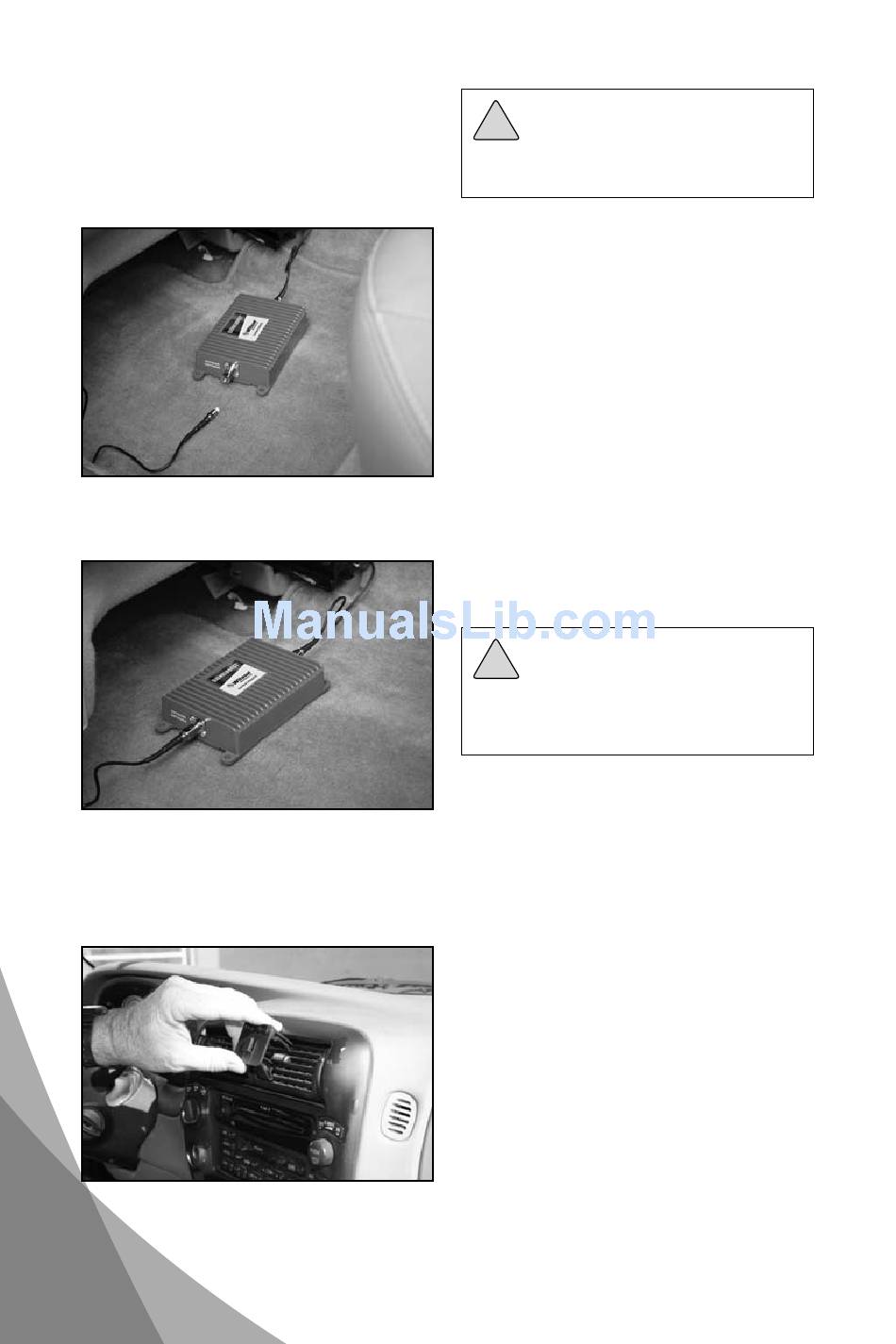

Select a location to install the amplifi er that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations for the
amplifi er are:
• Under the seat
• Under the dash
Run the cable from the antenna and attach
it to the FME-Male connector labeled
"outside antenna" on the amplifi er.
Attach the cable from the Cradle Plus to the
FME-Male connector on the amplifi er.
!
Warning: Do not plug the amplifi er
directly into the cell phone or cellular data card
using an antenna adapter. It will damage the
cell phone or cellular data card.
Option 1 - Air Vent Bracket
Insert the two vent clips into the circular
hole in the bracket and slide them to each
end of the slot. The fl at surface of the clips
should face upwards.
Slide the bracket clips into the chosen vent
until they snap into place. If necessary,
use a thin-bladed screwdriver to gently pry
the clips apart as they slide into the vent.
Position the moveable arm at the base of
the bracket to achieve the desired angle
and to provide additional stability for the
bracket.
