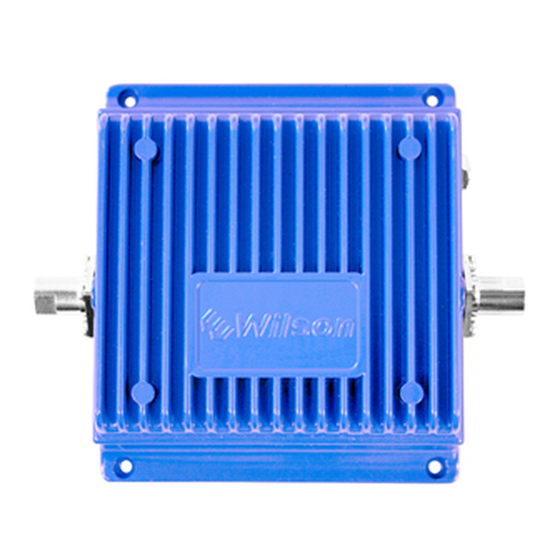

Wilson Electronics 811101 Installation Manual

Direct connection amplifiers
Hide thumbs Also See for 811101:

Advertisement

Table of Contents

Amplifier
Amplifier
Installation
stallatio
stallat
Guide
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · ·
Before Getting Started / How it Works · · · · · · · · · · · · · · 3
Installing a Wilson Amplifi er - In-Vehicle · · · · · · · · · · · · 5
Installing a Wilson Amplifi er - In-Building · · · · · · · · · · · · 7
Powering Up a Wilson Amplifi er · · · · · · · · · · · · · · · · · · · 9
Warnings and Recommendations · · · · · · · · · · · · · · · · · 10
Amplifi er Specifi cations · · · · · · · · · · · · · · · · · Back Cover

Direct Connection

Amplifi ers
!
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifi er.
1
4
6
Wilson
®
Electronics, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 811101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wilson Electronics 811101

Summary of Contents for Wilson Electronics 811101

  • Page 1: Table Of Contents

    Amplifier Amplifier Installation stallatio stallat Guide Direct Connection Amplifi ers Contents: Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · Before Getting Started / How it Works · · · · · · · · · · · · · · 3 Installing a Wilson Outside Antenna - In-Vehicle ·...
  • Page 2 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer.
  • Page 3 Installation Instructions for the Following Wilson Amplifi ers Direct Connection Single Band Amplifi er – Model # 811101 Contains 1900 MHz bypass to allow for antenna gain and 1575 MHz bypass to allow for GPS reception. FCC ID: PWO824D IC: 4726A-824D Direct Connection Dual-Band Amplifi...

  • Page 4: Before Getting Started / How It Works

    Before Getting Started This guide will help you properly install Wilson’s direct connection amplifi ers in both in-vehicle and in-building applications. It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment.
  • Page 5 In-Vehicle Installing a Wilson Outside Antenna To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12 inches away from any other antennas and free of obstructions. Follow the specifi c antenna installation instructions included with the outside antenna (sold separately).

  • Page 6: Installing A Wilson Outside Antenna - In-Vehicle

    In-Vehicle Installing a Wilson Amplifi er Select a location to install the amplifi er that is away from excessive heat, direct sunlight, moisture and that has proper ventilation. Recommended installation locations for in-vehicle are: • Under the seat • In the trunk •...

  • Page 7: Installing A Wilson External Adapter - In-Vehicle

    In-Vehicle Installing a Wilson External Adapter An 18-inch external adapter is required to connect the cell phone or cellular data card to the amplifi er. The external adapter is cell phone/data card-specifi c and may be purchased through a local retailer. Refer to Wilson’s Adapter Guide to identify the right adapter for your cell phone or cellular data card.

  • Page 8: Installing A Wilson Outside Antenna - In-Building

    In-Building Installing a Wilson Outside Antenna – In-Building Select a location on the roof of the building to install the outside antenna that has the most unobstructed line of sight to the cell tower. Follow the specifi c antenna installation instructions included with the outside antenna.

  • Page 9: Installing A Wilson External Adapter - In-Building

    In-Building Installing a Wilson External Adapter An 18-inch external adapter is required to connect the cell phone or cellular data card to the amplifi er. The external adapter is cell phone/data card-specifi c and may be purchased through a local retailer. Refer to Wilson’s Adapter Guide to identify the right adapter for your cell phone or cellular data card.

  • Page 10: Powering Up A Wilson Amplifi Er

    Powering up a Wilson Amplifi er Warning: Verify that both the outside antenna and the adapter extension cable are connected to the amplifi er before powering up the amplifi er. For in-vehicle, fi rst connect the power cable to the amplifi er input marked “DC 12 V IN”...

  • Page 11: Warnings And Recommendations

    Warnings and Recommendations Warning: Verify that both the outside antenna and the adapter extension cable are connected to the amplifi er before powering up the amplifi er. Warning: RF Safety: In-vehicle - The outside antenna must be installed with a separation of at least 16 inches from any of the vehicle’s occupants or nearby persons and must not be located or operating in conjunction with any other antenna or amplifi...

  • Page 12: Amplifi Er Specifi Cations

    Amplifi er Specifi cations Single Band Dual-Band GSM / TDMA iDEN Model Number 811101 811201 812201 814001 Frequency 824-894 MHz 824-894 MHz / 1850-1990 MHz 806-866 MHz Gain Cell site controlled 14 dB 10 dB / 10 dB (up/down) Max RF...

This manual is also suitable for:

811201812201814001
