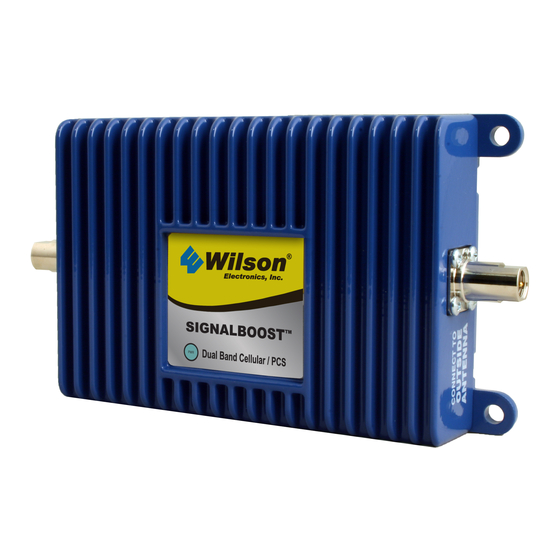

Wilson Electronics SignalBoost 811210 Installation Manual

Dual-band cellular / pcs amplifier
Hide thumbs Also See for SignalBoost 811210:
Table of Contents

Advertisement

Quick Links

Amplifier
Installation
Guide
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · ·
How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installing the Antenna (Vehicle) · · · · · · · · · · · · · · · · · · · 4
Installing the Antenna (Home/Office) · · · · · · · · · · · · · · · 6
Installing the Universal Connector · · · · · · · · · · · · · · · · · 7
Powering Up the Amplifier · · · · · · · · · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · · 9
About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10
Amplifier Specifications · · · · · · · · · · · · · · · · · · Back Cover
SignalBoost™
Dual-Band
Cellular / PCS
Amplifier
PART/MODEL# 811210
!
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifier.
1
Wilson
®
Electronics, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SignalBoost 811210 and is the answer not in the manual?

Questions and answers

Related Manuals for Wilson Electronics SignalBoost 811210

Summary of Contents for Wilson Electronics SignalBoost 811210

  • Page 1: Table Of Contents

    Warnings and Recommendations · · · · · · · · · · · · · · · · · 9 About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10 Amplifier Specifications ·...
  • Page 2 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer.

  • Page 3: How It Works

    Wilson Electronics manufactures a wide variety of antennas and accessories to help you customize your SignalBoost™ Amplifier for your specific application. Several are shown below.

  • Page 4: Before Getting Started

    Before Getting Started This guide will help you properly install Wilson’s dual-band, SignalBoost™ amplifier. It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment.

  • Page 5: Installing The Antenna (Vehicle)

    Vehicle Installation Installing the Antenna To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12 inches away from any other antennas and free of obstructions. The antenna must be installed vertically. Signal performance will be degraded if the antenna is not vertical.

  • Page 6: Installing The Signalboost™ Amplifier (Vehicle)

    Vehicle Installation Installing the Wilson SignalBoost™ Amplifier Warning: Do not plug in the DC power supply until the antenna and universal connector cables are attached to the amplifier. Select a location to install the amplifier that is away from excessive heat, direct sunlight or moisture and that has proper ventilation.

  • Page 7: Installing The Antenna (Home/Office)

    Home/Office Installation Installing the Antenna To receive the best cell signal, select a window location at least 12 inches away from any radio or television antennas and free of obstructions. Using the suction cups, position the mounting bracket on the window at a height convenient to where the amplifier will be located, then attach the antenna to the bracket.

  • Page 8: Installing The Universal Connector

    Installing the Wilson Universal Connector Amplifier 6’ Extension Universal Cable Connector The universal connector must be placed directly on the cell phone or cellular data card to work properly. Attach the universal connector to the cell phone or cellular data card with the VELCRO included in the ®...

  • Page 9: Powering Up The Amplifier

    Powering up the Amplifier Make sure both the outside antenna and universal connector cables are connected before powering up the amplifier. For vehicle use, connect the power cable from the DC plug-in power supply to the amplifier input marked “Power” and insert the large end into DC power socket (the cigarette lighter outlet).

  • Page 10: Warnings And Recommendations

    Warnings and Recommendations Warning: Do not plug the amplifier directly into the cell phone or cellular data card using an antenna adapter. It will damage the cell phone or cellular data card. Warning: Do not plug in the power supply until the antenna and universal connector cables are attached to the amplifier.

  • Page 11: About Wilson Electronics

    About Wilson Electronics Wilson Electronics, Inc. has been a leader in the wireless communications industry for nearly 40 years. The company designs and manufactures amplifiers, antennas and related components that significantly improve cellular telephone signal reception and transmission in a wide variety of applications, both mobile and in-building.

  • Page 12: Amplifier Specifications

    Amplifier Specifications Dual Band 800/1900 MHz Specifications Model Number 811210 Connectors FME-Male Impedance (input/output) 50 Ohms Dimensions 5 x 3.5 x 1.2 inch or 12.7 x 8.9 x 3 cm Weight 1.03 lbs or 0.468 kg Frequency 824-894 MHz / 1850-1990 MHz Passband Gain (nominal) 800 MHz (uplink/downlink) 26 dB / 26 dB...
