Amplifier
Amplifier
Installation
stallatio
stallat
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · 1
How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
Install Diagrams - Vehicle · · · · · · · · · · · · · · · · · · · · · · 3
Install Diagrams - In-Building · · · · · · · · · · · · · · · · · · · · 4
Vehicle Installation - Antenna · · · · · · · · · · · · · · · · · · · 5
Vehicle Installation · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
In-Building Installation · · · · · · · · · · · · · · · · · · · · · · · · · 7
Powering Up a Wilson Amplifi er · · · · · · · · · · · · · · · · · · 8
Understanding the Amplifi er Lights · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · 9
About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · 10
Amplifi er Specifi cations · · · · · · · · · · · · · · · · Back Cover
Guide

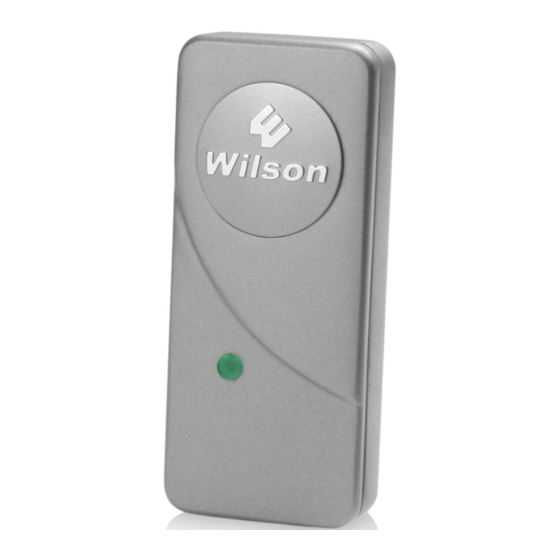

SIGNALBOOST
™
MobilePro
Dual-Band Wireless
Cellular / PCS Amplifi er
with Built-in Antenna
!
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifi er.
™
Wilson
®
Electronics, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wilson Electronics SIGNALBOOST MobilePro
Summary of Contents for Wilson Electronics SIGNALBOOST MobilePro
- Page 1 Warnings and Recommendations · · · · · · · · · · · · · · · · 9 About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · 10 Amplifi...
- Page 2 Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer.
-
Page 3: How It Works
Wilson Electronics manufactures a wide variety of outside antennas to help you customize your amplifi er for your specifi c application. Several are shown below. See your dealer or visit www.wilsonelectronics.com. -
Page 4: Vehicle Installation
Before Getting Started This guide will help you properly install Wilson’s SIGNALBOOST ™ MobilePro ™ Dual-Band Wireless Cellular/PCS Amplifi er. It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. -
Page 5: In-Building Installation
An in-building accessory kit is available from Wilson Electronics. It includes the window bracket antenna mount, and AC adapter, and a convenient travel case. Installation Diagram - In-Building MobilePro ™ Amplifier Outside Antenna (mounted on window) AC power supply Laptop USB Port... - Page 6 Installing a Wilson Outside Antenna on a Vehicle To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches away from any other antennas and free of obstructions. Follow the specifi c antenna installation instructions included with the outside antenna (sold separately except for certain kits).
- Page 7 Installing a Wilson MobilePro ™ Amplifi er in a Vehicle ™ The Wilson MobilePro Amplifi er is designed for installation on the dashboard of your vehicle, using the supplied adhesive bracket. Attach the bracket in a suitable location to the right of the steering wheel. NOTE: Be sure to select a location for the amplifi...
- Page 8 Installing a Wilson Outside Antenna in a Building Follow the specifi c antenna instructions included with the outside antenna (sold separately except for certain kits). These instructions assume that you are using a Wilson magnet-mount or mini magnet-mount antenna and the optional suction-cup window bracket. To receive the best signal, select a window on the side of your building where your outside signal is the strongest.
-
Page 9: Understanding The Amplifi Er Lights
Powering up the Wilson MobilePro ™ Amplifi er In a Vehicle Make sure the outside antenna cable is connected before powering up the amplifi er. Connect the mini-USB plug on the power cable to the amplifi er port marked by the USB symbol. -
Page 10: Warnings And Recommendations
Warnings and Recommendations Warning: Do not plug the amplifi er directly into the cell phone or cellular data card using an antenna adapter. It will damage the cell phone or cellular data card. Warning: Do not plug in the DC power supply until the outside antenna cable is attached to the amplifi... -
Page 11: About Wilson Electronics
About Wilson Electronics Wilson Electronics, Inc. has been a leader in the wireless communications industry for nearly 40 years. The company designs and manufactures amplifi ers, antennas and related components that signifi cantly improve cellular telephone signal reception and transmission in a wide variety of applications, both mobile and in-building. - Page 12 Amplifi er Specifi cations Dual Band 800/1900 MHz Specifi cations Model Number / Part Number 271220/801240 Connector SMA Female Impedance (input/output) 50 ohms Dimensions 5.2 X 2.7 X 1.2 inch or 13.2 X 6.9 X 3.1 cm Weight 3 oz or 83 Grams Frequency 824-894 MHz / 1850-1990 MHz Passband Gain (nominal)
