3. Commissioning

Commissioning involves the procedures required to ensure that the height of an
electric height-adjustable desk can be adjusted with the COMPACT control unit.
Requirements for commissioning:
• The COMPACT control unit must be mounted (as described in section 2)
• The table legs for adjusting the desktop must be mounted
Danger: only qualified technicians may commission the control unit.
Qualified technicians have the necessary electrical engineering training
and are familiar with this user manual.

3.1 COMPACT sockets

The COMPACT control unit (COMPACT-3 can drive three motors) has the following
sockets:
1
2
S

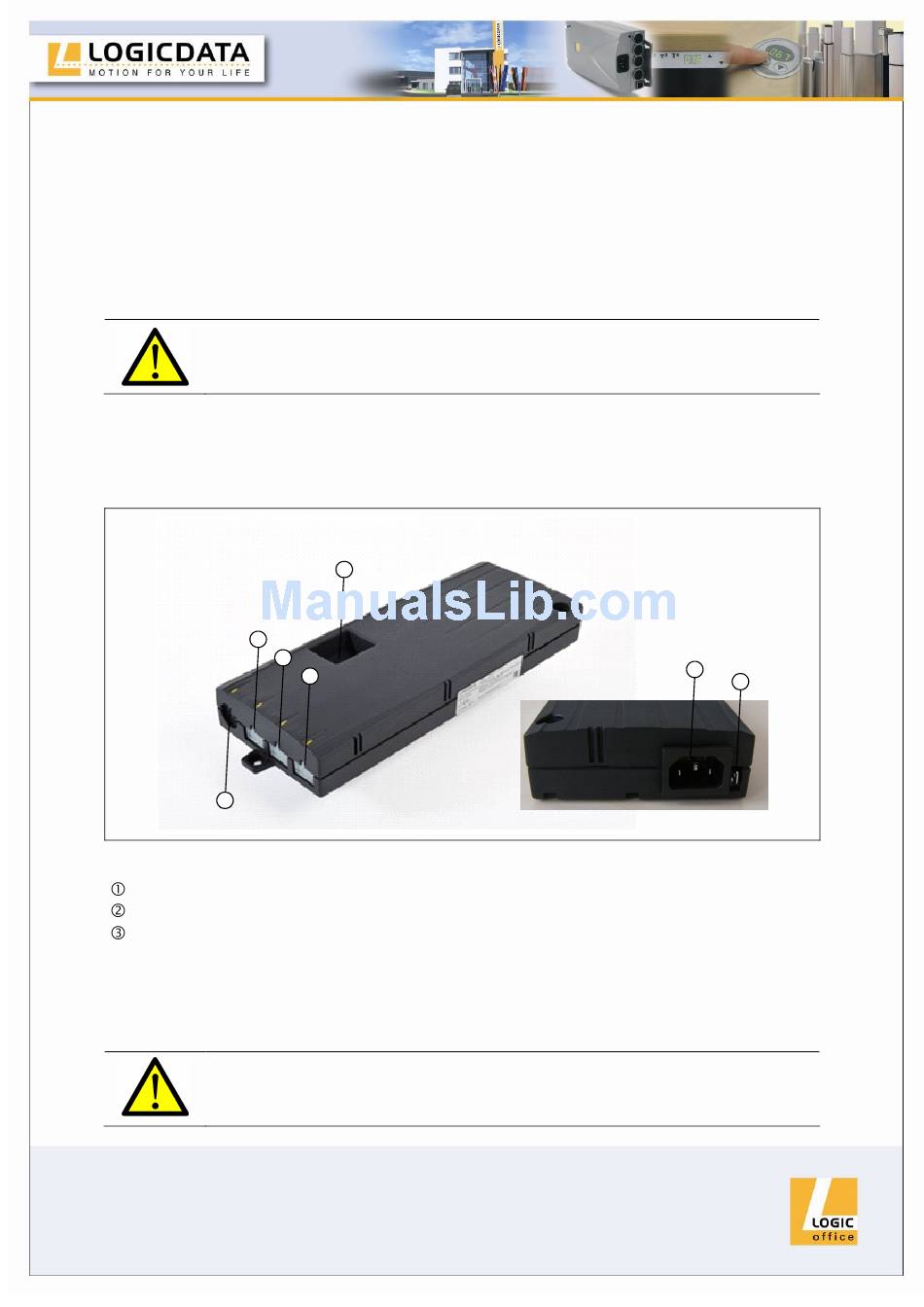

Figure 4: Sockets
Motor socket 1 (M1)
Motor socket 2 (M2)
Motor socket 3 (M3)
S Handswitch socket (HS)
P Mains socket
F Functional earth, cable lug for earthing the desk frame (6,3x0,8mm lug)
D Logic Connector DATA for sensors and cascading
Danger: it is not allowed to connect self constructed products to
LOGICDATA motor controls. To prevent damage of the unit, use only
components suitable for LOGICDATA motor controls.
D
3
