4.3.4 Plug detection

The COMPACT control unit can detect whether a motor is plugged into the relevant
socket. In addition, the control unit detects whether a motor has been replaced (this
function depends on the motor used).
If a motor is missing or if it is replaced, the COMPACT will click three times.
Additionally the corresponding error code will be displayed if the handswitch is
equipped with a display (For the error code list, see page 33).
To rectify the plug detection error, a manual reset is necessary (see page 20).
In addition to the plug detection, the COMPACT is able to auto-detect the number of
drives. This feature will be activated every time a motor is connected to or
disconnected from the COMPACT, also at the first use of the control unit. To operate
the COMPACT after such an event again, go on as shown below:
1.
2.
3.
4.
5.
Note: the functionality of the auto-detection is depending on the motor
group settings in the software parameters of the COMPACT. Please
contact LOGICDATA for further information!
Note: a handswitch with display is necessary to show the error code.
Possible situations:
• A motor is connected to the COMPACT
• A motor is disconnected from the COMPACT
• First use of the COMPACT

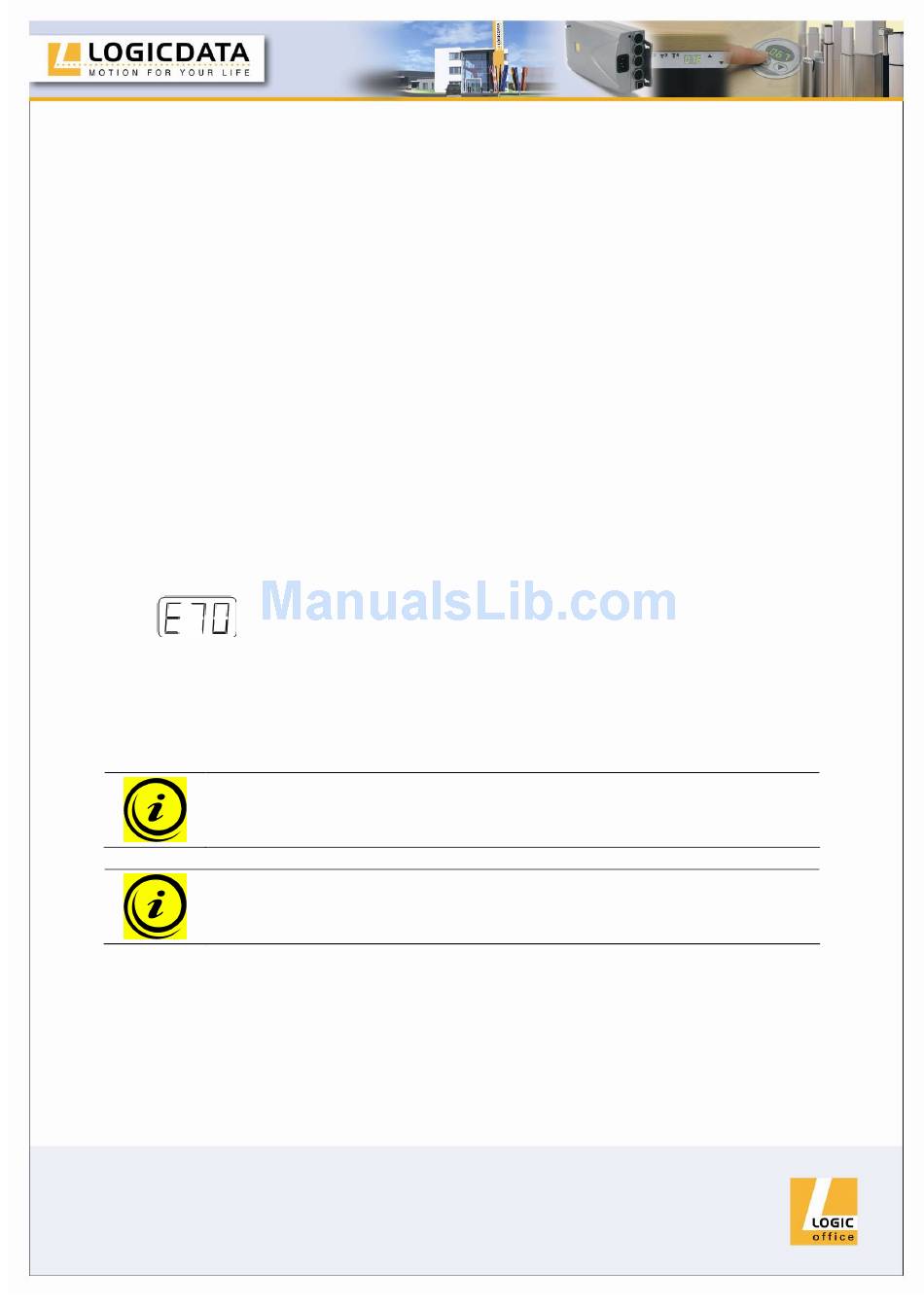

The error code E70 is shown on the display.
Disconnect the mains supply of the COMPACT and
wait at least 5 seconds.
Connect the mains supply of the COMPACT again.
Make a manual reset (see page 20)
Page 25 / 43
