2. COMPACT installation instructions

Mount the COMPACT control unit on the underside of the desktop. You will need the
following tools for mounting:
• Cross-tip screwdriver
• Pencil
• Drill (for drilling holes)
Caution: the power cord must be unplugged while the COMPACT
control unit is being mounted.
To mount the COMPACT control unit, proceed as follows:
Note: we recommend using the drill template to help with mounting. You
will find the template in section 6.6. If you do not wish to use it, please
follow the mounting instructions carefully.
1. Position the control unit where you want it under the desktop.
2. Mark the drill holes with a pencil.

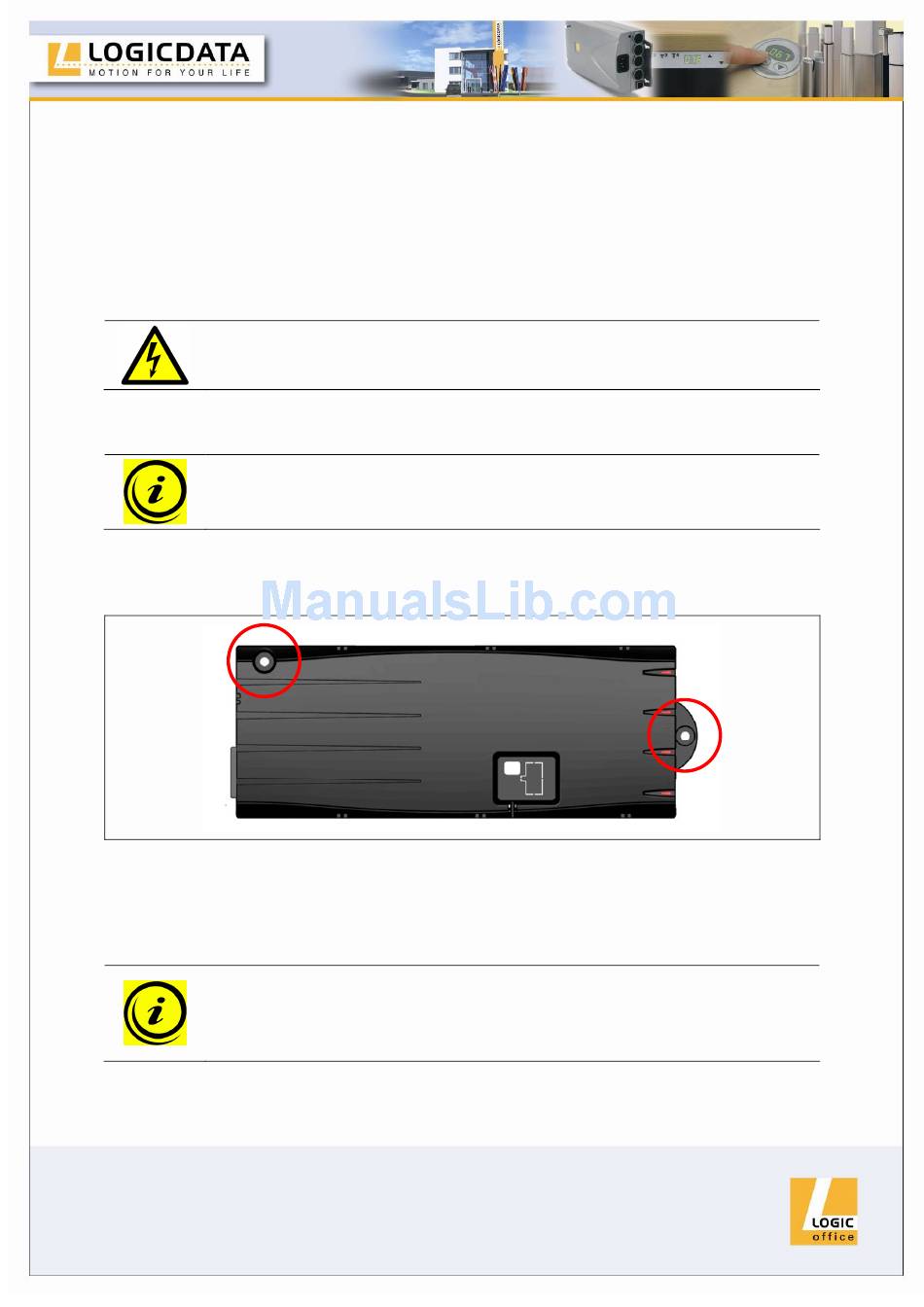

Figure 2: Step 2
3. Pre-drill these two holes.
4. Attach the control unit with 2 screws by using these two holes.
5. Tighten the two screws properly.
Note: LOGICDATA recommends lens head screws DIN7981C 4,8xL
with a lens head diameter of 9,5mm. The length L of the screw should fit
to the used desktop. The tightening torque depends on the wood, but
2Nm shall not be exceeded.
Page 11 / 43
