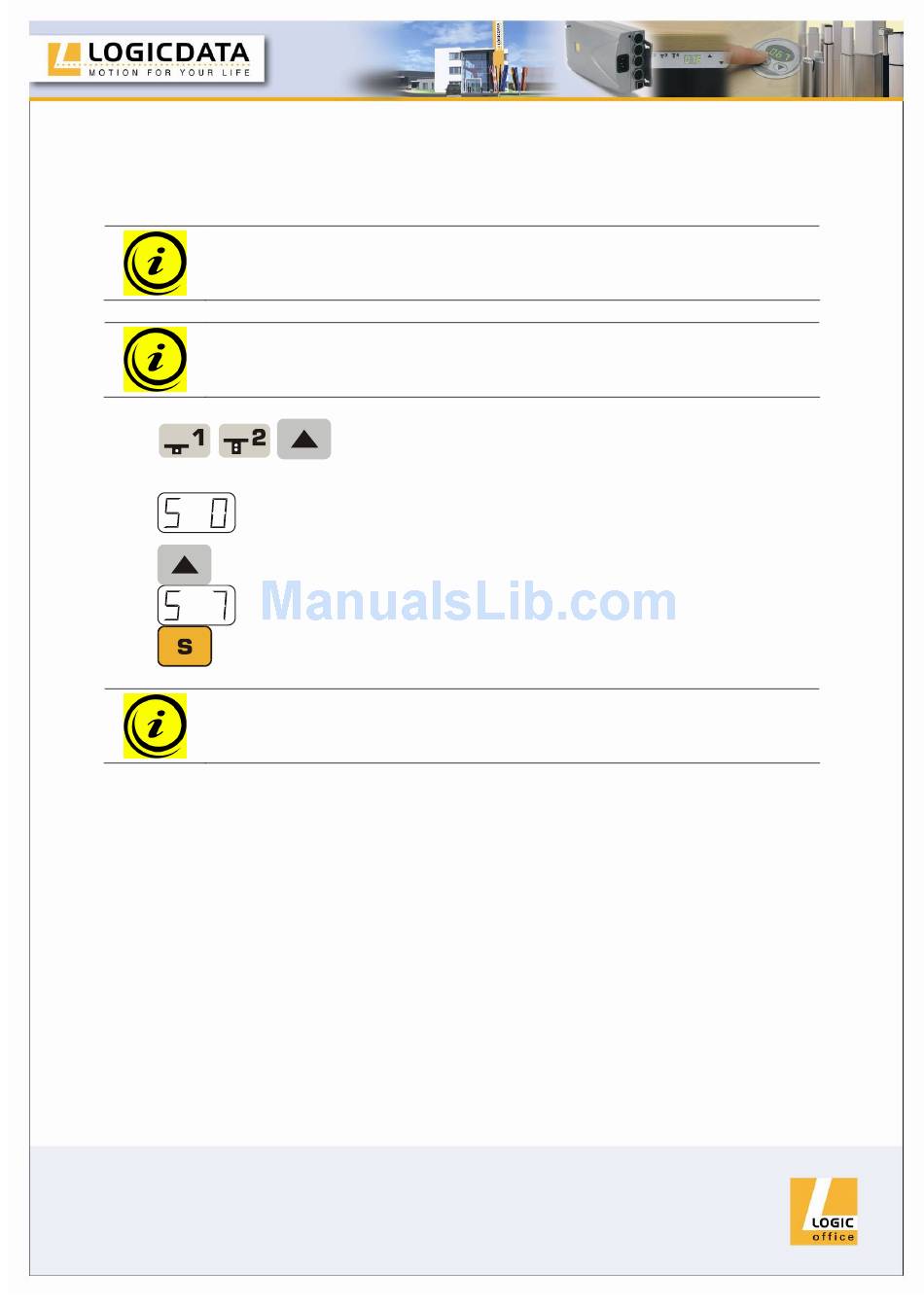

4.2.5 Enabling limit position calibration

The service technician enables limit position calibration during the commissioning
procedure.
Note: availability of the S 7 function depends on the parameters set for
the control unit. A handswitch with display and memory keys is
necessary.
Note: this function is only available for motor group 1!
1.
2.
3.
Note: after starting the menu, the display will read S and any number,
for instance S 0. The number depends on the parameters of the control
unit.
Press the keys memory position 1, 2 and desktop up
at the same time. Keep the key combination pressed
for about 10 seconds. Then release the keys.
The display will read S and any number, for instance
S 0.
Press the desktop up key until the display reads S 7.
The display will show S 7.
Press the memory key.
