Warning!
Operation of the
inverter without a
proper ground
connection may
result in an
electrical safety
hazard.

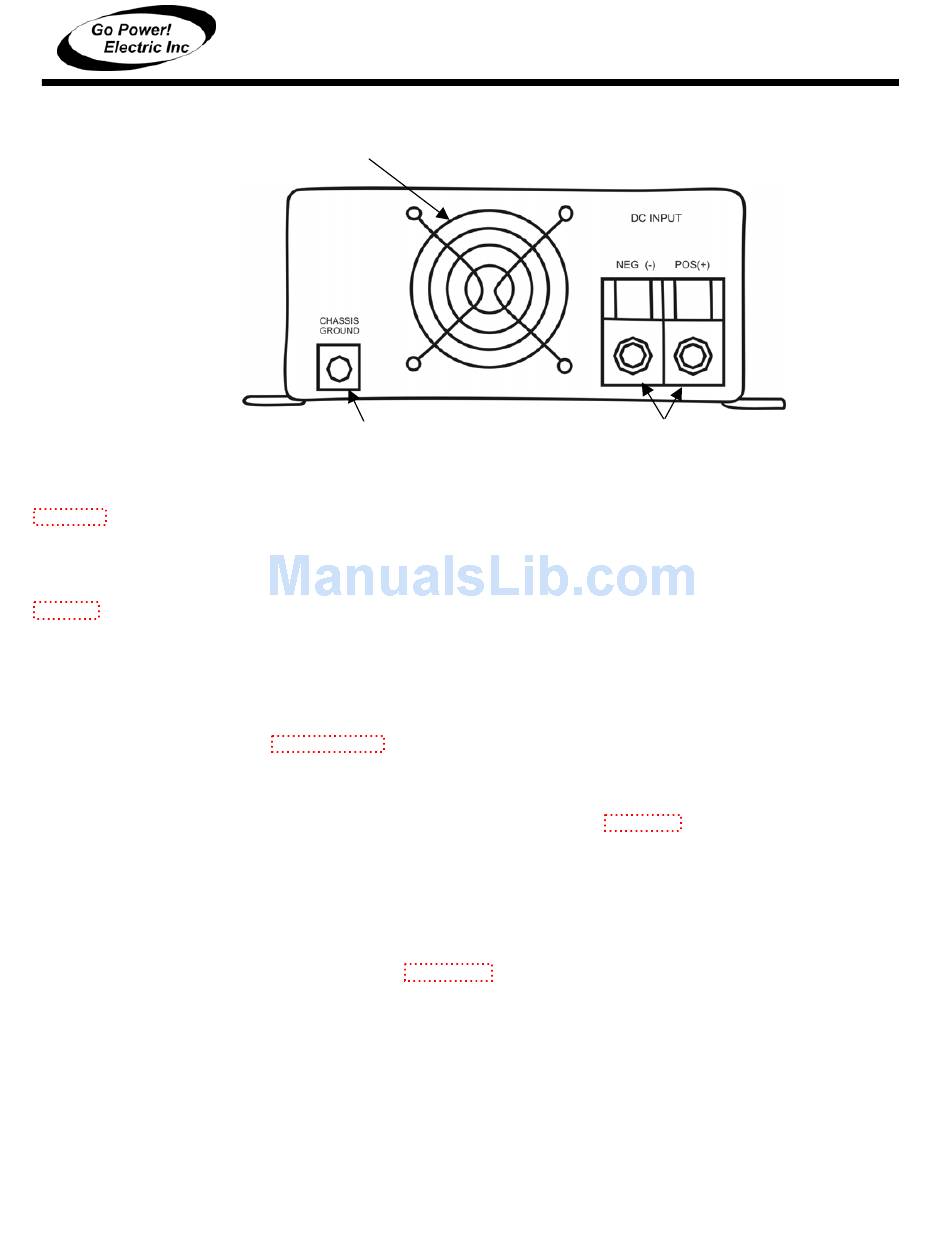

3.6 Rear view: GP-SW600
a. Ventilation Port
c. Chassis Ground Lug
a) Ventilation port:
Do not obstruct, allow at least one inch for airflow.
b) Battery terminals:
Connect to 12 V battery or other 12 V power source. [+] is positive
[-] is negative. Reverse polarity connection will blow the internal fuse and may
damage inverter permanently.
c) Chassis Ground:
Ground to vehicle chassis using # 8 AWG wire.

4. Installation

4.1 Where to install
The power inverter should be installed in a location that meets the following
requirements:
Caution!
Do not connect this inverter and another AC source (generator or utility power) to the AC
wiring or AC loads at the same time. Doing so will destroy the inverter and void the
warranty, regardless of the inverter's on or off status. If you are using more than one AC
source for the AC wiring or AC loads, it is highly recommended that you install an
automatic transfer switch (GP-TS), available from Go-Power Electric Inc.
a) Dry - Do not allow water to drip or splash on the inverter.
b) Cool - Ambient air temperature should be between 0°C and 40°C (the cooler the
better).
c) Ventilated - Allow at least two inches of clearance around the inverter for airflow.
Ensure the ventilation openings on the rear and bottom of the unit are not
obstructed.
d) Safe - Do not install the inverter in the same compartment as batteries, or in any
compartment capable of igniting flammable liquids such as gasoline.
e) Inverter should be located within 10 feet of the batteries.
Go Power! GP-SW3000, GP-SW2000, GP-SW1000
b. Battery Terminals
and GP-SW600
Inverter Owner's Manual
11
