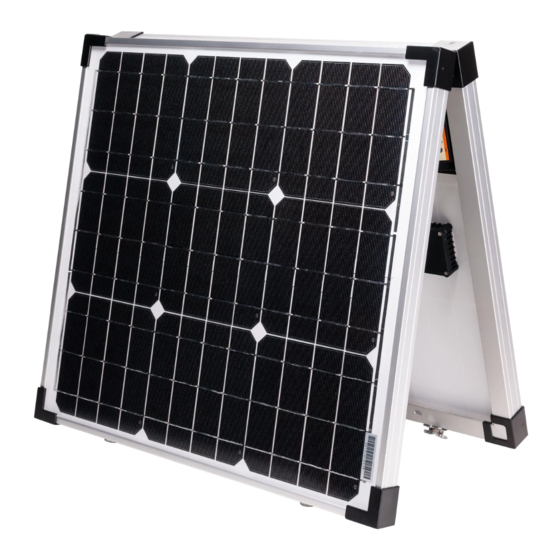

- Page 1 PORTABLE SOLAR KITS User Manual GP-PSK-80 GP-PSK-120 © 2016 Go Power! By Carmanah Technologies Worldwide Technical Support and Product Information gpelectric.com ® Carmanah Technologies Corporate Headquarters 250 Bay St, Victoria, BC Canada V9A 3K5 Tel: 1.866.247.6527 73807_MANUAL_GP-PSK_RevH powered by...
-
Page 3: Table Of Contents
1. CONTENTS ® GENERAL INFORMATION ..................4 2.1 WARNINGS ....................4 FEATURES AND ACCESSORIES ................5 3.1 ADDITIONAL ACCESSORIES SOLD SEPARATLEY ........5 INSTALLATION ......................6 OPERATION ....................... 6 5.1 CONTROLLER POWER UP ................6 5.2 SETTING THE BATTERY CHARGING PROFILE .......... 7 5.3 BATTERY CHARGING PROFILE CHART ............ -
Page 4: General Information
2.GENERAL INFORMATION Welcome to the Go Power! Portable Solar Kit Installation Guide. Please read all instructions contained within this manual to gain a full understanding of how to install and use this product. Please visit gpelectric.com for the most current version of this manual. -
Page 5: Features And Accessories
® FEATURES AND ACCESSORIES 3.1 ADDITIONAL ACCESSORIES SOLD SEPARATELY Visit gpelectric.com for product details. GP-PSK-X30 GP-PSK-7PIN 30’ Extension Cable 7 Pin Trailer Plug Adapter - Use your existing trailer plug to - Park your RV in the shade and place access your battery for charging your solar panel in the sun using this extension cable. -
Page 6: Installation
® 4.INSTALLATION 1. Locate a sunlit area, free from overhanging branches or obstructions. 2. Remove solar panel kit from carrying case. 3. Unclip the two latches on the side of the unit and fold the two panels outward. Extend the two support legs to their maximum length and lock in position. 4. -
Page 7: Setting The Battery Charging Profile
® OPERATION 5.2 SETTING THE BATTERY CHARGING PROFILE To select the battery charging profile, press and hold the B Button. This will cause the current battery type to flash. Then, press the B Button to toggle through the profile options: Sealed/Gel, AGM or Flooded. -
Page 8: Maximum Power Boost Technologytm
® OPERATION 5.4 MAXIMUM POWER BOOST TECHNOLOGY™ Maximum Power Boost Technology™ (MPBT) allows you to override the normal charging algorithm of the solar controller. MPBT is designed to be used before the end of the day, if you know you will require many loads through the night. This feature can also be used when you have just installed the solar controller, to put batteries on a boost charge up to 14.4V (Flooded and AGM) or 14.1V (Sealed/Gel) right away. -
Page 9: Errors
® OPERATION Push the B Button to show the battery state of charge (shown as a percentage). Icons Displayed: Battery SOC, Percent Symbol (%) 5.6 ERRORS Over Voltage If the GP-PWM-10 experiences a battery over voltage (15.5V), the controller will stop operating and the display will begin to flash with all icons. -
Page 10: Display Symbols
® 6.DISPLAY SYMBOLS SYMBOL INDICATOR FOR: Day Time: PV Charge Current Night Time Battery Voltage Battery State of Charge SEALED Sealed/Gel Battery Type Selected AGM Battery Type Selected FLOODED Flooded Battery Type Selected USB Charger On (when charger is off, no symbol will show) BOOST Controller tries to keep battery at Boost Voltage or higher Battery Voltage is lower than 11.0V... -
Page 11: Usb Charging
® 7.USB CHARGING The GP-PWM-10 controller offers a standard USB connector for delivering 5V to small mobile appliances such as cell phones, tablets and small music players. This charging port is capable of supplying up to 800 mA of current. Icons Displayed: USB symbol (appears only when port is active) The controller disables the USB charger automatically if the battery voltage drops below 11.0V. -
Page 12: Solar Controller Specifications
® SPECIFICATIONS 8.2 SOLAR CONTROLLER SPECIFICATIONS DESCRIPTION VALUE Nominal System Voltage Max. Solar Array Current Battery Voltage Range 6 - 15.5V Max. Solar Voltage Operating Consumption (display backlight on) 15mA Operating Consumption (display backlight off) Sealed/ Gel Flooded Bulk/Absorption Voltage (77°F / 25°C), 1 - 2h / Day 14.1V 14.4V 14.4V... -
Page 13: Troubleshooting
® FREQUENTLY ASKED QUESTIONS Q3. My voltmeter shows a different reading than the GP-PWM-10 display A. The meter value on the GP-PWM-10 display is an approximate reading intended for indication purposes only. There is an approximate 0.1 volt inherent error present that may be accentuated when compared with readings from another voltmeter. There may be a slight difference between the battery voltage displayed on the GP-PWM-10 display and the battery voltage measured at the battery terminals. - Page 14 4. Blown diode in solar 4. Disconnect array wires from the faulty. Contact the Go Power! module when two or more controller. Take a voltage reading between Technical Support team as listed in modules are connected in the positive and negative array wire.
-
Page 15: Limited Warranty
11.LIMITED WARRANTY Go Power! warrants the solar panel of the Portable Solar Kit for 25 years, 1 year for the cable and components and 5 years for the solar controller. This warranty is valid against defects in materials and workmanship. It is not valid against defects resulting from, but not limited to: •...
