2.4 - Display brightness
To adjust the display brightness, press the
main display. BRI appears on the display with the current brightness setting. Use the
and buttons to adjust the LED backlight, and then press
3

WIRING

3.1 - Pinouts
A
D
3.2 - Wire the analog input module
See 3.1D
IMPORTANT:
The analog input board for the PRO–CTR has adjustable headers for Sensor Type,
Noise Filtering, and Excitation Voltage. Unless you specifi ed otherwise when you or-
dered your PRO–CTR, the headers will be set to:
› Sensor Type = NPN (for all counters)
› Noise Filtering = Off (20kHz)
› Excitation Voltage = 24V
If you need to change these settings, please follow the instructions in Section 4
BEFORE proceeding to wiring your sensor(s).
Copyright © 2016 Defi ne Instruments
B C
E
F
and buttons together from the
Key

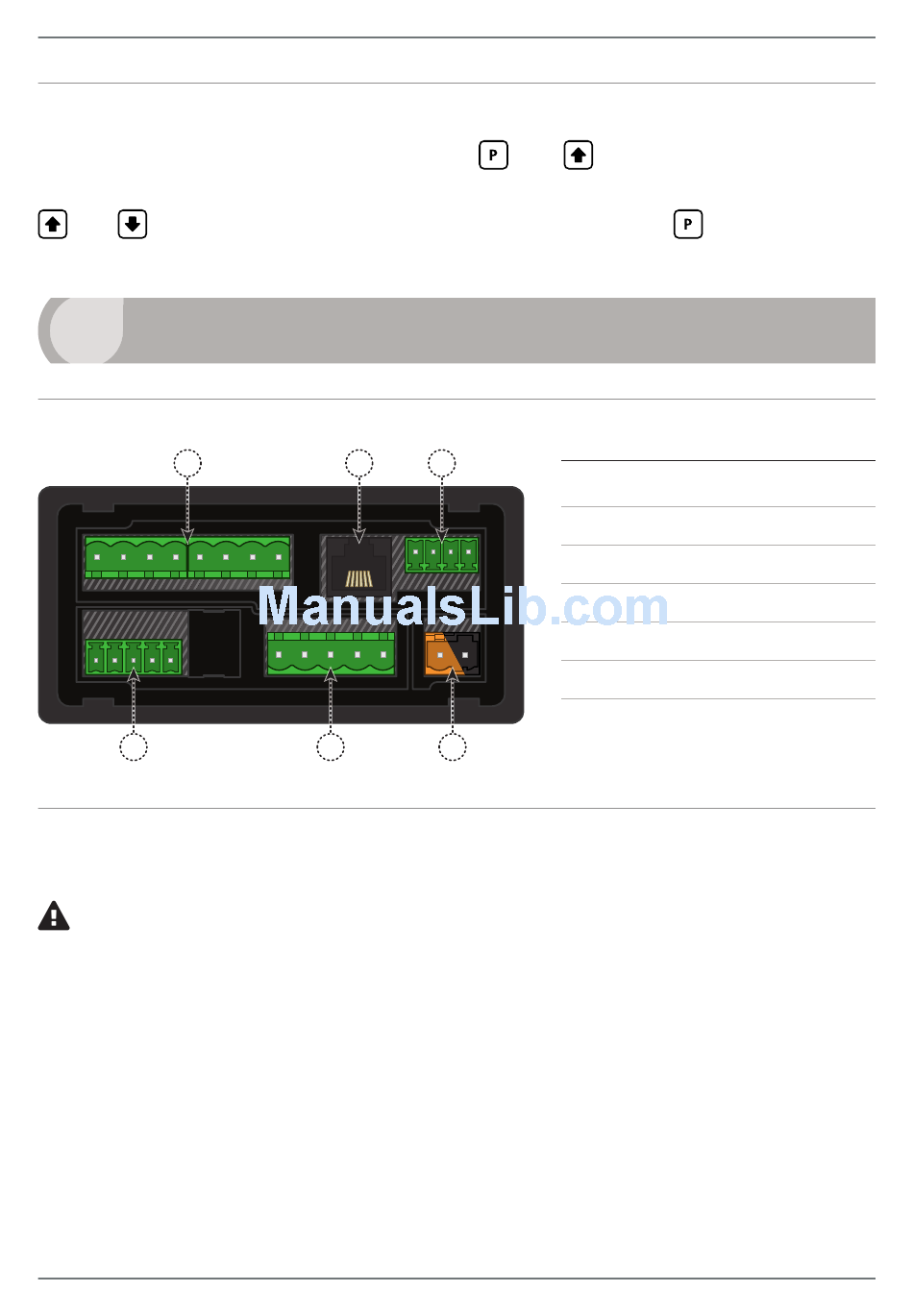

3.1A Relay Output (See 3.3)
3.1B Serial Port (See 3.5)
3.1C Analog Output (See 3.4)
3.1D Analog Input (See 3.2)
3.1E Function Pins (See 3.6)
3.1F Power Supply HV/LV
(See 3.7)
PRO-CTR-MAN-16V03 (0128)
5
to fi nish.
