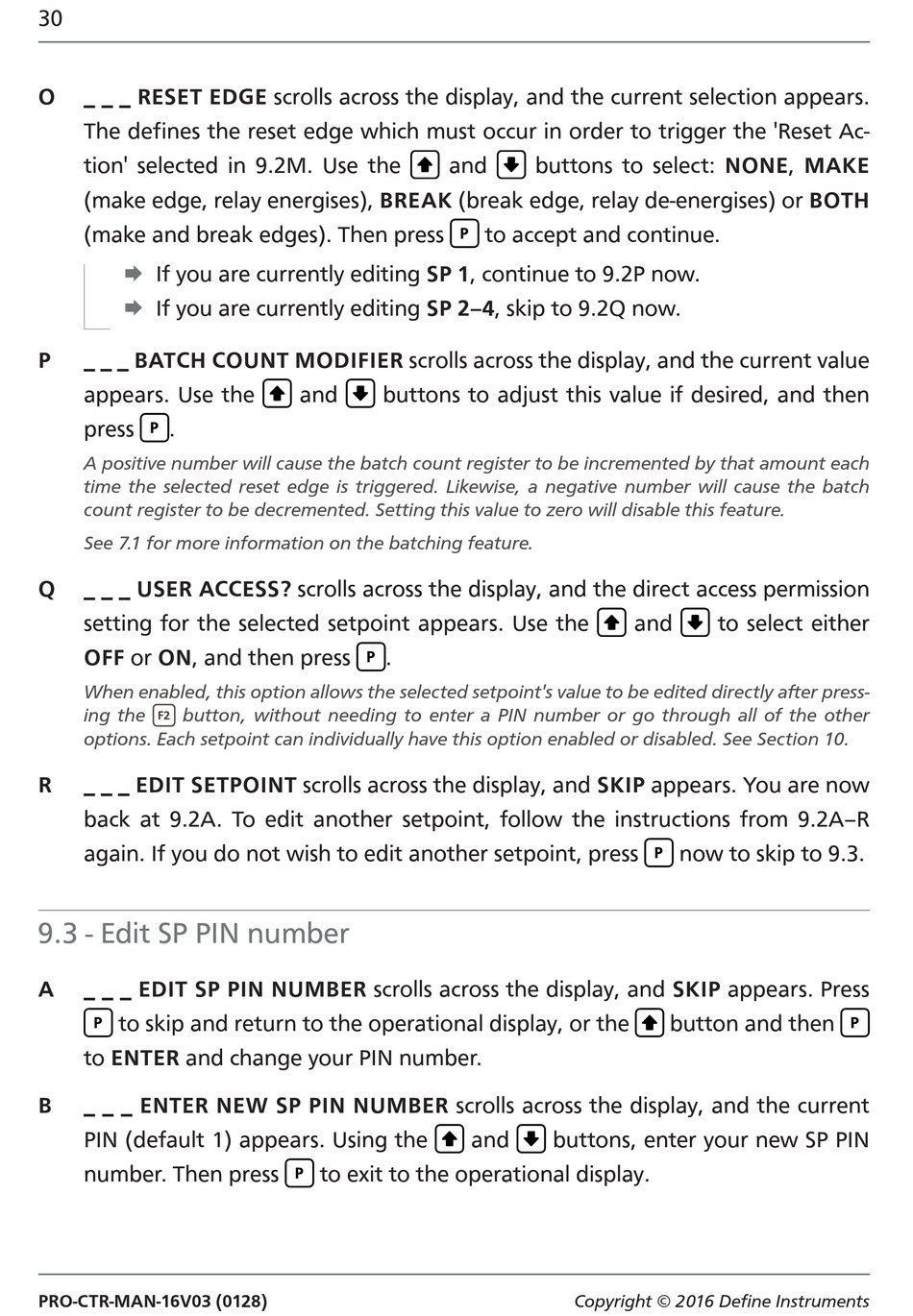

30
O
_ _ _ RESET EDGE scrolls across the display, and the current selection appears.
The defi nes the reset edge which must occur in order to trigger the 'Reset Ac-
tion' selected in 9.2M. Use the
(make edge, relay energises), BREAK (break edge, relay de-energises) or BOTH
(make and break edges). Then press
If you are currently editing SP 1, continue to 9.2P now.
If you are currently editing SP 2–4, skip to 9.2Q now.
P
_ _ _ BATCH COUNT MODIFIER scrolls across the display, and the current value
appears. Use the
press
.
A positive number will cause the batch count register to be incremented by that amount each
time the selected reset edge is triggered. Likewise, a negative number will cause the batch
count register to be decremented. Setting this value to zero will disable this feature.
See 7.1 for more information on the batching feature.
Q
_ _ _ USER ACCESS? scrolls across the display, and the direct access permission
setting for the selected setpoint appears. Use the
OFF or ON, and then press
When enabled, this option allows the selected setpoint's value to be edited directly aft er press-
ing the
button, without needing to enter a PIN number or go through all of the other
options. Each setpoint can individually have this option enabled or disabled. See Section 10.
R
_ _ _ EDIT SETPOINT scrolls across the display, and SKIP appears. You are now
back at 9.2A. To edit another setpoint, follow the instructions from 9.2A–R
again. If you do not wish to edit another setpoint, press
9.3 - Edit SP PIN number
A
_ _ _ EDIT SP PIN NUMBER scrolls across the display, and SKIP appears. Press
to skip and return to the operational display, or the
to ENTER and change your PIN number.
B
_ _ _ ENTER NEW SP PIN NUMBER scrolls across the display, and the current
PIN (default 1) appears. Using the
number. Then press
PRO-CTR-MAN-16V03 (0128)
and
and
buttons to adjust this value if desired, and then
.
to exit to the operational display.
buttons to select: NONE, MAKE
to accept and continue.
and
and
buttons, enter your new SP PIN
Copyright © 2016 Defi ne Instruments
to select either
now to skip to 9.3.
button and then
