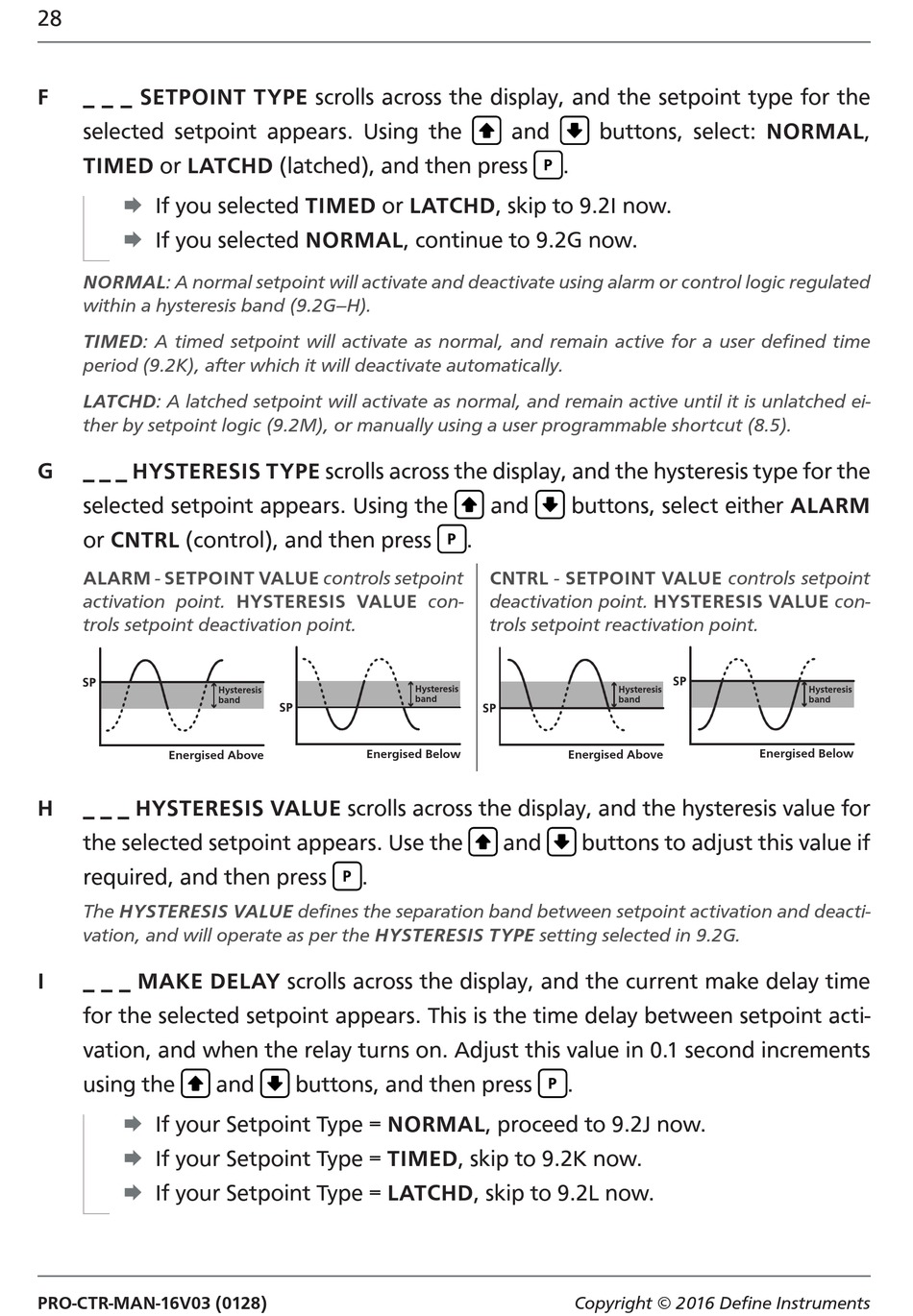

28
F
_ _ _ SETPOINT TYPE scrolls across the display, and the setpoint type for the
selected setpoint appears. Using the
TIMED or LATCHD (latched), and then press
If you selected TIMED or LATCHD, skip to 9.2I now.
If you selected NORMAL, continue to 9.2G now.
NORMAL: A normal setpoint will activate and deactivate using alarm or control logic regulated
within a hysteresis band (9.2G–H).
TIMED: A timed setpoint will activate as normal, and remain active for a user defi ned time
period (9.2K), aft er which it will deactivate automatically.
LATCHD: A latched setpoint will activate as normal, and remain active until it is unlatched ei-
ther by setpoint logic (9.2M), or manually using a user programmable shortcut (8.5).
G
_ _ _ HYSTERESIS TYPE scrolls across the display, and the hysteresis type for the
selected setpoint appears. Using the
or CNTRL (control), and then press
ALARM - SETPOINT VALUE controls setpoint
activation point. HYSTERESIS VALUE con-
trols setpoint deactivation point.
Energised Above
H
_ _ _ HYSTERESIS VALUE scrolls across the display, and the hysteresis value for
the selected setpoint appears. Use the
required, and then press
The HYSTERESIS VALUE defi nes the separation band between setpoint activation and deacti-
vation, and will operate as per the HYSTERESIS TYPE setting selected in 9.2G.
I
_ _ _ MAKE DELAY scrolls across the display, and the current make delay time
for the selected setpoint appears. This is the time delay between setpoint acti-
vation, and when the relay turns on. Adjust this value in 0.1 second increments
using the
If your Setpoint Type = NORMAL, proceed to 9.2J now.
If your Setpoint Type = TIMED, skip to 9.2K now.
If your Setpoint Type = LATCHD, skip to 9.2L now.
PRO-CTR-MAN-16V03 (0128)
Hysteresis
band
Energised Below
.
and
buttons, and then press
and
.
and
buttons, select either ALARM
.
CNTRL - SETPOINT VALUE controls setpoint
deactivation point. HYSTERESIS VALUE con-
trols setpoint reactivation point.
Hysteresis
band
Energised Above
and
buttons to adjust this value if
.
Copyright © 2016 Defi ne Instruments
buttons, select: NORMAL,
Hysteresis
band
Energised Below
Hysteresis
band
