WIRING

BEFORE YOU BEGIN WIRING, ensure that the unit is switched off and the power
supply is disconnected.

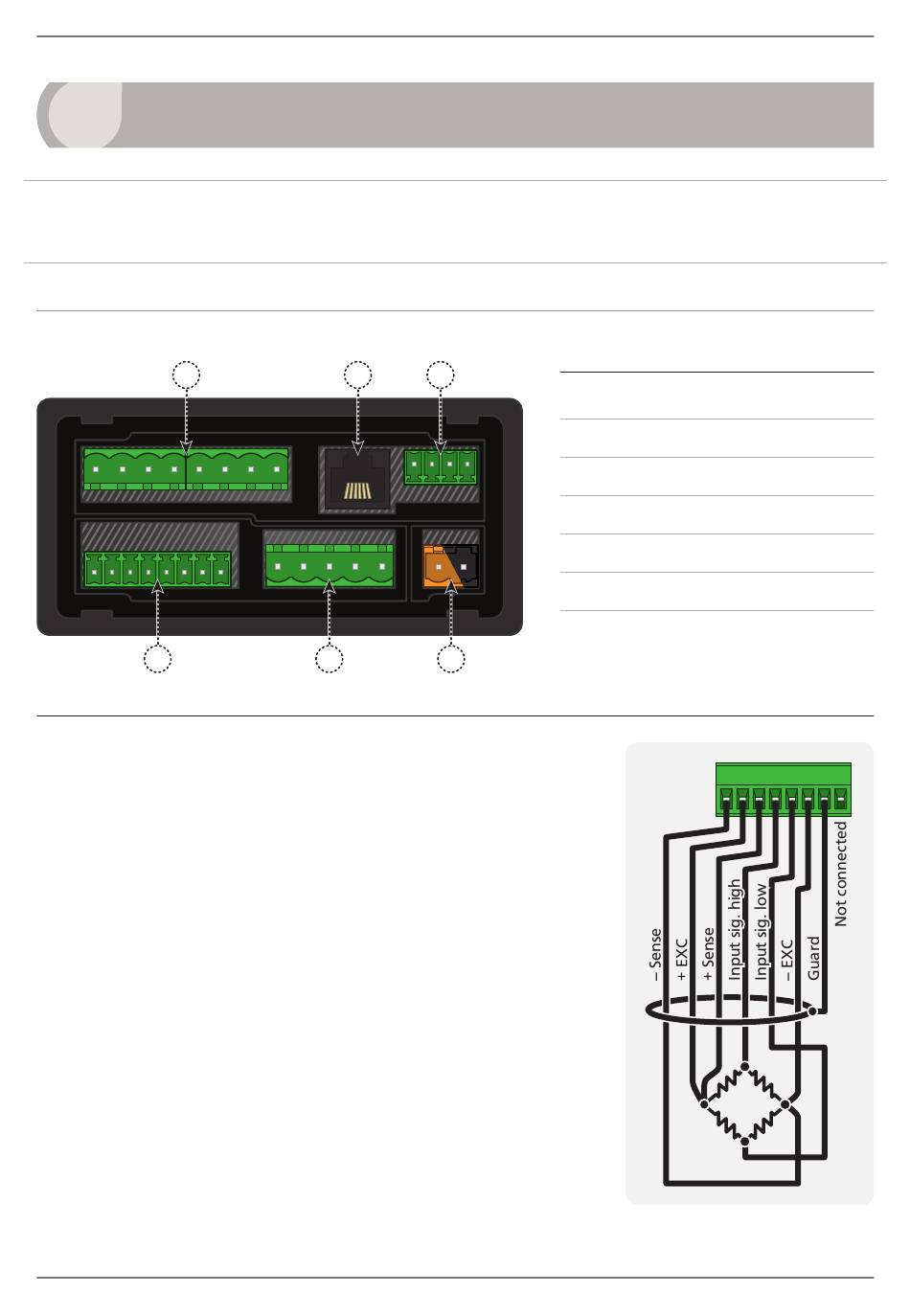

4.1 - Pinouts
A
D
4.2 - Wire the strain gauge input module
Wire your loadcell input module as shown in the dia-
gram. This input module is pre-calibrated for 0–10,000
counts full scale with a 2.000mV/V load cell sensor.
See 4.1D
PRO-WEI100-MAN-19V01 (0225)
B C
E
F
Key
4.1A Relay Output (See 4.3)
4.1B Serial Port (See 4.5)
4.1C Analog Output (See 4.4)
4.1D Analog Input (See 4.2)
4.1E Function Pins (See 4.6)
4.1F Power Supply HV/LV
(See 4.7)
