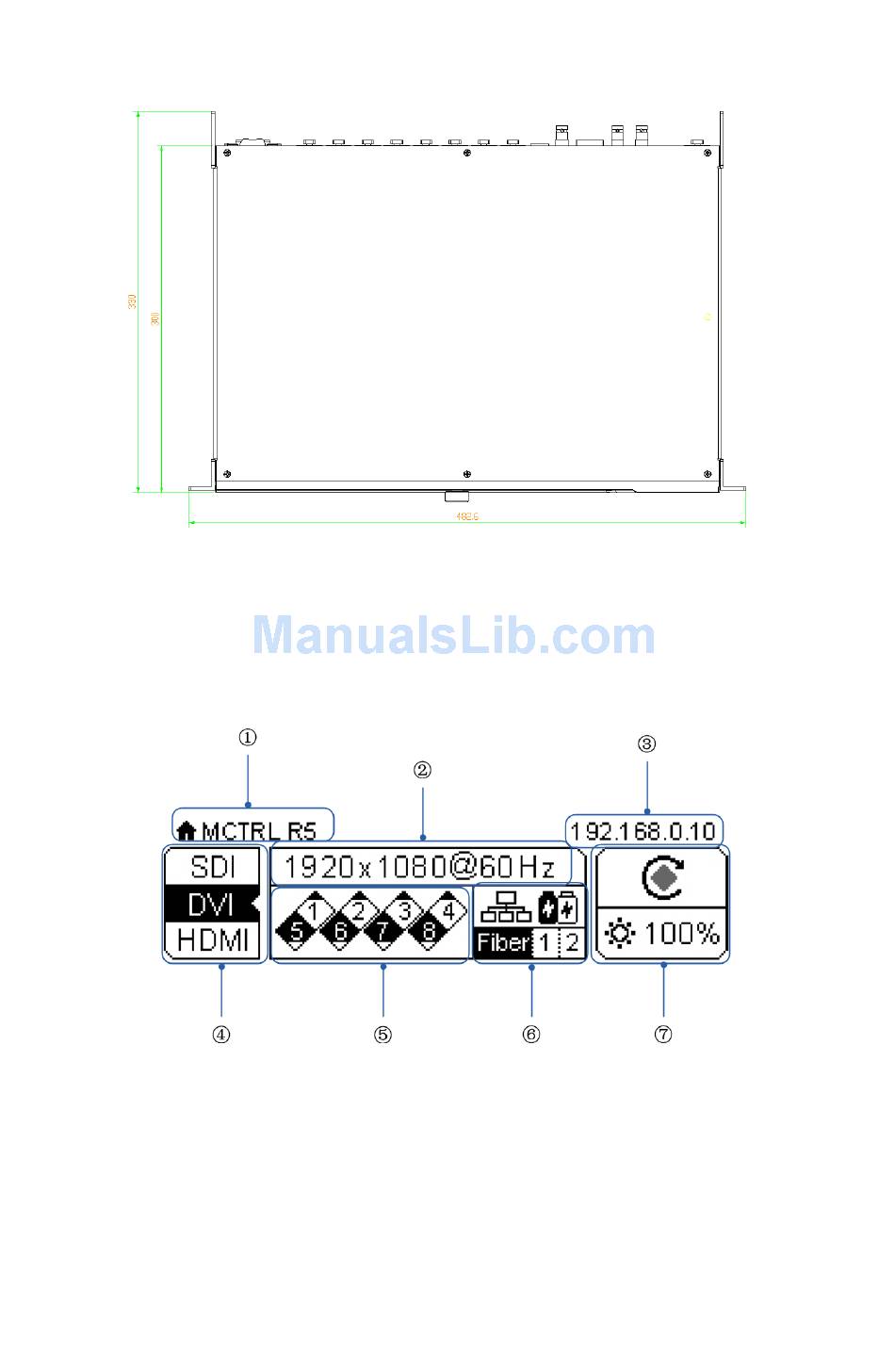

(Unit: mm)

4 Main Interface

After the controller is started up, following interface will be displayed on the screen:
① : Device name;
② : Resolution and frame frequency of the currently connected input source.
③ : IP address;
④ : Specify video connection status and are the supported video source types by the
controller.
⑤ : Indicate port connection status. Black indicates that port connection is valid
and is in control status; white indicates that no port connection is available or port
connection is invalid; upper coner mark indicates that port connection is valid and is
in redundant status..
⑥、⑦ : Status display. Meaning of each icon is shown below:
