the set angle degree of Port 1.).
Screen rotation: specifies the screen rotates for the set angle degree and takes LED
display screen center as the rotation center.

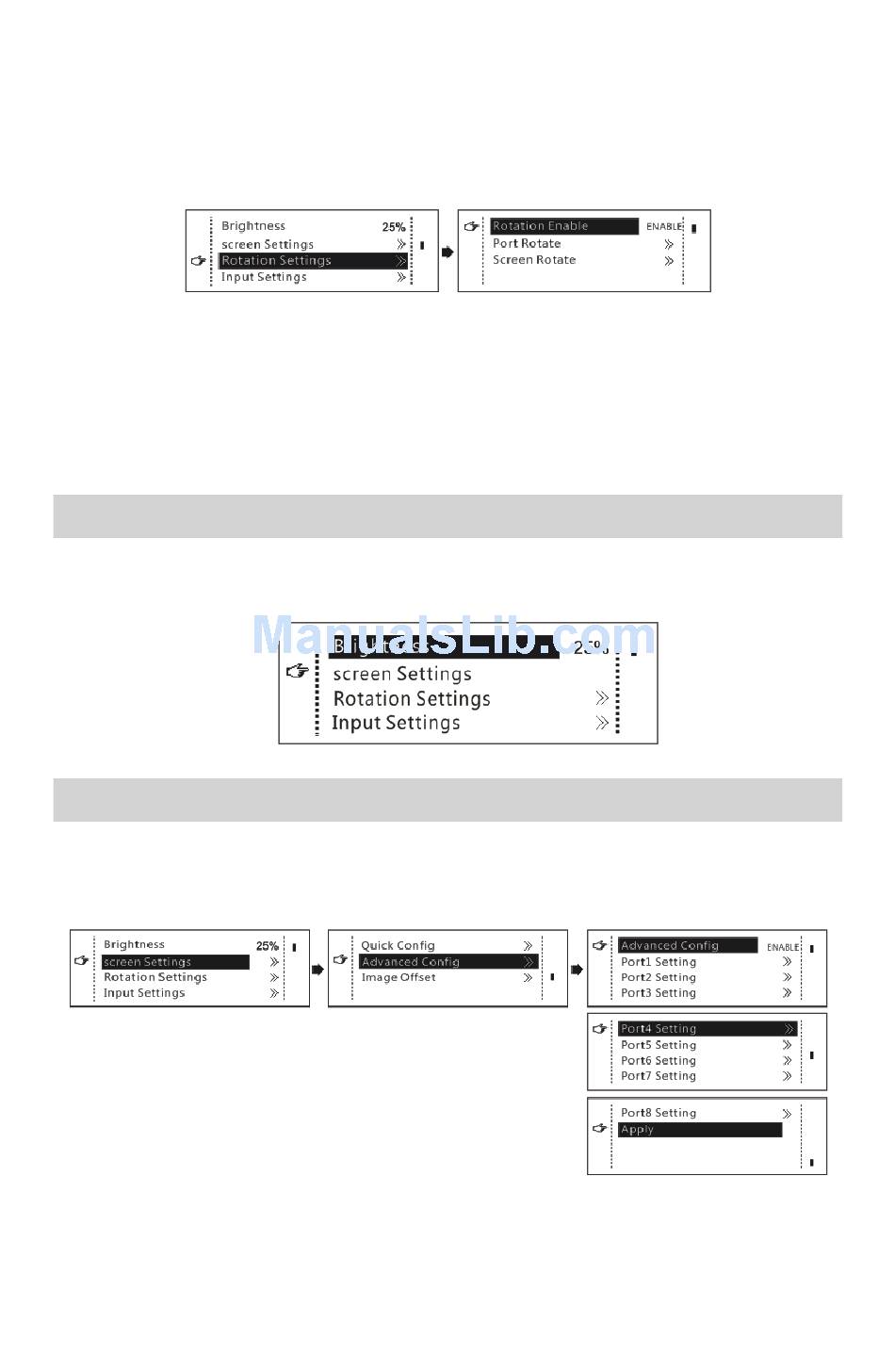

Rotation setting steps are shown as below:
1) Press the knob to enable the rotation function;
2) Perform selection between the port and screen rotation, and set parameters such
as rotation stepping and angle degree;
3) Save parameters. If parameters are not saved, the set parameters are invalid.
4) If the device is restarted caused by power failure, previous rotation effects cannot
be recovered.
Note: Hardware configuration is required to be done before rotation setting.

Step 4 Brightness adjustment

Go back to the main menu, press the knob, select corresponding values of brightness
adjustment menu, and then rotate the knob to adjust brightness values.

Screen configuration

Except quick screen configuraiton, advanced configuration and image offset
configuration can also be done in screen configuraiton.
Advanced configuration
Select Yes and then enter the advance screen configuarion interface. Respectively set
loading capacity for each Ethernet port after selecting startup, and settings include
cabinet rows, cabinet columns, horizontal offset, vertical offset, and screen wiring
method.
