M C T R L R 5 Us e r M an u a l
Image offset
Horizontal offset and vertical offset of devices' loading image can be set.

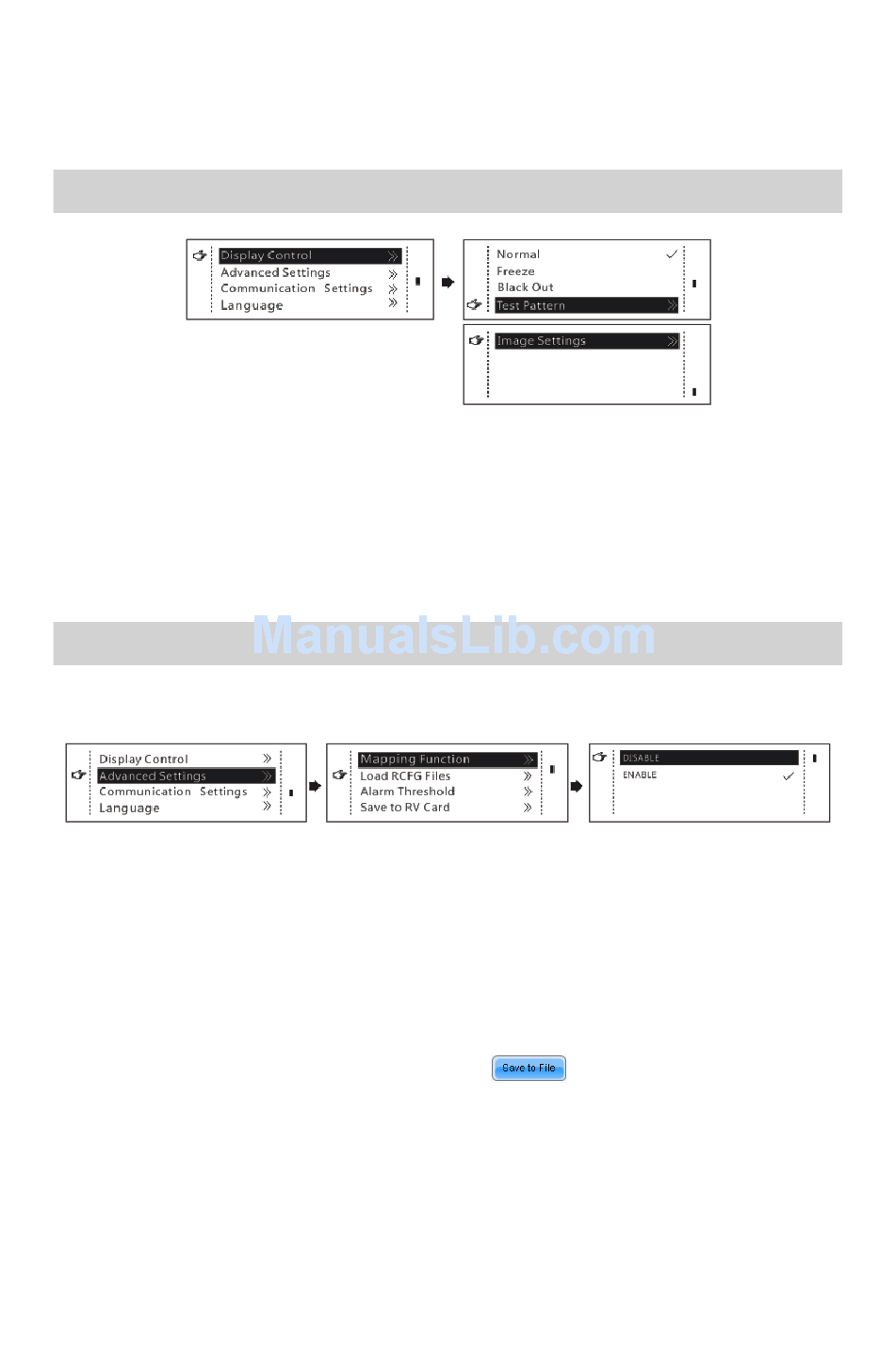

Image settings

Normal display: Normally displays contents of current inputs.
Image freezing: Freezes currently displayed contents.
Image black out: Dispaly screen does not display normally and is black out.
Test image: Inclues eight types including full color and line pattern.
Image quality adjustment: Set brightness, color temperature, and Gamma value
for red, green, and blue of images to satisfication as required, and then save the
parameters.

Advanced settings

Advanced setting includes setting options of multiple main functions, and the
following pictures explain each function in details.
Mapping
When mapping function is enabled, each cabinet displays its port number and
cabinet number, and users can visually get the wiring method and loading condition.
Configuration files of connected cabinets
Connect to PC, run NovaLCT-Mars on the PC, and then impor t the saved
configuration files of cabinets.
1) Save cabinet's configuration files
After configuration of the receiving card, click to save configuration files of
cabinets to PC's local files.
