M C T R L R 5 Use r M a ua l
2 Signal Connection

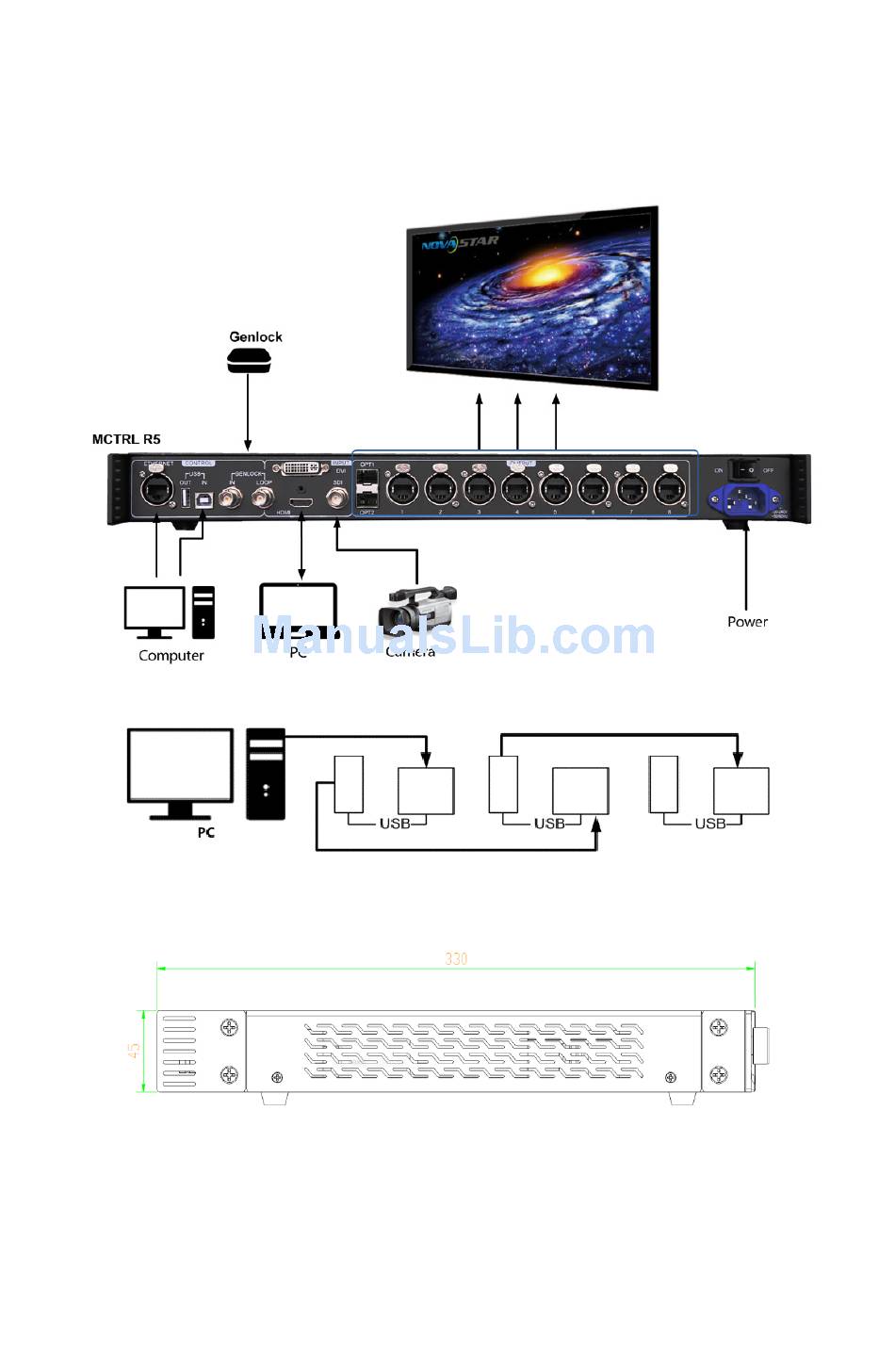

Connect the required hardware device by referring to the following diagram and
interface introductions in previous chapters and. (Note: Turn off the power first
before signal connection.)
Connect multiple controllers according to the following diagram.
3 Dimensions
-3-
