File System - Anybus CompactCom 40 Network Manual

Basic Operation
3.9

File System

3.9.1 Overview
The Anybus CompactCom 40 EtherNet/IP has an in-built file system, that can be accessed from
the application and from the network. Three directories are predefined:
VFS
Application
Firmware
In the firmware folder, it is not possible to use append mode when writing a file. Be sure to use
write mode only.
Anybus
CompactCom
File system

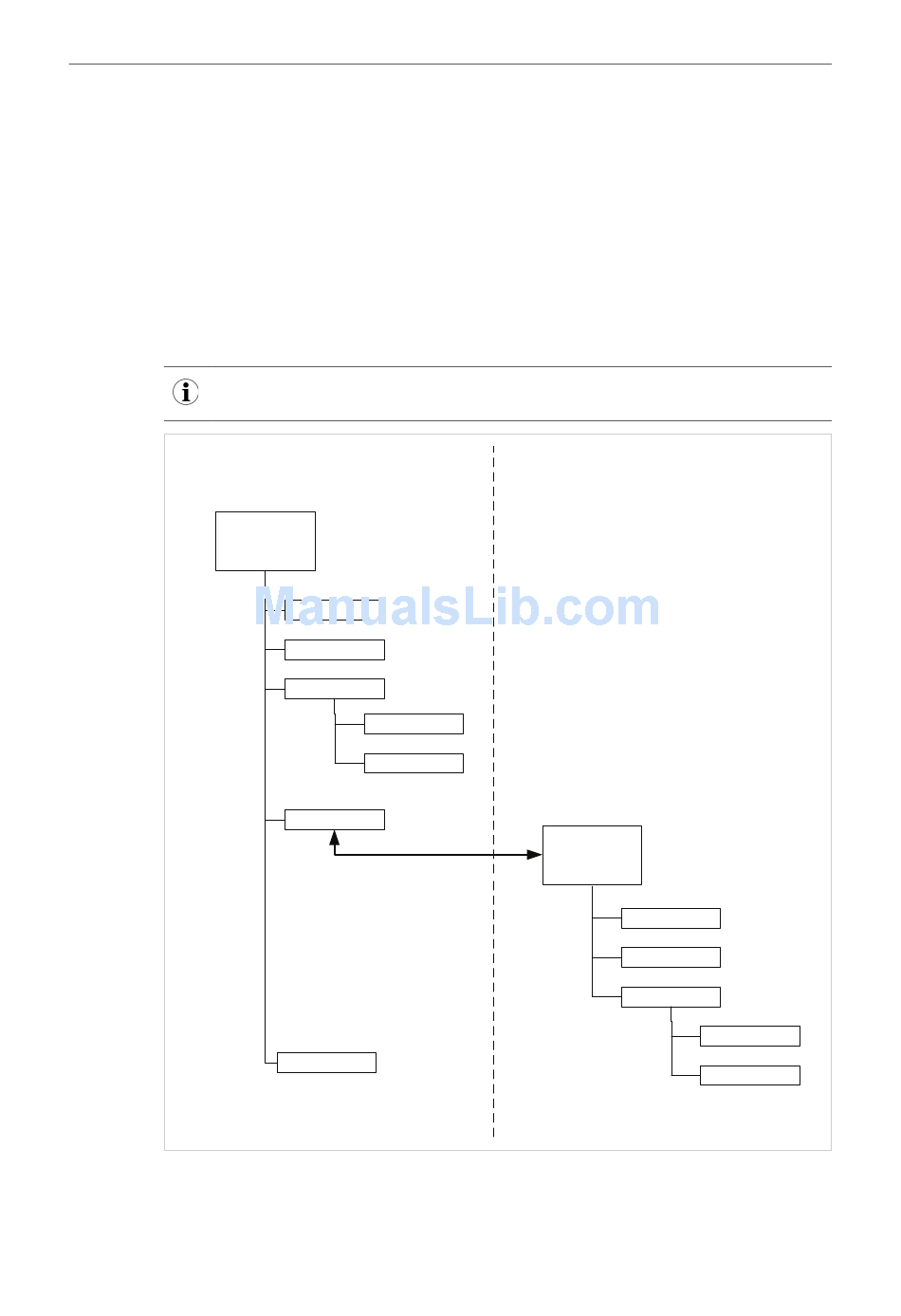

Fig. 2
Anybus CompactCom 40 EtherNet/IP Network Guide
The virtual file system that e.g. holds the web pages of the module. The virtual file
system is enabled by default in the Anybus File System Interface Object (0Ah).
This directory provides access to the application file system through the
Application File System Interface Object (EAh) (optional).
Firmware updates are stored in this directory.
Anybus CompactCom
File 1
File 2
VFS
File 1
File 2
Application
The Anybus CompactCom accesses
the application file system through the
Application File System Interface Object.
Firmware
Application
Application
File system
File A1
File A2
Directory A1
SCM-1202-031 -EN 1.6
16 (218)
File A1:1
File A1:2
