5.1mm
0.200in
Installation
For public disclosure

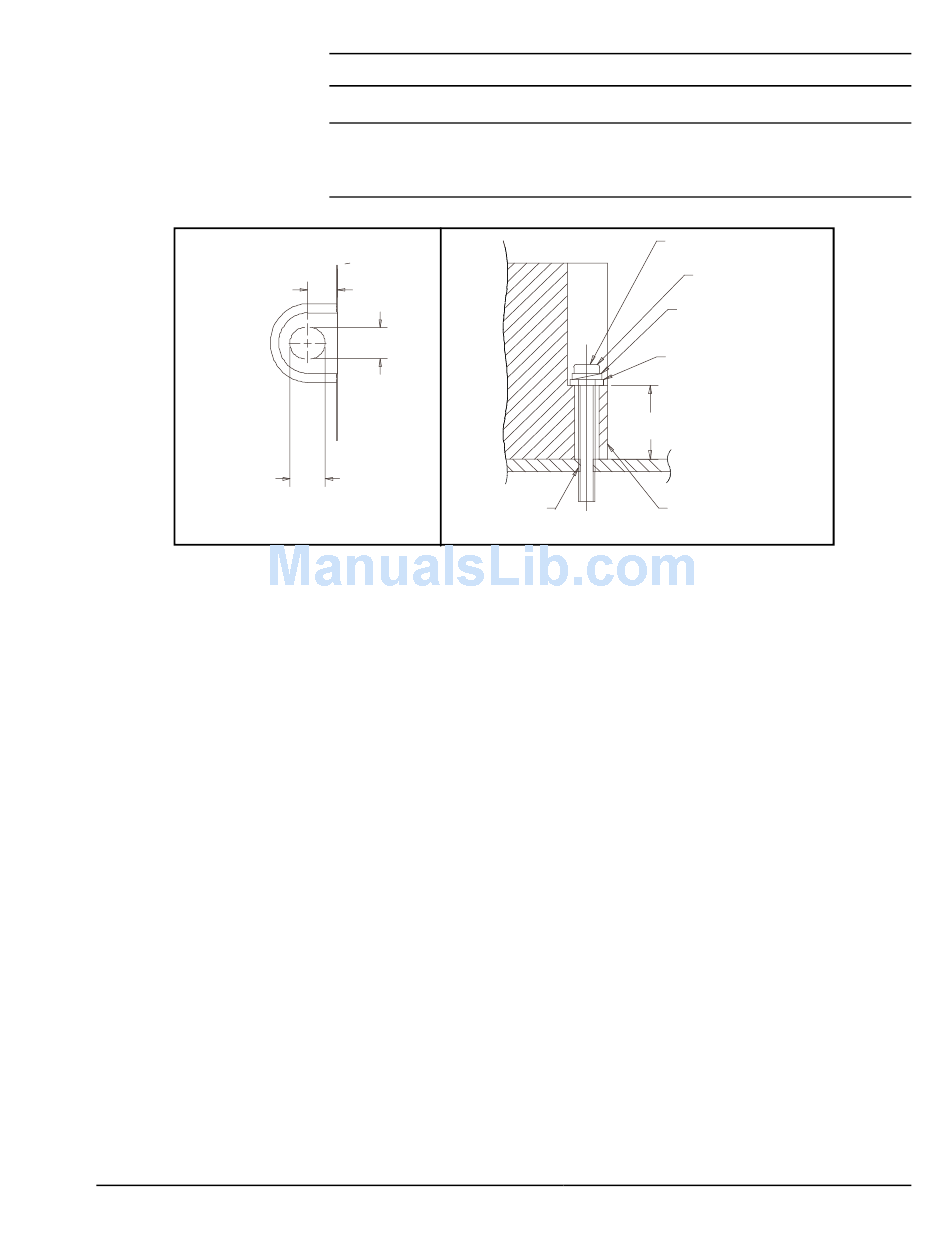

Note 1. Tolerances on all dimensions are +/- 0.13mm +/-0.005in) noncumulative.
Note 2. Apply 1.1 to 1.4Nm (10 to 12 in/lbs) of torque to the M3.5 (#6-32) steel screw
threaded into material containing internal threads and having a minimum thickness of
2.4mm (0.093in).
4.3mm
0.170in
4.3mm
0.170in
TAPPED
HOLE IN
PANEL
SEE NOTE 2.
M3.5 (#6) SCREW
SPLIT LOCK
W ASHER
FLAT WASHER
15.9mm
0.62in REF
CPU
GFK-1503E User Manual 53
