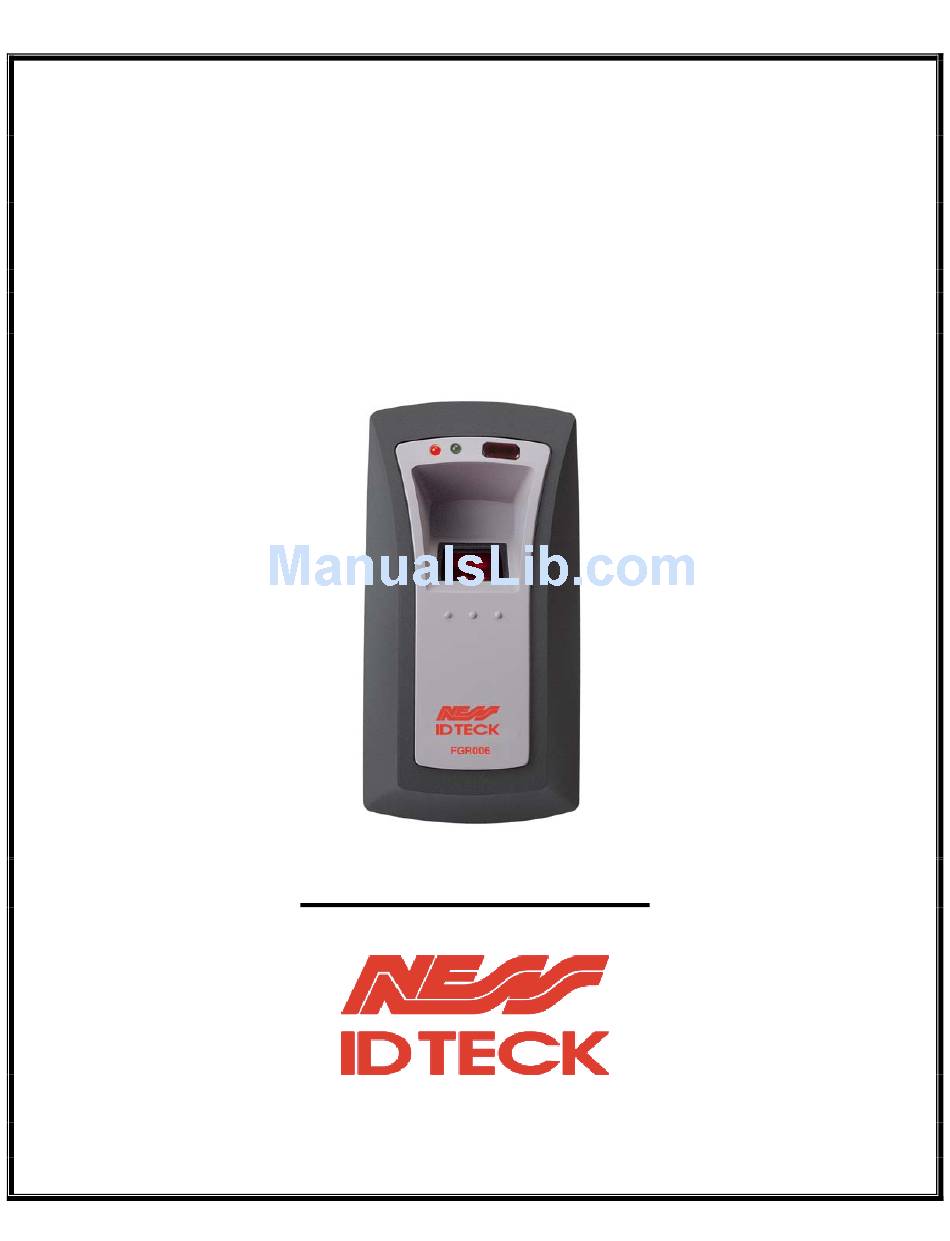

  • Page 1 IDTeck FGR006 Fingerprint & Proximity Reader Rev. 3.0 USER’S MANUAL...

  • Page 2: Table Of Contents

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER CONTENTS 1. Important Safety Instructions 2. Introduction 2.1 Identifying Supplied Parts 2.2 About NESS - IDTECK FGR006 2.3 Specification 3. Product overview 3.1 Function 3.2 Product Explanation 3.2.1 Panel Description 3.2.2 Colour Coded & Wiring Table 4.

  • Page 3: Important Safety Instructions

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 1. Important safety instructions To prevent injuries to persons and damages to property, please read all the instructions and follow them whenever you deal with this product. After reading, please put this instruction manual where it can be easily seen for the system operator.

  • Page 4: Introduction

    Its modern design gives you an easy installation (just replace existing reader) to metal door frame (mullion) or to any flat wall surface. FGR006 ensures you a successful operation where you want biometrics access control. FGR006 has three LED of red, green and lens (upper right), inside beeper sound to guarantee you an accurate and reliable access control.

  • Page 5: Product Overview

    The registration mode registers (or deletes) user cards. [Reader Mode] If your fingerprint is authorized then FGR006 will send your card ID to the access controller. [Master Card] A master card is used to change modes from Registration to reader modes.

  • Page 6: Product Explanation

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 3.2. PRODUCT EXPLANATION 3.2.1 PANEL DESCRIPTION 3.2.2 COLOUR CODED & WIRING TABLE IO PORT NAME SIGNAL NAME COLOUR CODE POWER Main Power (+12V) +12V Power Ground BLACK INPUT (Only available with RS232/RS485 Communication)
  • Page 7 IDTeck – FGR006 FINGERPRINT & PROXIMITY READER RS485 COMMUNICATION PORT RS485-A 485A Grey RS485-B 485B Yellow RS422 COMMUNICATION PORT DEFAULT RS422 TX+ Grey RS422 TX- Yellow RS422 RX+ Brown RS422 RX- Blue TAMPER SWITCH Tamper Switch TAMPER Purple EXTERNAL READER PORT (FGR006EX Only)

  • Page 8: Installation

    4.1.1 Drill two Ø1/8"(3mm) holes, 4.4"(113mm) apart in vertical and drill one Ø1/2" hole for the reader cable 2.2"(56mm) apart from the top hole. 4.1.2 Connect wires between the control panel and FGR006 reader then put reader cable into the centre hole and install the main unit by using two 3-16 screws.

  • Page 9: Wire Connection Of Fgr006

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 4.3 Wire Connection of FGR006 4.4 Wire Connection of FGR006EX 101-091 FGR006 – Version 3.0...

  • Page 10: Network Connection Of Fgr006

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 4.5 Network Connection of FGR006 4.6 Check Points and Tip 4.6.1 Recommended cable type and permissible length of cable • Need thicker wire if you connect the reader with high current consumption. Maximum...

  • Page 11: For Example

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 4.6.2 Reader connection If you install the reader in a long distance between the ACU and the reader, you have to remind that there will be a voltage drop between both ends of GND wire. For example, if you connect a reader with 100mA current consumption at 100m distance (assume to using DC resistance of cable of 100Ω/100m) and the...

  • Page 12: Output Connections

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 4.7.2 Input Connection (Only available with RS232/RS485 communication) - A green LED turn on if the short does LED CONTROL INPUT wire with the - The beep sound appears if the short does BEEPER CONTROLER INPUT wire with the GND.

  • Page 13: Communication

    5. Communication The communication setting is defaulted to RS422. If you need the change of the mode of the communication, FGR006 (FGR006EX) must set on the links on the MAIN PCB. Changing this jumper setting requires the use of a soldering iron.

  • Page 14: Rs232 Communication Port Connection

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 5.2 RS232 Communication Port Connection You set the jumper with a silkscreen side up. 9-pin connector (COM Port, D-SUB 9P Female) is required to connect serial communication RS-232 between Main Unit and PC (Personal Computer) - Connect RS232 TX, Yellow wire of Main Unit to pin number 2 of 9-pin connector.

  • Page 15: Rs422 Communication Port Connection

    For example) In the Reader mode if you present the master card to the FGR006, it is changes it to registration mode. In the Registration mode if you present the master card to the FGR006, it changes it to Reader mode.

  • Page 16: Reader Mode

    If your card ID is registered then fingerprint scanner will light on. If your card ID is not registered then FGR006 will make 2 beep sounds and return to reader mode. Put your finger on the fingerprint scanner for authorization.

  • Page 17: Auto Match Function (Option 1)

    CAUTION: This function will ONLY be available when the number of users is less than 100 If your fingerprint is authorized the FGR006 will turn on the lens led (upper light) and make a beep sound for a second and will send your card ID to the access controller.

  • Page 18: External Rs232 Serial Jack (Option 2)

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 6.5 External RS232 Serial Jack (OPTION 2) This function allows the FGR006 to connect directly to a PC (or Notebook) via RS232 for fingerprint registrations. It is used to connect with FGR006 It uncover TOP CASE in FGR006.

  • Page 19: Operation Indication Of Reader/Register

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 7. Operation indication of Reader/Register FGR006: over the version 3.00 7.1 LED status STATUS FUNCTION Booting The system is booting when power is supplied Register The unit is initialised and master card is...

  • Page 20: Fcc Registration Information

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 8. FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device, which are not expressly approved by the responsible for compliance, could void the user's authority to operate the equipment.

  • Page 21: Contacts

    IDTeck – FGR006 FINGERPRINT & PROXIMITY READER 9. Contacts Ness Security Products Pty Ltd ABN 28 069 984 372 Head Office – NSW: 4 / 167 Prospect Hwy Seven Hills, NSW, 2147 – Australia Ph +61 2 8825 9222 Fax + 61 2 9674 2520 www.ness.com.au...
