Summary of Contents for IDTECK FGR006SRB

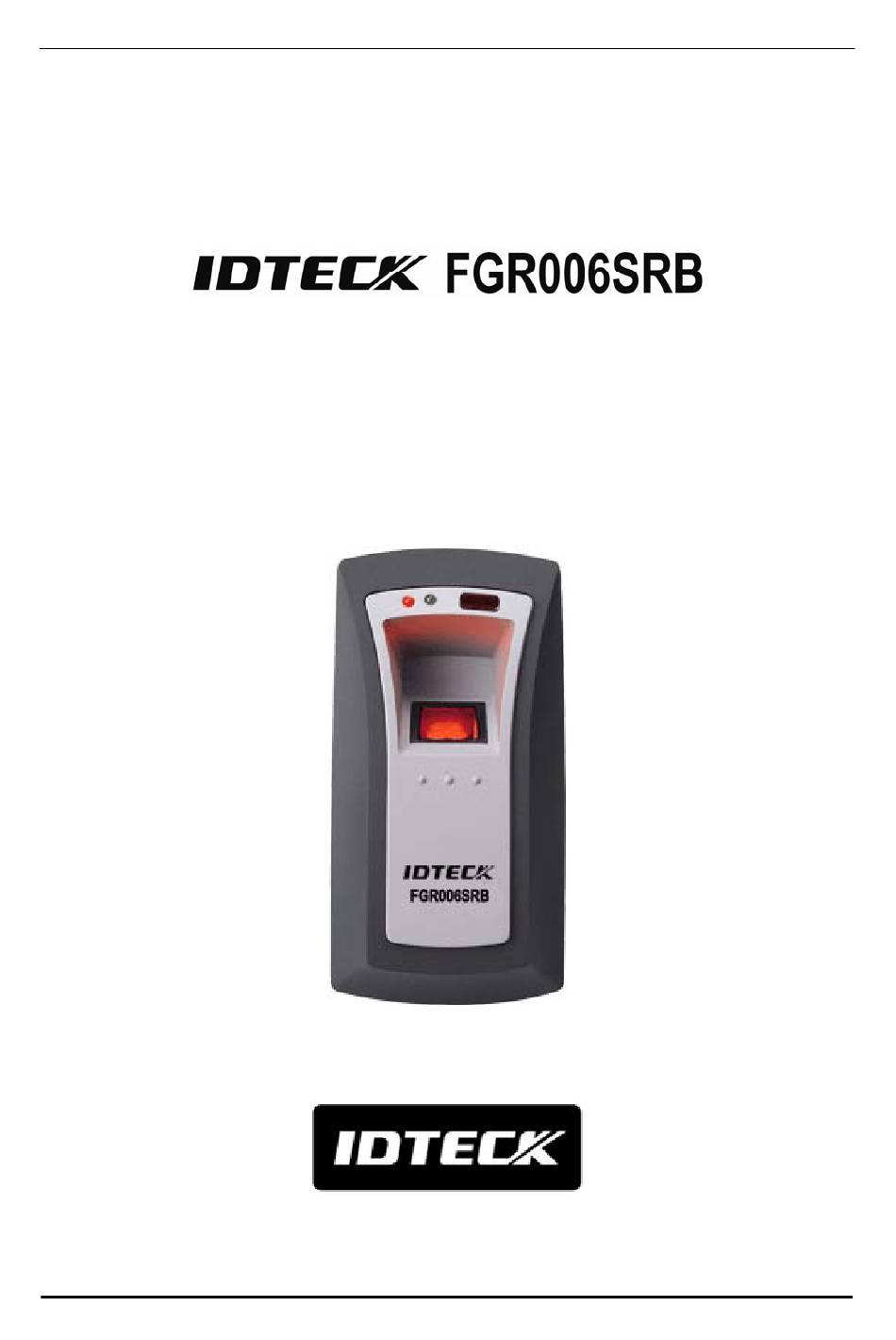

- Page 1 User’s Manual Fingerprint Stored Smart Card Reader...
-
Page 2: Table Of Contents
Table of Contents 1. Important Safety Instructions.............3 2. General .....................3 3. Features ....................4 4. Identifying Supplied Parts..............4 5. Specification..................5 6. Installation ..................6 7. Wire Color Table................7 8. Wire Connection to Access Controller..........8 9. Operation ..................8 10. FCC Registration Information............9 11. Warranty and Service ..............10... -
Page 3: Important Safety Instructions
(by just replacing existing reader) to metal door frame (mullion) or to any flat wall surface. The IDTECK FGR006SRB ensures you a successful operation where you want biometrics access control. The IDTECK FGR006SRB has two LEDs of red and green and a beeper inside to guarantee you an accurate and reliable access control. -
Page 4: Features
3. Features - 1:1 Verification - Fingerprint & 13.56 MHz [MIFARE] Smart Card Reader and Fingerprint Verification - Read Portable Smart Card that is stored Fingerprint Template programmed on PRG2000B - ID Only Function for Fingerprint Unregisterable Person through Smart Card is programmed by PRG2000B - Unlimited Fingerprint User Storable (Depend on Number of Corresponding Controller Users) - Decode Encrypted Biometrics Data Using Patented Encryption Algorithm... -
Page 5: Specification
5. Specification Model FGR006SRB 32bit ARM9 and 8bit Microprocessor Program Fingerprint 1MByte Flash Memory Memory Module Data Memory 8MByte SDROM Memory Program 128KByte Flash Memory Controller Memory Data Memory 4KByte SRAM User Unlimited Fingerprint Users Fingerprint Template Size 400Bytes for 1 Fingerprint Template Frequency 13.56MHz... -
Page 6: Installation
Drill two Ø1/8"(3mm) holes, 4.4"(113mm) apart in vertical and drill one Ø1/2" (12mm) hole for the reader cable 2.2"(56mm) apart from the top hole. 6-2. Connect wires between the access control panel and FGR006SRB reader then put reader cable into the center hole and install the main unit by using two 3-16 screws. -
Page 7: Wire Color Table
OK Signal Out Orange with Black stripe † Tamper Switch Out Purple LED Control In Blue with White stripe † Buzzer Control In White with Red stripe † * Please cut out tail connector before installation. FGR006SRB (V3.0.0 or Over included) †... -
Page 8: Wire Connection To Access Controller
† 9. Operation 9-1. Apply power, FGR006SRB will beep 1 time and the red LED will turn on after the initialization. 9-2. Present a proximity card to the FGR006SRB until the fingerprint scanner lights on. 9-3. Put your finger on the fingerprint scanner for authorization. -
Page 9: Fcc Registration Information
10. FCC Registration Information FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;... -
Page 10: Warranty And Service
370 Amapola Ave, #106 Torrance, CA 90501 Tel: 310-782-8383 Fax: 310-782-8298 E-mail: rflogics@rflogics.com Website: www.rflogics.com Hong Kong Branch: IDTECK Hong Kong 12/F, B2B Centre, No.36 Connaught Road West, Hong Kong Tel: 852-2581-9580 Fax: 852-2234-5150 E-mail: alchu@qala.com.hk Website: www.ristarhk.com Please use the original container, or pack the unit(s) in a sturdy carton with sufficient packing to prevent damage and include the following information: 1. - Page 11 MEMO...
- Page 12 The specification contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong, Gangseo-Gu, Seoul, 157-030, Korea Tel : +82-2-2659-0055 Fax : +82-2-2659-0086 E-mail : webmaster@idteck.com MARF6SBHE2X July. 2006 Copyright ©2006 IDTECK Co., Ltd.
