4-2-13. Video Status

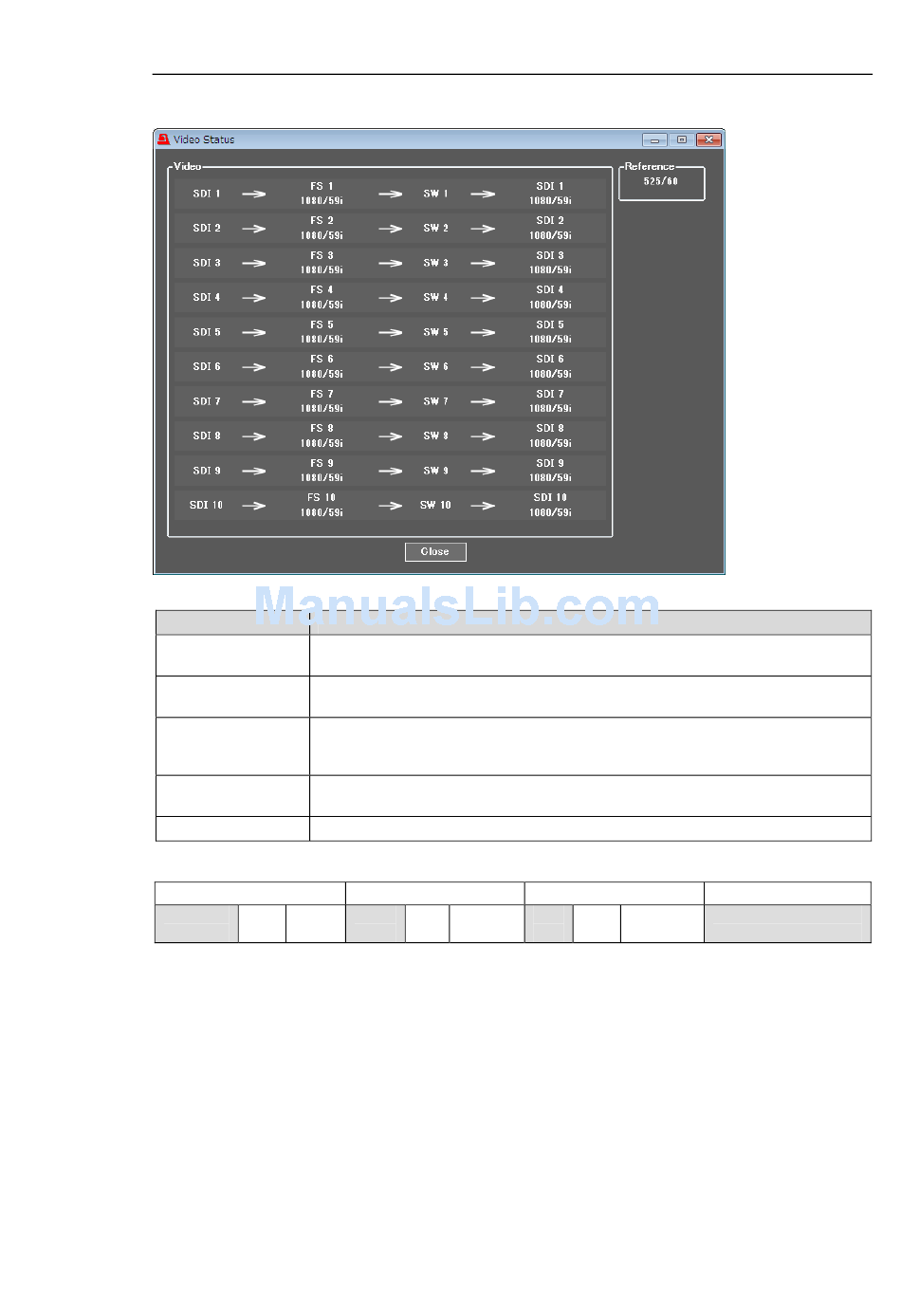

The Video Status page displays routings and status of each output video signals.
Display
Video (Row 1)
Video (Row 2)
Video (Row 3)
Video (Row 4)
Reference
Row 1 (FS Input)
SDI IN
×
1-10 1-10
* Shaded cells are displayed in the status display. (Src 1-10 displayed as FS 1-10.）
* "×"s indicate crosspoint settings.
Displays input channels (SDI IN 1-10) assigned to FS 1-10 in the FS Input
menu.
Displays FSs (1-10) and their signal formats assigned to Dest 1-10 in the
Clean Switch menu.
Displays source signals (SW 1-10 are the same as Dest 1-10 of the Clean
Switch menu) assigned to output connectors (SDI OUT 1-10) in the FS
Output menu.
Displays the signal format of output signals assigned to connectors SDI
OUT 1-10.
Displays the input genlock signal format.
Row 2 (Clean Switch)
FS Src Dest
×
=
1-10 1-10
Description
Row 3 (FS Output)
SW SDI OUT
×
=
1-10 1-10
41
Row 4
SDI OUT 1-10 output
signal format
