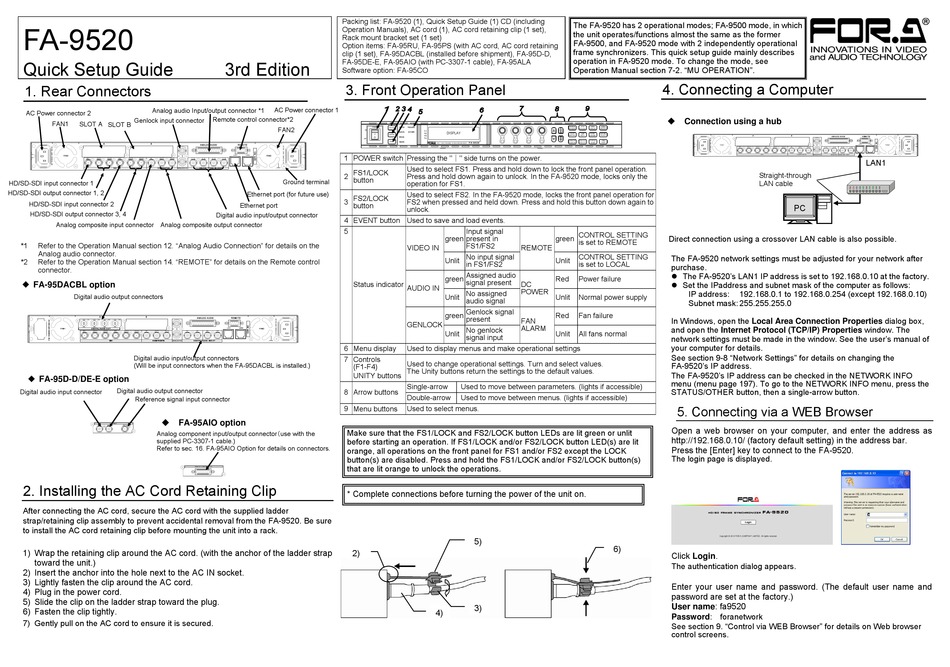

FOR-A FA-9520 Quick Setup Manual

FA-9520
Quick Setup Guide

1. Rear Connectors

Analog audio Input/output connector *1
AC Power connector 2
Genlock input connector
FAN1 SLOT A SLOT B
A B
FAN1
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2
SDI COMPOSITE GENLOCK IN
HD/SD-SDI input connector 1
HD/SD-SDI output connector 1, 2
HD/SD-SDI input connector 2
HD/SD-SDI output connector 3, 4
Analog composite input connector Analog composite output connector
*1 Refer to the Operation Manual section 12. "Analog Audio Connection" for details on the
Analog audio connector.
*2 Refer to the Operation Manual section 14. "REMOTE" for details on the Remote control
connector.
 FA-95DACBL option
Digital audio output connectors
A B
1/2 3/4 5/6 7/8
DIGITAL AUDIO OUT
FAN1
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2 1/2
GENLOCK IN
SDI SDI COMPOSITE COMPOSITE
Digital audio input/output connectors
(Will be input connectors when the FA-95DACBL is installed.)
 FA-95D-D/DE-E option
Digital audio output connector
Digital audio input connector
Reference signal input connector
 FA-95AIO option
Dolby E
IN OUT REF IN
Analog component input/output connector（use with the
supplied PC-3307-1 cable.)
Refer to sec. 16. FA-95AIO Option for details on connectors.
2. Installing the AC Cord Retaining Clip
After connecting the AC cord, secure the AC cord with the supplied ladder
strap/retaining clip assembly to prevent accidental removal from the FA-9520. Be sure
to install the AC cord retaining clip before mounting the unit into a rack.
1) Wrap the retaining clip around the AC cord. (with the anchor of the ladder strap
toward the unit.)
2) Insert the anchor into the hole next to the AC IN socket.
3) Lightly fasten the clip around the AC cord.
4) Plug in the power cord.
5) Slide the clip on the ladder strap toward the plug.
6) Fasten the clip tightly.
7) Gently pull on the AC cord to ensure it is secured.
Packing list: FA-9520 (1), Quick Setup Guide (1) CD (including
Operation Manuals), AC cord (1), AC cord retaining clip (1 set),
Rack mount bracket set (1 set)
Option items: FA-95RU, FA-95PS (with AC cord, AC cord retaining
clip (1 set), FA-95DACBL (installed before shipment), FA-95D-D,
FA-95DE-E, FA-95AIO (with PC-3307-1 cable), FA-95ALA
3rd Edition
Software option: FA-95CO
3. Front Operation Panel
AC Power connector 1
Remote control connector*2
FAN2
O N
O FF
ANALOG AUDIO REMOTE
LAN1 LAN2 1 POWER switch Pressing the "｜" side turns on the power.
FAN2
1 / 2 3 / 4 5 / 6 7 / 8
DIGITAL AUDIO IN / OUT
FS1/LOCK
2
button
Ground terminal
Ethernet port (for future use)
3 FS2/LOCK
button
Ethernet port
Digital audio input/output connector
4 EVENT button Used to save and load events.
5
Status indicator
ANALOG AUDIO REMOTE
LAN1 LAN2 LAN2
FAN2
3/4 5/6 7/8
DIGITAL AUDIO IN/OUT
6 Menu display
7 Controls
(F1-F4)
UNITY buttons
8 Arrow buttons
9 Menu buttons
Make sure that the FS1/LOCK and FS2/LOCK button LEDs are lit green or unlit
before starting an operation. If FS1/LOCK and/or FS2/LOCK button LED(s) are lit
orange, all operations on the front panel for FS1 and/or FS2 except the LOCK
button(s) are disabled. Press and hold the FS1/LOCK and/or FS2/LOCK button(s)
that are lit orange to unlock the operations.
ANALOG COMPONENT I/O
* Complete connections before turning the power of the unit on.
2)
POW ER PS1/LOCK VIDEO IN FAN ALARM
F 1
AUDIO IN DC PO W ER DISPLAY
F 2
PS2/LOCK
F 3 F 1 F 2 F 3 F 4
G ENLO C L
F 4 UN ITY UN ITY UN ITY UN ITY
EVENT R EMO TE
H D / S D F R A M E S Y N C H R ON I ZE R F A - 9 5 2 0
Used to select FS1. Press and hold down to lock the front panel operation.
Press and hold down again to unlock. In the FA-9520 mode, locks only the
operation for FS1.
Used to select FS2. In the FA-9520 mode, locks the front panel operation for
FS2 when pressed and held down. Press and hold this button down again to
unlock.
Input signal
green present in
FS1/FS2
VIDEO IN REMOTE
Unlit No input signal
in FS1/FS2
green Assigned audio
signal present
DC
AUDIO IN
POWER
No assigned
Unlit
audio signal
green Genlock signal
present
FAN
GENLOCK
ALARM
Unlit No genlock
signal input
Used to display menus and make operational settings
Used to change operational settings. Turn and select values.
The Unity buttons return the settings to the default values.
Single-arrow Used to move between parameters. (lights if accessible)
Double-arrow Used to move between menus. (lights if accessible)
Used to select menus.
5)
3)
4)
The FA-9520 has 2 operational modes; FA-9500 mode, in which
the unit operates/functions almost the same as the former
FA-9500, and FA-9520 mode with 2 independently operational
frame synchronizers. This quick setup guide mainly describes
operation in FA-9520 mode. To change the mode, see
Operation Manual section 7-2. "MU OPERATION".
4. Connecting a Computer
 Connection using a hub
PROCESS C C CONV1 CONV2
SDI AUDIO ANALOG MASTER
AE S AUDIO
A V O CLIP IN SEL OUT SEL
MAPPING DELAY M OD E
DO WNMIX
VIDEO OP VIDEO S YS STATUS VIDEO
AU DIO
AUDIO OP AUDIO S YS OTHER
FAN1
green CONTROL SETTING
Direct connection using a crossover LAN cable is also possible.
is set to REMOTE
CONTROL SETTING
The FA-9520 network settings must be adjusted for your network after
Unlit
is set to LOCAL
purchase.
 The FA-9520's LAN1 IP address is set to 192.168.0.10 at the factory.
Red Power failure
 Set the IPaddress and subnet mask of the computer as follows:
IP address:
Unlit Normal power supply
Subnet mask: 255.255.255.0
Red Fan failure
In Windows, open the Local Area Connection Properties dialog box,
and open the Internet Protocol (TCP/IP) Properties window. The
Unlit All fans normal
network settings must be made in the window. See the user's manual of
your computer for details.
See section 9-8 "Network Settings" for details on changing the
FA-9520's IP address.
The FA-9520's IP address can be checked in the NETWORK INFO
menu (menu page 197). To go to the NETWORK INFO menu, press the
STATUS/OTHER button, then a single-arrow button.
5. Connecting via a WEB Browser
Open a web browser on your computer, and enter the address as
http://192.168.0.10/ (factory default setting) in the address bar.
Press the [Enter] key to connect to the FA-9520.
The login page is displayed.
6)
Click Login.
The authentication dialog appears.
Enter your user name and password. (The default user name and
password are set at the factory.)
User name: fa9520
Password: foranetwork
See section 9. "Control via WEB Browser" for details on Web browser
control screens.
A B
ANALOG AUDIO REMOTE
LAN1 LAN2
FAN2
IN1 OU T1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2 1 / 2 3 / 4 5 / 6 7 / 8
SDI COMPOSITE GENLOCK IN DIGITAL AUDIO IN / OUT
LAN1
Straight-through
LAN cable
PC
192.168.0.1 to 192.168.0.254 (except 192.168.0.10)
