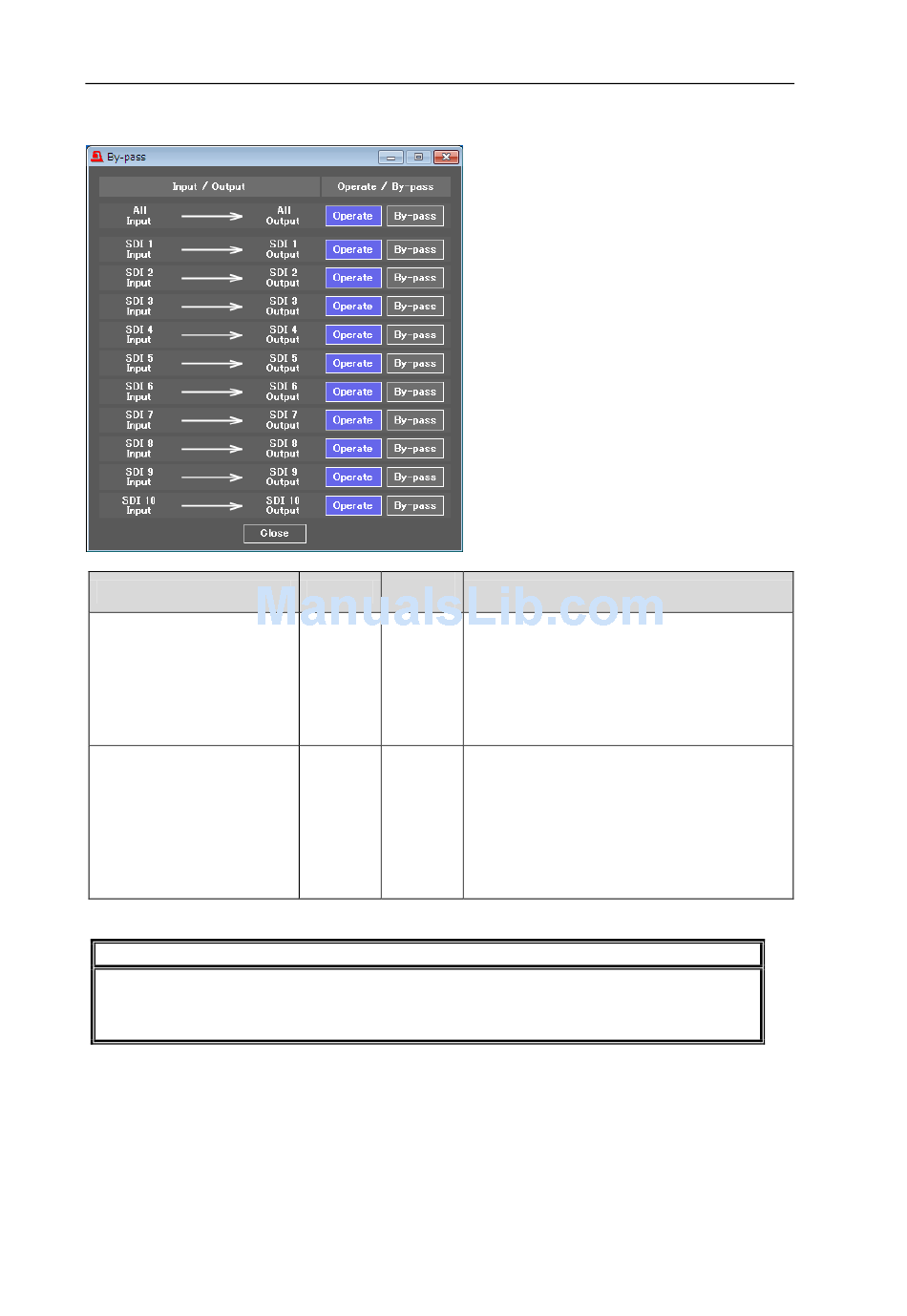

4-2-12. By-pass

The By-pass page allows you to set bypass outputs.
Input signals will be output to output connectors without being internally processed.
Item
All Input-All Output
SDI X Input→SDI X Output
* The front panel status LED for the by-passed input connector lights green.
SDI input that is assigned in the Video Input menu (see sec. 4-2-1) to an FS with an ID
number different from that of the SDI input cannot be selected in this menu. e.g., FS 1
assigned to SDI 3, FS 5 assigned to SDI 1, 2, 3, etc.
Setting
Default
range
Allows you to set all inputs and outputs
simultaneously regardless of other
settings.
Operate
Operate: Processes input signals.
Operate
By-pass
By-pass: By-passes input signals.
e.g. Input 1 → Output 1, Input 10 → Output
10
Allows you to set the By-pass setting for
each input connector.
Operate: Processes input signals.
Operate
By-pass: By-passes input signals.
Operate
By-pass
(X: connector number)
By-pass cannot be set depending on FS
Input and FS Output settings. See the
important note below.
IMPORTANT
40
