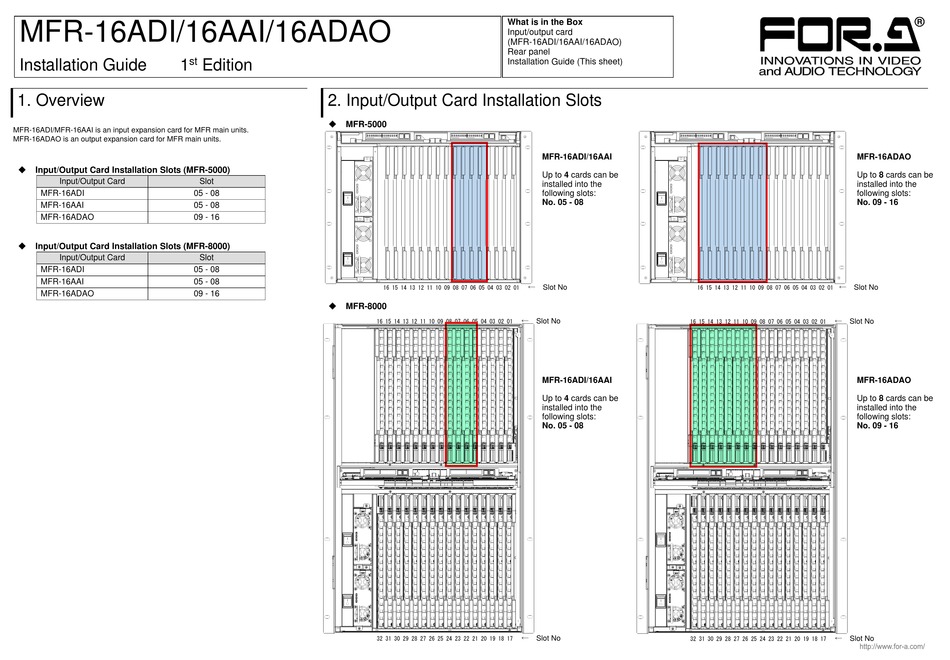

MFR-16ADI/16AAI/16ADAO
st
Installation Guide
1

1. Overview

MFR-16ADI/MFR-16AAI is an input expansion card for MFR main units.
MFR-16ADAO is an output expansion card for MFR main units.
 Input/Output Card Installation Slots (MFR-5000)
Input/Output Card
MFR-16ADI
MFR-16AAI
MFR-16ADAO
 Input/Output Card Installation Slots (MFR-8000)
Input/Output Card
MFR-16ADI
MFR-16AAI
MFR-16ADAO
Edition

2. Input/Output Card Installation Slots

 MFR-5000
Slot
05 - 08
05 - 08
09 - 16
Slot
05 - 08
05 - 08
09 - 16
 MFR-8000
What is in the Box
Input/output card
(MFR-16ADI/16AAI/16ADAO)
Rear panel
Installation Guide (This sheet)
MFR-16ADI/16AAI
Up to 4 cards can be
installed into the
following slots:
No. 05 - 08
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16ADI/16AAI
Up to 4 cards can be
installed into the
following slots:
No. 05 - 08
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
MFR-16ADAO
Up to 8 cards can be
installed into the
following slots:
No. 09 - 16
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16ADAO
Up to 8 cards can be
installed into the
following slots:
No. 09 - 16
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
