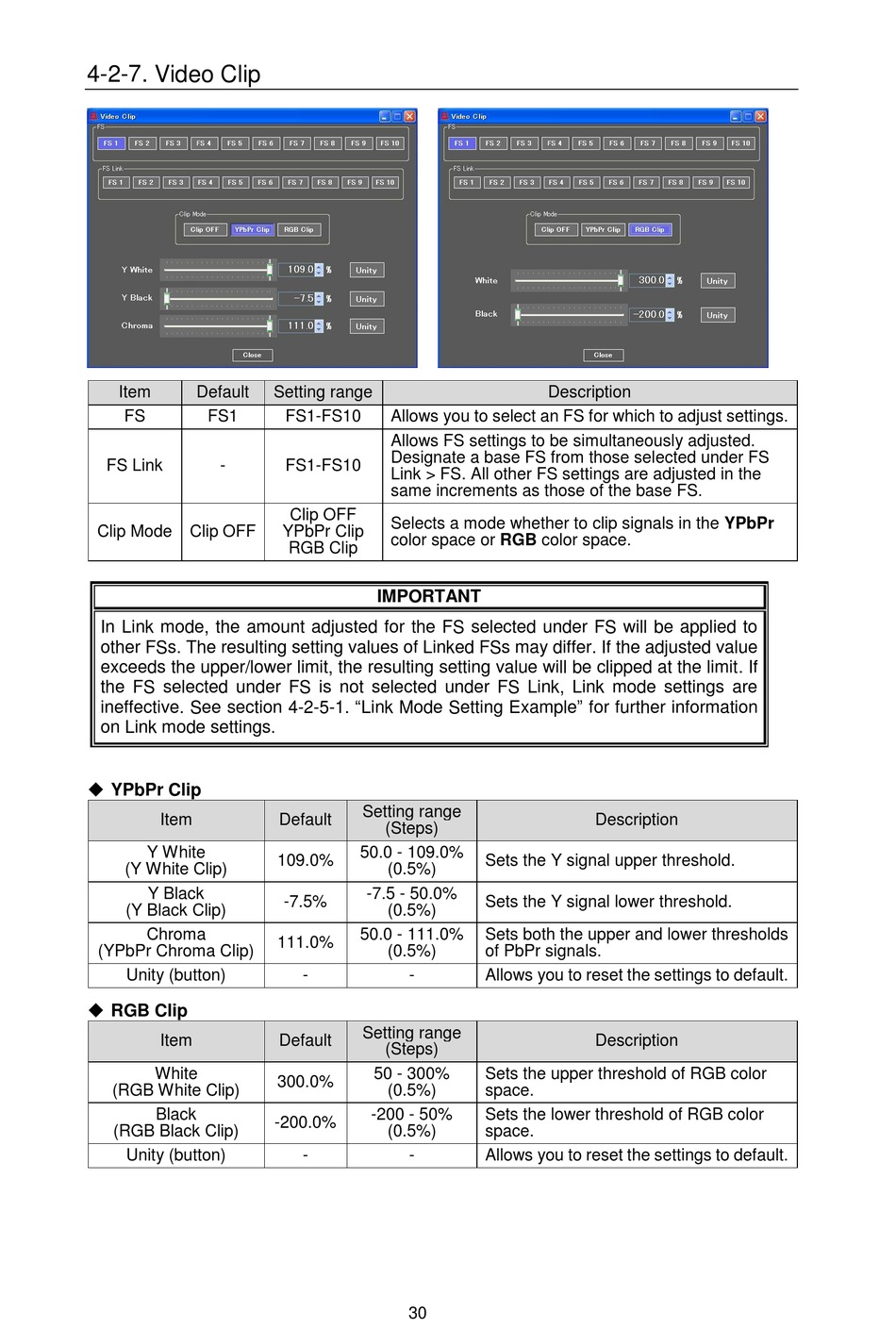

4-2-7. Video Clip

Item Default
FS FS1
FS Link -
Clip Mode Clip OFF
In Link mode, the amount adjusted for the FS selected under FS will be applied to
other FSs. The resulting setting values of Linked FSs may differ. If the adjusted value
exceeds the upper/lower limit, the resulting setting value will be clipped at the limit. If
the FS selected under FS is not selected under FS Link, Link mode settings are
ineffective. See section 4-2-5-1. "Link Mode Setting Example" for further information
on Link mode settings.
 YPbPr Clip
Item
Y White
(Y White Clip)
Y Black
(Y Black Clip)
Chroma
(YPbPr Chroma Clip)
Unity (button)
 RGB Clip
Item
White
(RGB White Clip)
Black
(RGB Black Clip)
Unity (button)
Setting range
FS1-FS10 Allows you to select an FS for which to adjust settings.
Allows FS settings to be simultaneously adjusted.
Designate a base FS from those selected under FS
FS1-FS10
Link > FS. All other FS settings are adjusted in the
same increments as those of the base FS.
Clip OFF
Selects a mode whether to clip signals in the YPbPr
YPbPr Clip
color space or RGB color space.
RGB Clip
IMPORTANT
Setting range
Default
(Steps)
50.0 - 109.0%
109.0%
(0.5%)
-7.5 - 50.0%
-7.5%
(0.5%)
50.0 - 111.0%
111.0%
(0.5%)
- -
Setting range
Default
(Steps)
50 - 300%
300.0%
(0.5%)
-200 - 50%
-200.0%
(0.5%)
- -
30
Description
Description
Sets the Y signal upper threshold.
Sets the Y signal lower threshold.
Sets both the upper and lower thresholds
of PbPr signals.
Allows you to reset the settings to default.
Description
Sets the upper threshold of RGB color
space.
Sets the lower threshold of RGB color
space.
Allows you to reset the settings to default.
