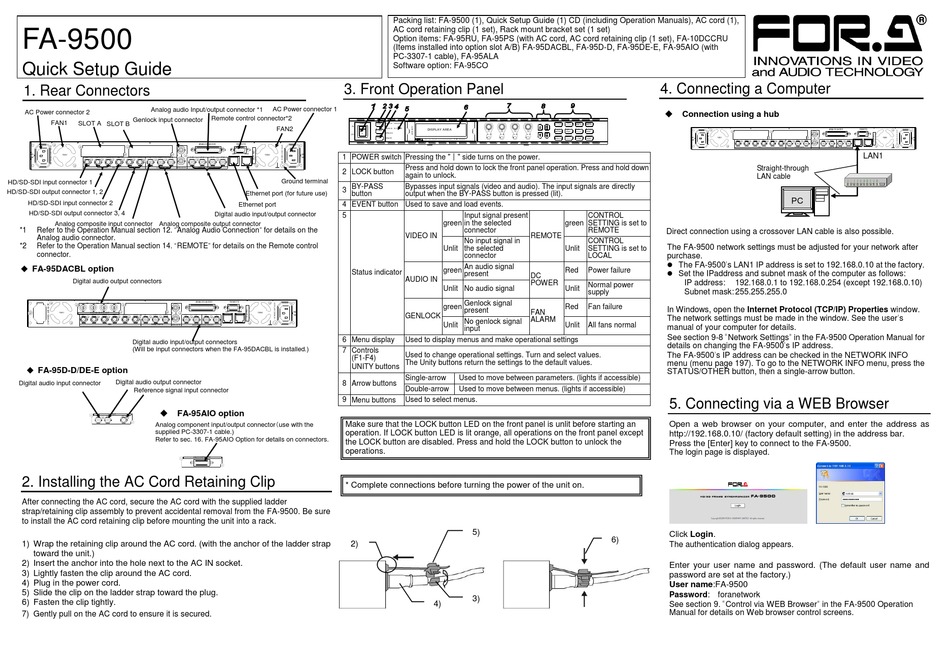

FOR-A FA-9500 Quick Setup Manual

FA-9500
Quick Setup Guide

1. Rear Connectors

Analog audio Input/output connector *1
AC Power connector 2
Genlock input connector
FAN1 SLOT A SLOT B
A B
FAN1
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2
GENLOCK IN
SDI COMPOSITE
HD/SD-SDI input connector 1
HD/SD-SDI output connector 1, 2
HD/SD-SDI input connector 2
HD/SD-SDI output connector 3, 4
Analog composite input connector Analog composite output connector
Refer to the Operation Manual section 12. "Analog Audio Connection" for details on the
*1
Analog audio connector.
Refer to the Operation Manual section 14. "REMOTE" for details on the Remote control
*2
connector.

FA-95DACBL option
Digital audio output connectors
A B
1/2 3/4 5/6 7/8
FAN1 DIGITAL AUDIO OUT
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2 1/2
SDI SDI COMPOSITE COMPOSITE GENLOCK IN
Digital audio input/output connectors
(Will be input connectors when the FA-95DACBL is installed.)

FA-95D-D/DE-E option
Digital audio output connector
Digital audio input connector
Reference signal input connector
 FA-95AIO option
Dolby E
IN OUT REF IN
Analog component input/output connector（use with the
supplied PC-3307-1 cable.)
Refer to sec. 16. FA-95AIO Option for details on connectors.
2. Installing the AC Cord Retaining Clip
After connecting the AC cord, secure the AC cord with the supplied ladder
strap/retaining clip assembly to prevent accidental removal from the FA-9500. Be sure
to install the AC cord retaining clip before mounting the unit into a rack.
1) Wrap the retaining clip around the AC cord. (with the anchor of the ladder strap
toward the unit.)
2) Insert the anchor into the hole next to the AC IN socket.
3) Lightly fasten the clip around the AC cord.
4) Plug in the power cord.
5) Slide the clip on the ladder strap toward the plug.
6) Fasten the clip tightly.
7) Gently pull on the AC cord to ensure it is secured.
3. Front Operation Panel
AC Power connector 1
Remote control connector*2
POWER
FAN2 ON
OFF
ANALOG AUDIO REMOTE
LAN1 LAN2
FAN2 1 POWER switch Pressing the "｜" side turns on the power.
1 / 2 3 / 4 5 / 6 7 / 8
DIGITAL AUDIO IN / OUT
2 LOCK button
Ground terminal
3 BY-PASS
Ethernet port (for future use) button
Ethernet port 4 EVENT button Used to save and load events.
Digital audio input/output connector
5
Status indicator
ANALOG AUDIO REMOTE
LAN1 LAN2 LAN2 FAN2
3/4 5/6 7/8
DIGITAL AUDIO IN/OUT
6 Menu display
7 Controls
(F1-F4)
UNITY buttons
8 Arrow buttons
9 Menu buttons
Make sure that the LOCK button LED on the front panel is unlit before starting an
operation. If LOCK button LED is lit orange, all operations on the front panel except
the LOCK button are disabled. Press and hold the LOCK button to unlock the
operations.
ANALOG COMPONENT I/O
* Complete connections before turning the power of the unit on.
2)
Packing list: FA-9500 (1), Quick Setup Guide (1) CD (including Operation Manuals), AC cord (1),
AC cord retaining clip (1 set), Rack mount bracket set (1 set)
Option items: FA-95RU, FA-95PS (with AC cord, AC cord retaining clip (1 set), FA-10DCCRU
(Items installed into option slot A/B) FA-95DACBL, FA-95D-D, FA-95DE-E, FA-95AIO (with
PC-3307-1 cable), FA-95ALA
Software option: FA-95CO
VIDEO IN FAN ALARM
LOCK
F1
AUDIO IN DC POWER
DISPLAY AREA
F2
BY-PASS
F3 F1 F2 F3 F4
GENLOCK
F4
UNITY UNITY UNITY UNITY
EVENT REMOTE
F A - 9 5 0 0
H D / S D F R A M E S Y S N C H R O N I Z E R
Press and hold down to lock the front panel operation. Press and hold down
again to unlock.
Bypasses input signals (video and audio). The input signals are directly
output when the BY-PASS button is pressed (lit).
Input signal present
green in the selected
connector
VIDEO IN REMOTE
No input signal in
Unlit the selected
connector
green An audio signal
present
DC
AUDIO IN
POWER
Unlit No audio signal
green Genlock signal
present
FAN
GENLOCK
ALARM
No genlock signal
Unlit
input
Used to display menus and make operational settings
Used to change operational settings. Turn and select values.
The Unity buttons return the settings to the default values.
Single-arrow Used to move between parameters. (lights if accessible)
Double-arrow Used to move between menus. (lights if accessible)
Used to select menus.
5)
3)
4)
4. Connecting a Computer
 Connection using a hub
PROCESS C C CONV1 CONV2
SDI AUDIO AES AUDIO ANALOG MASTER
A V O CLIP IN SEL OUT SEL
MAPPING DELAY DOWNMIX MODE
VIDEO OP VIDEO SYS STATUS VIDEO
FAN1
AUDIO OP AUDIO SYS OTHER AUDIO
CONTROL
green SETTING is set to
REMOTE
Direct connection using a crossover LAN cable is also possible.
CONTROL
The FA-9500 network settings must be adjusted for your network after
Unlit SETTING is set to
LOCAL purchase.
 The FA-9500's LAN1 IP address is set to 192.168.0.10 at the factory.
Red Power failure
 Set the IPaddress and subnet mask of the computer as follows:
IP address:
Normal power
Unlit
Subnet mask: 255.255.255.0
supply
Red Fan failure
In Windows, open the Internet Protocol (TCP/IP) Properties window.
The network settings must be made in the window. See the user's
Unlit All fans normal
manual of your computer for details.
See section 9-8 "Network Settings" in the FA-9500 Operation Manual for
details on changing the FA-9500's IP address.
The FA-9500's IP address can be checked in the NETWORK INFO
menu (menu page 197). To go to the NETWORK INFO menu, press the
STATUS/OTHER button, then a single-arrow button.
5. Connecting via a WEB Browser
Open a web browser on your computer, and enter the address as
http://192.168.0.10/ (factory default setting) in the address bar.
Press the [Enter] key to connect to the FA-9500.
The login page is displayed.
Click Login.
6)
The authentication dialog appears.
Enter your user name and password. (The default user name and
password are set at the factory.)
User name:FA-9500
Password: foranetwork
See section 9. "Control via WEB Browser" in the FA-9500 Operation
Manual for details on Web browser control screens.
A B
ANALOG AUDIO REMOTE
LAN1 LAN2 FAN2
IN1 OUT1 OUT2 IN2 OUT3 OUT4 IN OUT1 OUT2 1 / 2 3 / 4 5 / 6 7 / 8
SDI COMPOSITE GENLOCK IN DIGITAL AUDIO IN / OUT
LAN1
Straight-through
LAN cable
PC
192.168.0.1 to 192.168.0.254 (except 192.168.0.10)
fa9500
