FOR-A MFR-16SDOA Installation Manual

MFR-16SDI/16SDIA/16SDIB/16SDO/16SDOA
Installation Guide
1. Overview
MFR-16SDI, MFR-16SDIA or MFR-16SDIB is an input expansion card for MFR main
units.
MFR-16SDO and MFR-16SDOA are output expansion cards for MFR main units.
◆ Input/Output Card Installation Slots (MFR-5000)
Input/Output Card Max. Number
MFR-16SDI 8
MFR-16SDIA 8
MFR-16SDIB 8
MFR-16SDO 8
MFR-16SDOA 8
◆ Input/Output Card Installation Slots (MFR-8000)
Input/Output Card Max. Number
MFR-16SDI -
MFR-16SDIA 16
MFR-16SDIB 16
MFR-16SDO 16
MFR-16SDOA 16
4

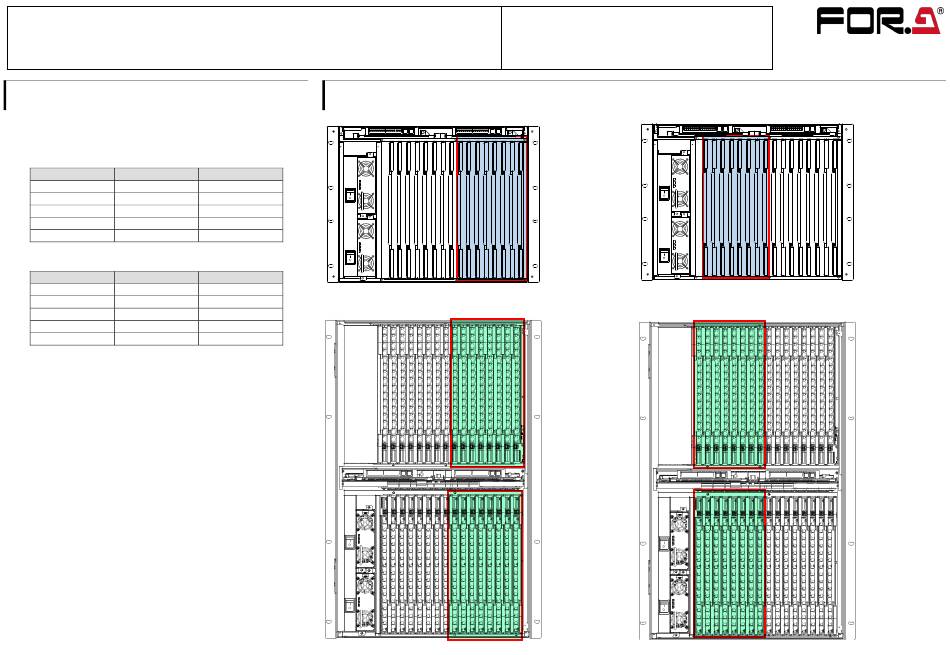

2. Input/Output Card Installation Slots
◆ MFR-5000
Slot
01 - 08
01 - 08
01 - 08
09 – 16
09 – 16
Slot
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
-
01 - 08, 17 - 24
◆ MFR-8000
01 - 08, 17 - 24
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
09 - 16, 25 - 32
09 - 16, 25 - 32
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
What is in the Box
Input card (MFR-16SDI/16SDIA/16SDIB)
Output card (MFR-16SDO/MFR-16SDOA)
Installation Guide (This sheet)
th
Edition
Rear panel (supplied with each MFR-16SDI/16SDIA/16SDIB/
16SDO/16SDOA card)
MFR-16SDI
MFR-16SDIA
MFR-16SDIB
Install into slots:
No. 01 - 08
← Slot No
← Slot No
MFR-16SDIA
MFR-16SDIB
Install into slots:
No. 01 - 08, 17 - 24
← Slot No
MFR-16SDO
MFR-16SDOA
Install into slots:
No. 09 - 16
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16SDO
MFR-16SDOA
Install into slots:
No. 09 - 16, 25 - 32
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
