3 Functional Description

3.1 Overview

The ADM-PCIE-8K5-FH is a versatile reconfigurable computing platform with a Kintex UltraScale KU115-2I or
KU060-2I FPGA, Gen3x8 PCIe interface, two banks of DDR4 both 72 bits wide (for 64 bits with 8 bits ECC), two
SFP+ cages capable of up to 16.375Gbps each and any Xilinx supported standard (Ethernet, SRIO, Infiniband,
SDI, etc.), a U.FL input for a timing synchronization input, a 12 pin header for general purpose use (clocking,
control pins, debug, etc.) and low speed serial communications, and a robust system monitor. Depending on
selected FPGA (XCKU115 only), two optional Samtec FireFly connectors may be fitted, capable of 16.375G/
channel (8 channels).
USB
SFP+ Cage
(16.375 Gbps)
SFP+ Cage
(16.375 Gbps)
SFP+ Cage
(16.375 Gbps)
SFP+ Cage
(16.375 Gbps)
Page 4

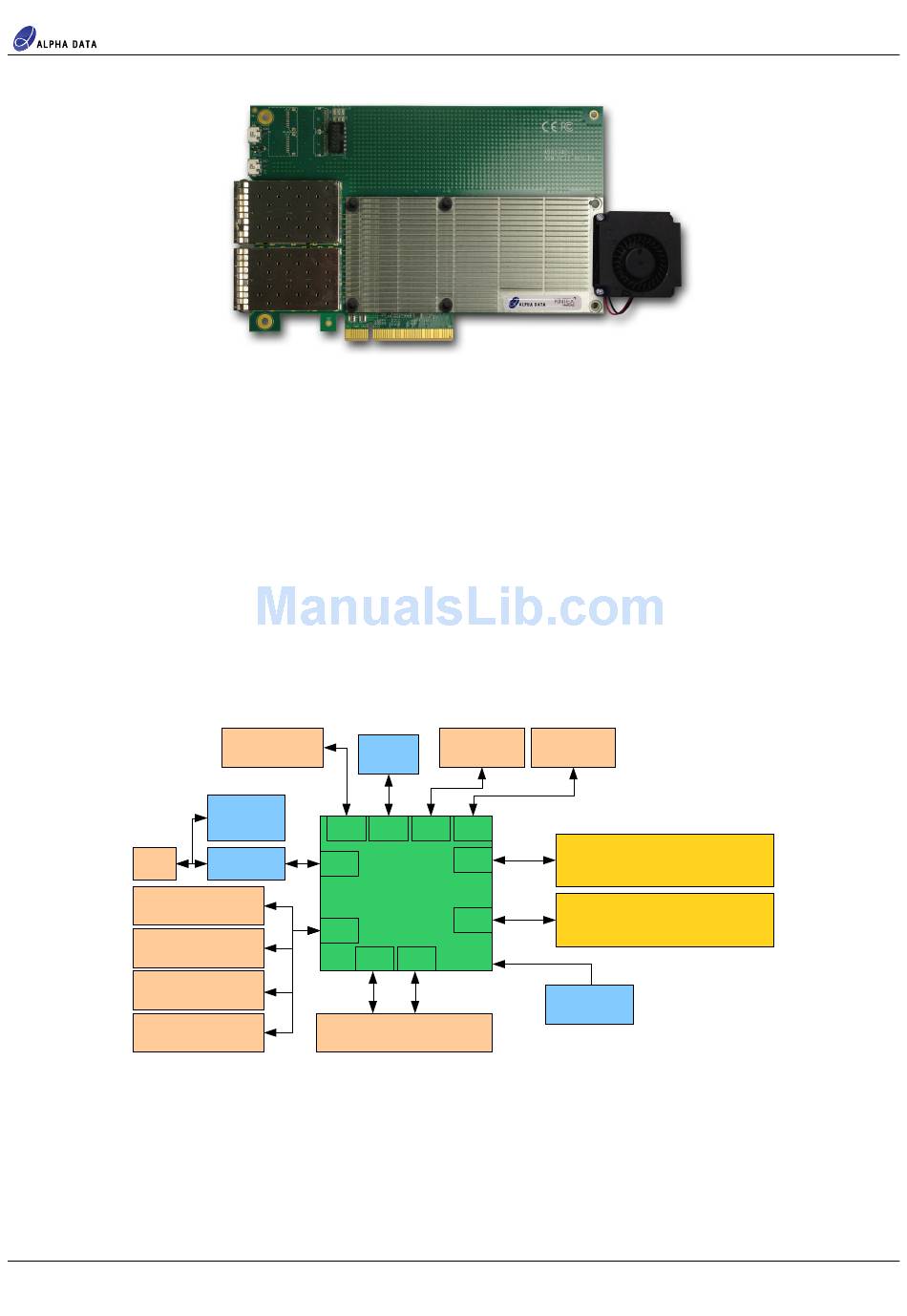

Figure 3 : 8K5-FH With Attached Optional Blower
Auxiliary IO
BPI
(timing, etc)
Config
System
Monitor
HRIO
HRIO
JTAG
0
XCKU115-2
FLVA1517E
MGT
MGT
(0,4)
x8 PCIe Gen3 Edge
Figure 4 : ADM-PCIE-8K5-FH Block Diagram
FireFly
FireFly
(4x16Gbps)
(4x16Gbps)
MGT
MGT
x72
HPIO
DDR4-2400/1866, 8/16GB+ECC
x72
HPIO
DDR4-2400/1866, 8/16GB+ECC
MGT
MAC ID
EEPROM
(5,7)
ADM-PCIE-8K5-FH User Manual
DDR4 Bank 0
DDR4 Bank 1
Functional Description
ad-ug-1342_v1_0.pdf
