ADM-PCIE-8V3 User Manual

3 Functional Description

3.1 Overview

The ADM-PCIE-8V3 is a versatile reconfigurable computing platform with a Virtex UltraScale VU095-2E FPGA,
two Gen3x8 PCIe interface, two banks of DDR4 both 72 bits wide (for 64 bits with 8 bits ECC), two QSFP28
cages capable of 8x 28G or 2x 112G Serial IO of any Xilinx supported standard (Ethernet, SRIO, Infiniband,
etc.), two Samtec FireFly connectors also capable of 28G/channel, a U.FL input for a timing synchronization
input, a 12 pin header for general purpose use (clocking, control pins, debug, etc.) and low speed serial
communications, and a robust system monitor.
USB
QSFP28 Cage
(4x28 Gbps max)
QSFP28 Cage
(4x28 Gbps max)
Functional Description
ad-ug-1308_v1_9.pdf
Auxiliary IO
BPI
(gpio, timing,
Config
serial coms, etc)
System
Monitor
HRIO HRIO
JTAG
0
XCVU095-2
MGT
FFVC1517E
MGT
MGT MGT
(0,4) (5,7)
x16 PCIe Gen3 Edge

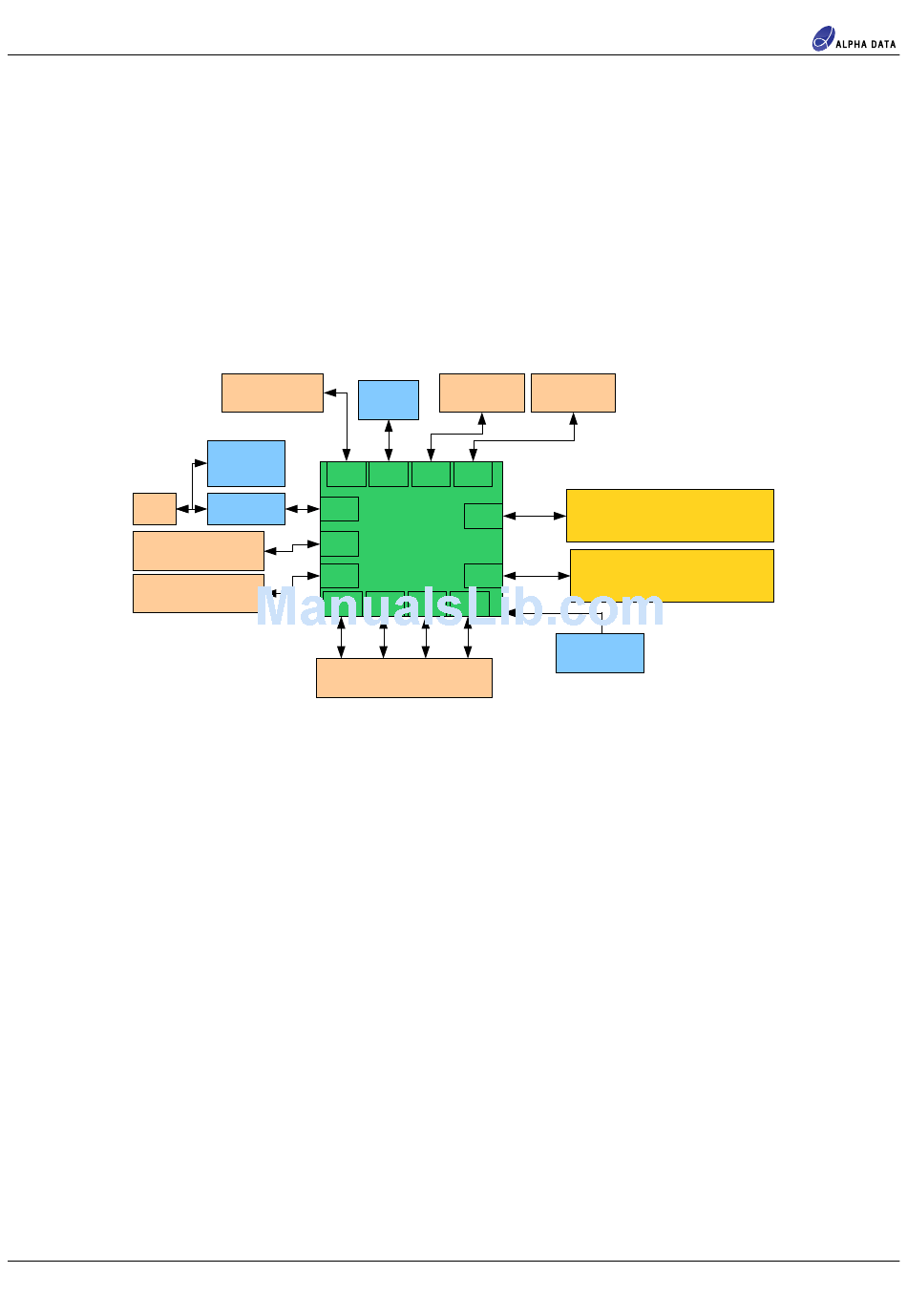

Figure 4 : ADM-PCIE-8V3 Block Diagram
FireFly FireFly
(4x28Gbps max) (4x28Gbps max)
MGT MGT
x72
HPIO
x72
HPIO
MGT MGT
MAC ID
EEPROM
(8,11) (12,15)
DDR4 Bank 0
DDR4-2400/1866, 8/16GB
DDR4 Bank 1
DDR4-2400/1866, 8/16GB
Page 5
