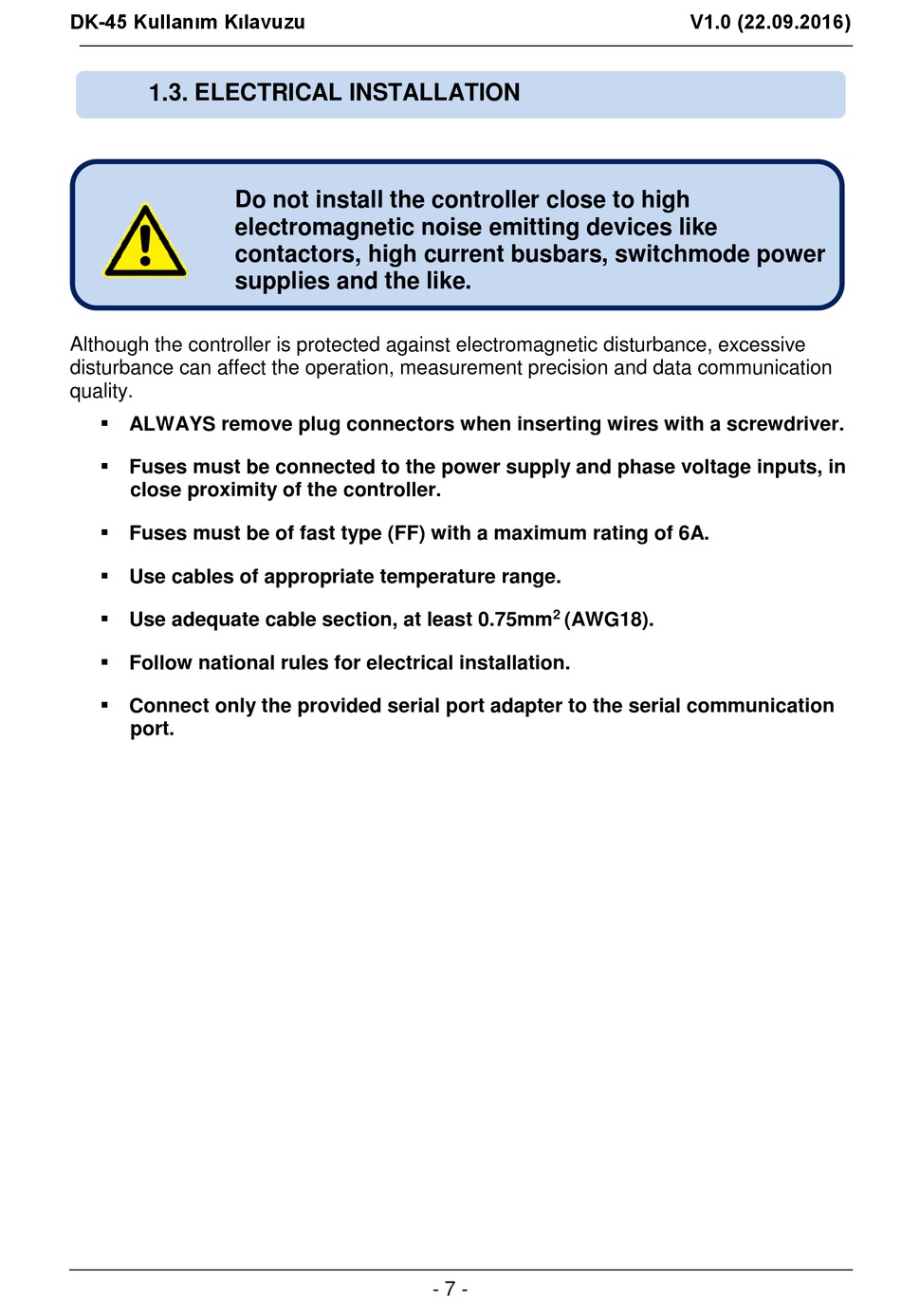

1.3. ELECTRICAL INSTALLATION

Do not install the controller close to high
electromagnetic noise emitting devices like
contactors, high current busbars, switchmode power
supplies and the like.
Although the controller is protected against electromagnetic disturbance, excessive
disturbance can affect the operation, measurement precision and data communication
quality.
 ALWAYS remove plug connectors when inserting wires with a screwdriver.
 Fuses must be connected to the power supply and phase voltage inputs, in
close proximity of the controller.
 Fuses must be of fast type (FF) with a maximum rating of 6A.
 Use cables of appropriate temperature range.
 Use adequate cable section, at least 0.75mm
 Follow national rules for electrical installation.
 Connect only the provided serial port adapter to the serial communication
port.
2
(AWG18).
