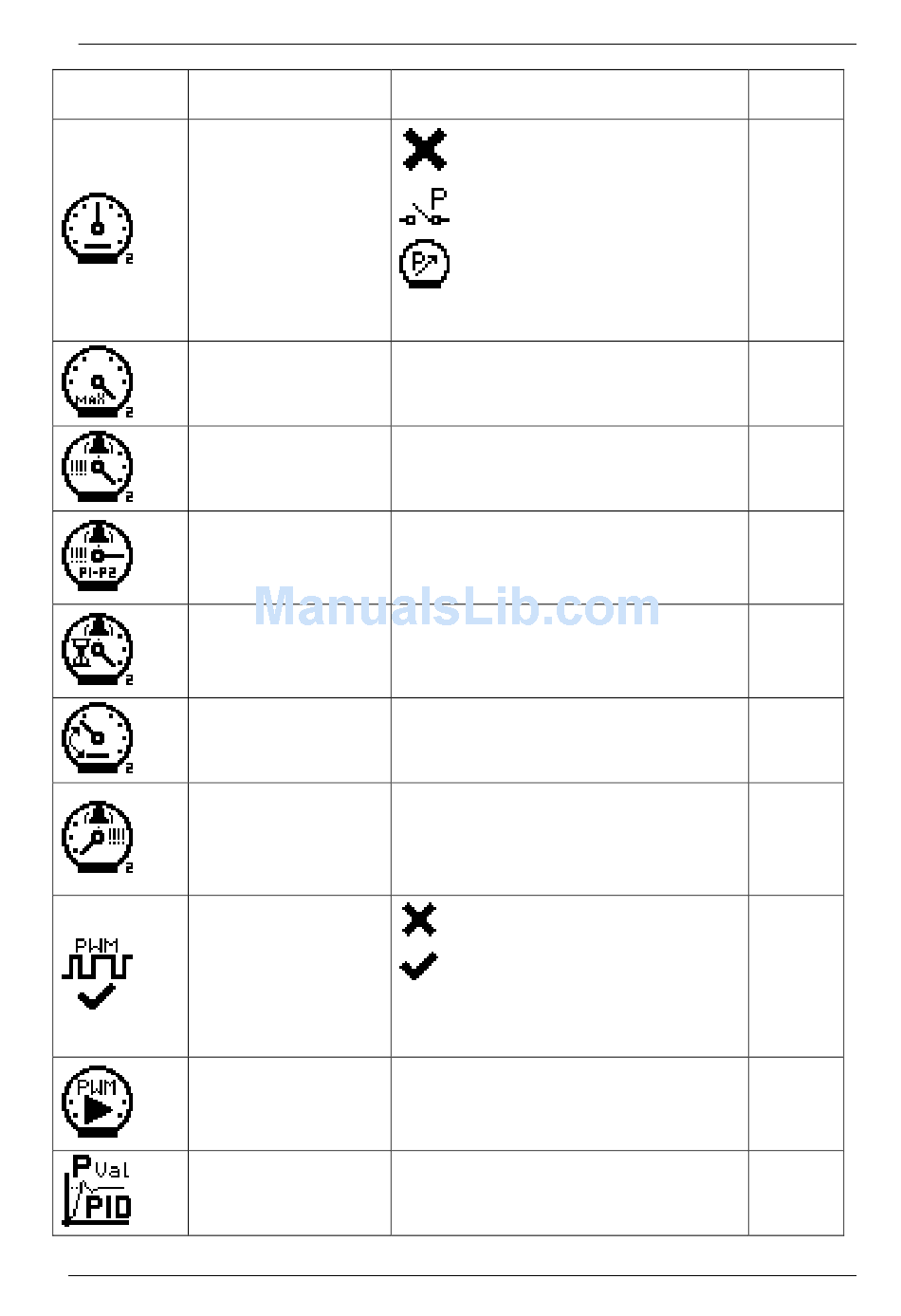

Datakom DK-45 User Manual page 45

DK-45 Kullanım Kılavuzu
ICON and No: DESCRIPTION
PRES-2 SNSR.TYP :
Pressure 2 sensor type
E.40
PRESS.-2 TOP :
Pressure 2 upper
display limit
E.41
HGH PRES-2 ALRM :
High pressure_2 alarm
limit
E.42
DELTA.PRES.ALRM :
Differential pressure
alarm limit (Press1 –
E.43
Press2)
P2 ALARM DELAY :
Differential pressure
alarm delay timer
E.44
P2 SENSOR.OFSET :
Pressure sensor 2 offset
adjustment
E.45
LOW PRES-2 ALRM :
Air pressure sensor 2
low alarm limit. (Alarm
disabled when set to 0.0
E.46
bar)
MOTOR PWM SIGNL :
Analog (0-10V) motor
control signal enable
E.47
PWM SET PRESS. :
Analog (0-10V) motor
control signal set
E.48
pressure
PID P VALUE :
PID control P gain
E.49
ADJUSTMENT LIMITS
0: not connected
1: Pressure switch connected
2: Analog sensor connected
If this parameter is set to 1 then parameters
E.41 ... E.45 will not be visible.
1.7 ... 99.9 Bar
1.2 ... (E.41-0.5)
-10.0 ... +10.0
If the pressure difference P1-P2 stays over
this limit during E.44 period, then ALARM 20
High Differential Pressure is given.
1 ... 600
If the pressure difference P1-P2 stays over
E.43 limit during this period, then ALARM 20
High Differential Pressure is given.
-2 ... +2
0.0: alarm disabled
0.1... (E.42-0.5)
0: Disabled
1: Enabled
If this parameter is set to 0 then parameters
E.48, E.49, E.50, E.51, E.52, E.53 and E.54
will not be visible.
0.5 ... (E.03-0.2)
%0.0 ... 99.9
- 45 -
V1.0 (22.09.2016)
Factory
Set
0
16.0 bar
8.0 bar
0 bar
15 sec
0 bar
1 bar
0
7.0 bar
% 3.0
