3. SCREEN SCROLLING
When the controller powers-on, the top part of the display will show (P1) the first pressure sensor (or first
pressure switch). The pressure unit may be displayed as PSI or Bar following program parameter setting.
The upper visual bar fills up in relation with the current pressure level.
The right end of the bar is always set to the maximum displayable pressure, which is E.03 High Pressure
Alarm Limit.
The left end of the bar is set to the minimum displayable pressure level.
The
(start) icon on the bar indicates the E05. Starting Pressure, the
(stop) icon indicates the E04.
Stop Pressure and the
icon indicates the E.03 High Pressure Alarm Limit.
The bottom part of the display shows (T1) the first temperature sensor. The temperature unit may be °C
(degrees celcius) or °F (degrees Fahrenheit) following program parameter setting.
The lower visual bar fills up in relation with the current temperature.
The right end of the bar is always set to the maximum displayable pressure, which is E.08 High
Temperature Alarm Limit. The left end of the bar is set to the minimum displayable temperature.
The
icon indicates the E.08 High Temperature Alarm Limit.
If a relay output is set as the Fan Relay (see chapter 9), when this relay is active a fan icon will appear at
the bottom right corner of the display screen.
Through parameter setting in the programming menu, (P2) second pressure value or the differential
pressure P2-P1 (DP), (T2) second temperature sensor or the differential temperature T1-T2 (DT) may be
displayed in a second pressure/temperature screen.
All measurement screens are scrolled by depressing the MENU
pushbutton.

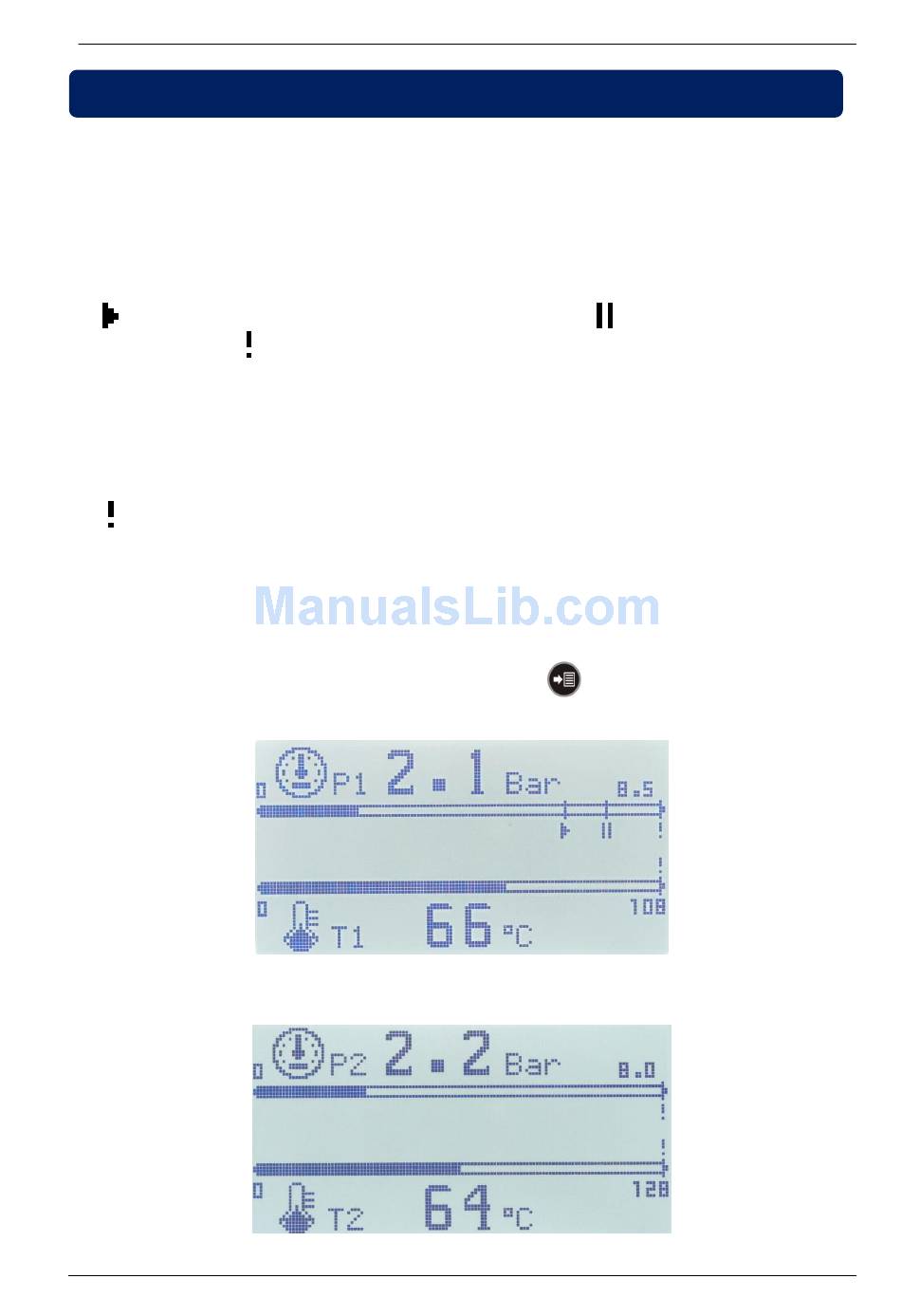

First Pressure/Temperature Screen
Second Pressure/Temperature Screen
