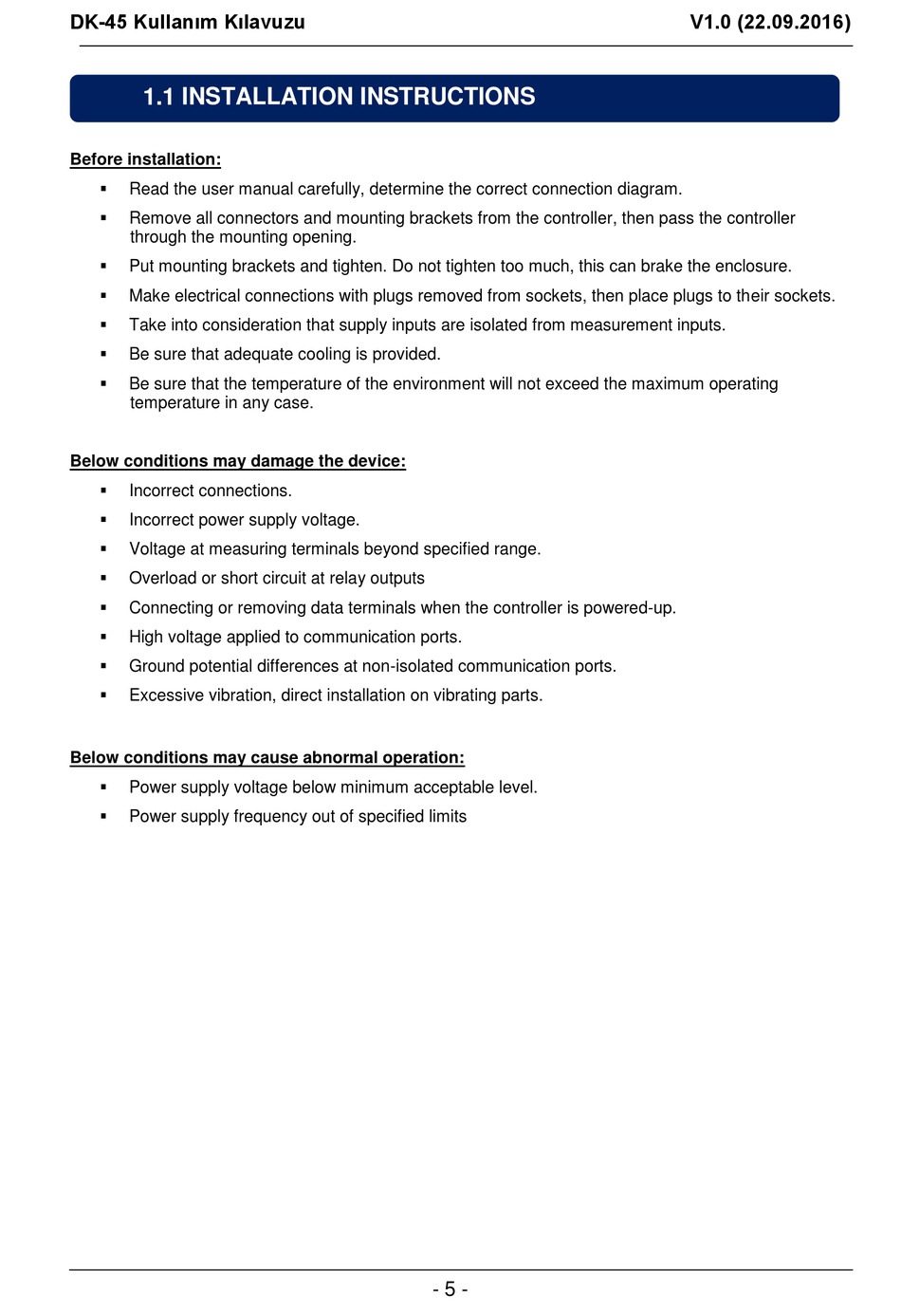

1.1 INSTALLATION INSTRUCTIONS

Before installation:

Read the user manual carefully, determine the correct connection diagram.

Remove all connectors and mounting brackets from the controller, then pass the controller
through the mounting opening.

Put mounting brackets and tighten. Do not tighten too much, this can brake the enclosure.

Make electrical connections with plugs removed from sockets, then place plugs to their sockets.

Take into consideration that supply inputs are isolated from measurement inputs.

Be sure that adequate cooling is provided.

Be sure that the temperature of the environment will not exceed the maximum operating
temperature in any case.
Below conditions may damage the device:

Incorrect connections.

Incorrect power supply voltage.

Voltage at measuring terminals beyond specified range.

Overload or short circuit at relay outputs

Connecting or removing data terminals when the controller is powered-up.

High voltage applied to communication ports.

Ground potential differences at non-isolated communication ports.

Excessive vibration, direct installation on vibrating parts.
Below conditions may cause abnormal operation:

Power supply voltage below minimum acceptable level.

Power supply frequency out of specified limits
