Scanning the measuring area with display of the
concrete covers
6 7 8 9

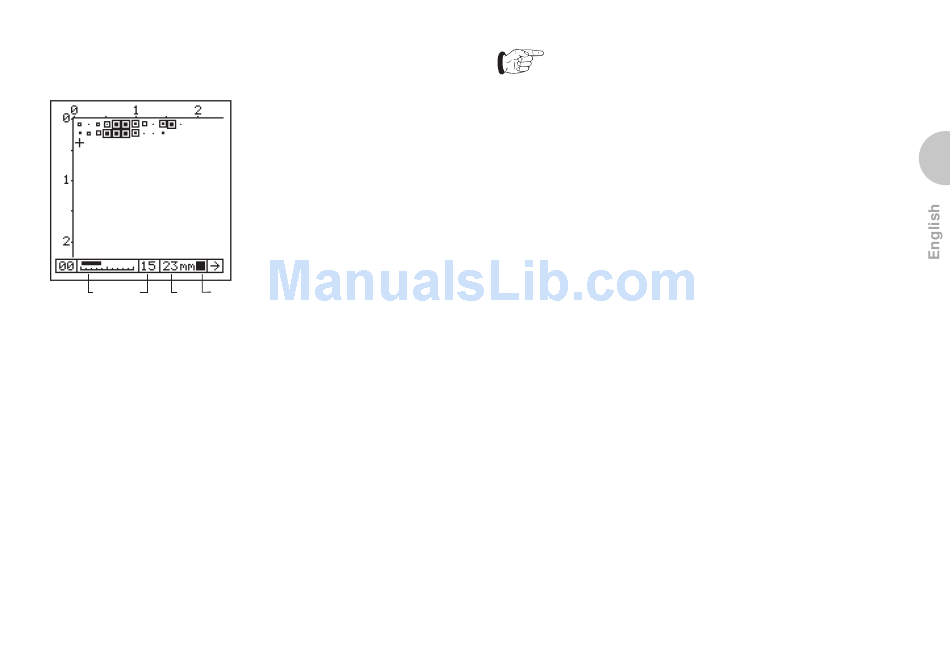

Fig. 5.16 Measuring area after measuring
• If the rebars of the first layer run in a vertical direction
as shown in Fig. 5.14, the travel paths must
be positioned horizontally with the selected grid spa-
cing in direction y. Move the mobile probe along these
paths. In Fig. 5.16, pos. 7, the smallest concrete cover
measured in a grid field is displayed and stored auto-
matically as grey scale.
• After having finished one row, press the ↓ key. The
cursor jumps to below the last field and the arrow
direction changes automatically.
© 2007 Proceq SA
Key:
6 Speed display. The flow
bar must be within the
scale.
7 Smallest measured
concrete cover
8 Current concrete cover
9 Symbol for travelling and
scanning
After every manual or automatic change of the
arrow direction, RESET must be pressed. See
also «RESET process», page 10.
• Once the second row at the edge of the measuring
area (y-axis) is completed, the cursor jumps to below
the last field and the arrow direction changes automa-
tically.
The indicating device operates in the same way if the
travel paths are positioned vertically, i.e. if measuring is
performed in direction y.
• If a hindrance prevents the measurements, you can
shift the cursor by the size of the obstacle.
• Individual values can be deleted by positioning the
cursor on the respective value and pressing the
PRINT/STORE key for two seconds.
• You can subsequently expand the object opened last in
the x and y-direction on new pages comprising 240
measured values.
• For all previous objects, measured values can only be
entered in pages that are not yet full.
• If the measurement cannot be started in the top left
corner (x and y = 0) you can move the cursor to the
starting position using the corresponding arrow keys.
• If you want to reserve pages that will be needed later,
each page has to be selected separately. To confirm
the reservation you can set a grey scale symbol in the
second row using the PRINT/STORE key. The grey
scale symbol can be overwritten or deleted at any time.
Measuring Process 19
