Page 1: Operating Instructions

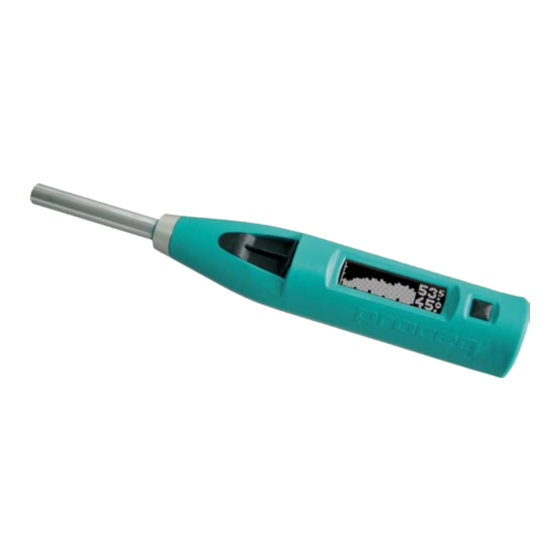

Operating Instructions Paper Roll Hardness Tester ... more than 50 years of know-how you can measure! Made in Switzerland... -
Page 2: Table Of Contents
Operating Instructions Getting Started Safety and Liability General Information Liability Safety Instructions Correct Usage Real Tests Preparation Define a Roll ID for the Test Series Measure the Roll Hardness Profile Terminate the Series and review Entering a Roll ID manually Accept or modify limits Review list Technical Specifications... -
Page 3: Getting Started
100 to 200 impacts. When the display indicates a low battery, connect the PaperSchmidt to the charger or to a PC. Approximately 90 minutes of charging will bring your PaperSchmidt to its full capacity. The PaperSchmidt can be recharged at any time. -
Page 4: Safety And Liability
Serious damage resulting from the effects of foreign bodies, accidents, vandalism and force majeure. All information contained in this documentation is presented in good faith and believed to be correct. Proceq SA makes no warranties and excludes all liability as to the completeness and/or accuracy of the information. Safety Instructions The equipment is not allowed to be operated by children or anyone under the influence of alcohol, drugs or pharmaceutical preparations. -
Page 5: Real Tests
(R oll ID = C ounter) enter R oll ID defined R oll ID 3.6 Ac c ept or modify limits 3.3 Meas ure the R oll Hardnes s P rofile 3.4 T erminate the S eries and review © 2009 by Proceq SA... -
Page 6: Preparation
Method 2 – Manual entry of the Roll ID Scroll to “NEW” and press the SELECT button. Enter the Roll ID on the PaperSchmidt (see 3.5) Accept or modify the upper/lower limits (see 3.6) and begin measuring the roll hardness profile. -
Page 7: Measure The Roll Hardness Profile
50 impacts. However, a single series may contain up to 99 impacts for very large rolls. To see beyond the 50 impacts simply TILT the PaperSchmidt to show the impacts to the right. A marker on the scale at the bottom of the profile shows the “50 ”... -
Page 8: Entering A Roll Id Manually
0R resp. 100R.) To accept the limits displayed press the SELECT button. To modify the limit values, scroll the cursor to the limit you wish to change and press SELECT. Note: If the lower limit is higher than the upper limit, they will be reversed automati- cally © 2009 by Proceq SA... -
Page 9: Review List
(See 3.4) Note: Only the last 20 completed measurement series can be reviewed in the data list. The PaperSchmidt stores many more. The remaining series can only be seen once the data has been put into Paperlink. -
Page 10: Part Numbers And Accessories
Please contact your Proceq business unit or authorized service centre for pricing and availability. 6. Maintenance and Support 6.1 Self test function The PaperSchmidt performs a number of self checks and gives an alert when there is a problem. These three alerts show the Low impact energy: The impact... -
Page 11: Paperlink Software
Connecting to the PaperSchmidt Connect the PaperSchmidt to a USB port, then click on the icon to bring up below window: Leave the settings as default or if you know the COM port you can en- ter it manually. - Page 12 This symbol is either “black” or “greyed out”, which shows whether or not the particular series is included in the summary. The summary view can be adjusted in a similar way to the detailed view of a series.”. © 2009 by Proceq SA...
-
Page 13: Adjusting The Max/Min Settings
Adjusting the max/min settings Maximum and Minimum settings that were used in the PaperSchmidt at the time of the measurement series can be adjusted subsequently in Paperlink. This can be done either by right clicking directly on the item in the appropriate column, or by clicking on the blue setting item in the detailed view of a measurement series. -
Page 14: Deleting And Restoring Data
The menu item “Edit – Delete” allows you to delete one or more selected series from the downloaded data. Note: This does not delete data from the PaperSchmidt, only data in the current project. The menu item “Edit – Select all”, allows the user to select all series in the project for exporting etc. -
Page 15: Pre-Define Roll Ids
This will bring up the following window. Simply type in the names for the series and they are transferred automatically onto the PaperSchmidt. Up to 50 series names can be defined in this way. Each name can be up to 12 characters long. - Page 16 Fax +65 - 6382 - 3307 Phone: +55 11 3083 38 89 info-asia@proceq.com info-southamerica@proceq.com Proceq Asia Pte Ltd Shanghai Rep Office Unit G, 10th Floor, Huamin Empire Plaza No. 728, Yan An Road(W) Shanghai 200050 Tel: +86 21-63177479 / 62122680 / 62122698 Fax: +86 21 63175015 info-china@proceq.com...
