Summary of Contents for Proceq Zehntner ZRM 6013+

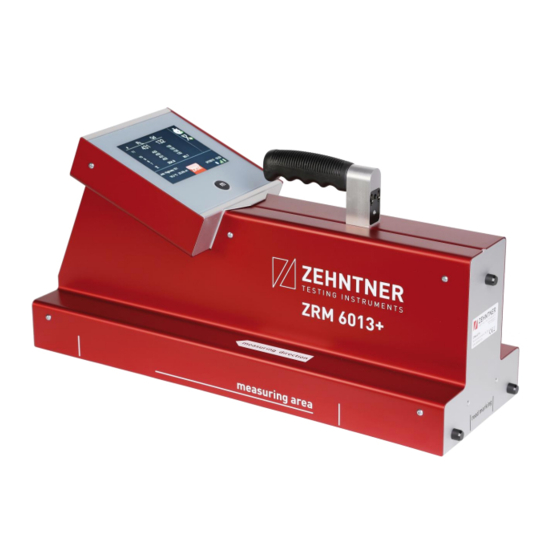

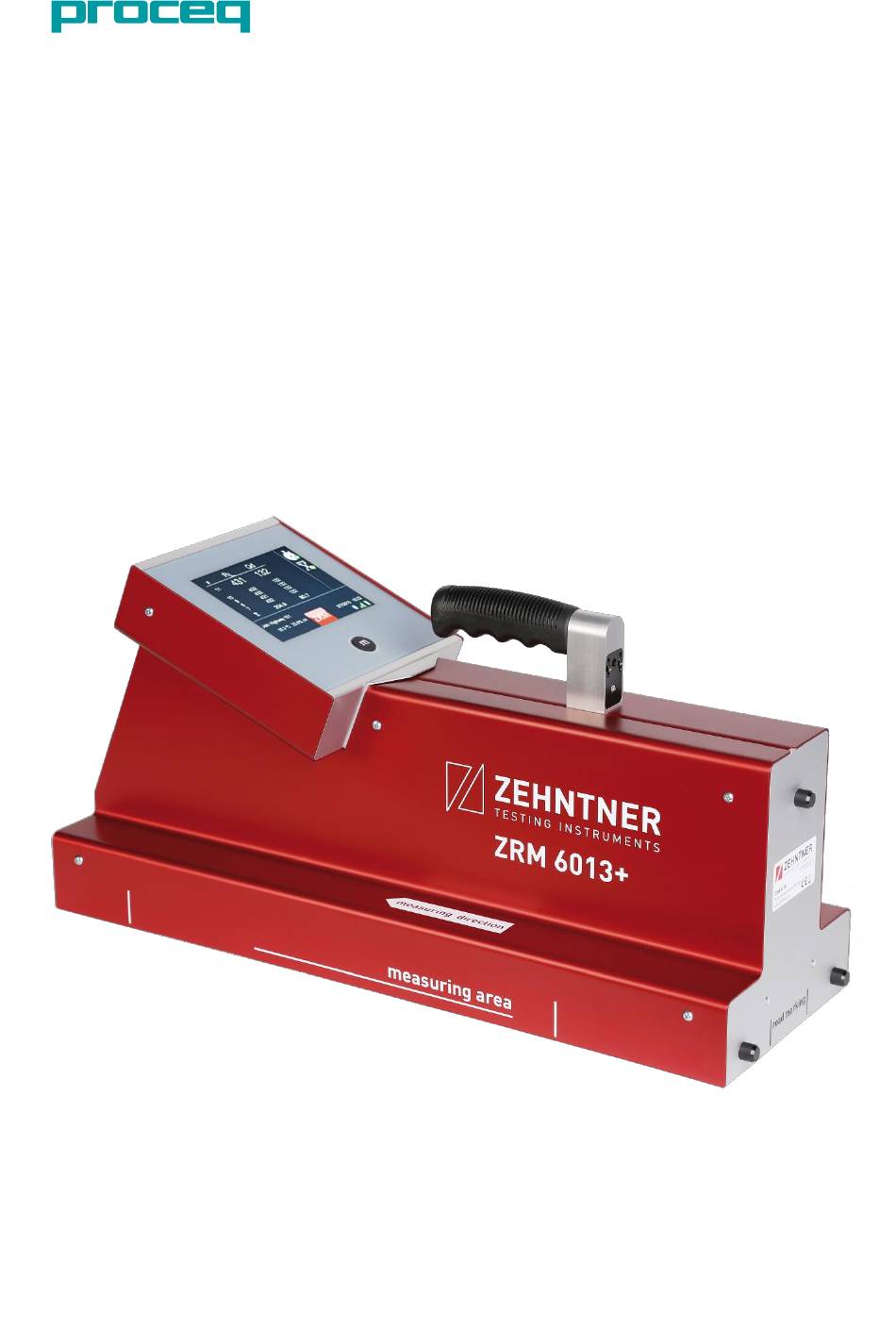

- Page 1 Instruction manual version 1.1 dated 30.07.2014 ZRM 6013+ Retroreflectometer R Firmware as from v.1.2.3...
-
Page 3: Table Of Contents
Introduction ZRM 6013+ Instruction manual version 1.1 Index Exclusion of liability ..............Error! Bookmark not defined. Instrument description ...................... 6 Safety precautions and warning notes ................7 2.1 Dangers ........................7 2.2 Safety notes ......................... 7 Delivery of device ......................8 3.1 Damages during carriage ..................... - Page 4 Introduction ZRM 6013+ Instruction manual version 1.1 10.4 Print ..........................28 10.5 Calibrate ........................29 11. Options ..........................30 11.1 WAAS GPS-unit ......................30 ® 11.2 Bluetooth -interface for data transfer to a PC .............32 11.2.1 Description .....................32 11.2.2 Establishing connection..................32 ® 11.2.2.1 Initial setup of the Bluetooth devices ..........33 11.2.2.2 File transfer ..................38 11.3 Built-in thermal printer ....................39...
- Page 5 version 1.1 ZRM 6013+ Instruction manual Introduction 16.2 Cleaning ........................64 17. Status and error messages ..................... 64 17.1 Status message „Battery voltage is critical” ..............64 17.2 Status message „Please calibrate RL“ ............... 64 17.3 Status message „Please calibrate Qd“ ............... 65 17.4 Error message „Calibration is not OK.”...............
-
Page 6: Exclusion Of Liability
Exclusion of liability Illustrations, descriptions as well as the technical specifications conform to the instruction manual on hand at the time of publishing or printing. However, Proceq SA policy is one of continuous product development. All changes resulting from technical progress, modified construction or similar are reserved without obligation for Proceq SA to update. -
Page 7: Safety Precautions And Warning Notes
Reproduction without permission is not permitted. All maintenance and repair not explicitly allowed and described in this manual (cf. chapter 16 “Maintenance” as from page 64) may only be executed by Proceq SA or your authorized Proceq-agent, otherwise all warranty expires. -
Page 8: Delivery Of Device
/ courier service expires which is normally within 7 days. However, the period could be less. Hence, it is recommended to check the exact time limit when receiving the goods. If there are any damages inform also immediately your authorized Proceq-agent or Proceq directly. page 8... -
Page 9: Standard Delivery
version 1.1 ZRM 6013+ Instruction manual General Standard delivery The following parts are included in the delivery: 1 battery operated retroreflectometer with 5.7" colour touchscreen 1 calibration standard 1 universal battery charger (100 - 240 V, 50 - 60 Hz) 1 mapping and data analysis software "MappingTools"... -
Page 10: Transportation Carrying Case
WAAS GPS unit ® Bluetooth -interface built-in thermal printer Proceq refuses all warranty and liability claims for damages caused by usage of the ZRM 6013+ in combination with non-original accessories, or accessories from 3 party suppliers. page 10 last update: 30.07.2014... -
Page 11: Separate Options
Proceq incl. certificate of calibration voltage converter 12 V/230 V to be plugged into the car cigarette lighter All options can be bought after the sale at Proceq or an authorized agent. Extended handle with ® measuring button, WAAS GPS-unit, Bluetooth -interface, built-in thermal printer and bigger SD flash memory cards require an upgrade of the ZRM 6013+ at the manufacturer. -
Page 12: Quick Guide
Proceq SA Ringstrasse 2 CH-8603 Schwerzenbach Switzerland Phone +41 43 355 38 00 +41 43 355 38 12 info-europe@proceq.com Quick guide Important remarks Before using the ZRM 6013+ for the first time, you need to have read and understood at least the chapter 2 “Safety precautions and warning”... -
Page 13: Average Reading
version 1.1 ZRM 6013+ Instruction manual Quick guide Average reading For activating average reading press on the touchscreen the symbol . If the symbol shown, the average reading is activated. The single values are still displayed. On the left side of the page the measurements are numbered. -
Page 14: Display And Functions
version 1.1 ZRM 6013+ Instruction manual Operate Display and functions Abridged survey (10) (21) (20) (21) Measuring button Quick start menu button Touchscreen Handle Optional extended handle Measuring button of extended handle Fixing screw of optional extended handle Label incl. serial number (10) Optional built-in thermal printer (20) - Page 15 version 1.1 ZRM 6013+ Instruction manual Operate (13) (18) (19) (14) (11) (12) (20) (15) (17) (16) (21) (22) On/off button Measuring button Quick start menu button Touchscreen Handle (11) Host USB-interface (type A) (12) Mini USB-interface (type B) (13) current measuring value (14) Single values...
-
Page 16: Setting Up
Operate ZRM 6013+ Instruction manual version 1.1 Setting up By pressing the on/off button shortly, the instrument is switched on or off respectively. The display will automatically change to the measure mode. If you press the measuring button continuously during switching on you will get directly into the language settings. -
Page 17: Calibrate
Qd has been inscribed. It is valid for 2 years and should be replaced or calibrated at Proceq after this time. The calibration standard delivered with the ZRM 6013+ is not changeable and is valid only for the delivered instrument. -
Page 18: Calibration On Calibration Standard
Operate ZRM 6013+ Instruction manual version 1.1 Calibration on calibration standard If the instrument indicates that the calibration is outdated, or if it is required by the applicable regulations, the ZRM 6013+ has to be calibrated. Take care that the ZRM 6013+ is placed correctly on the included calibration standard. -
Page 19: Calibration On
& Qd we affix a pavement marking tape (road marking foil) on a glass plate and indicate the measuring area. The retroreflection values are measured and certified by Proceq. However, the values of the 2 calibration standard R & Qd may differ because it is more prone to soiling than our regular calibration standard. - Page 20 Operate ZRM 6013+ Instruction manual version 1.1 Front side: ACC175 position marking position marking Back side: Regular calibration should be carried out using the calibration standard which belongs to the instrument (black plate) in accordance with chapter 8.3 “Calibration on calibration standard”...
-
Page 21: Storage
version 1.1 ZRM 6013+ Instruction manual Operate 8.4.2 Storage Handle the carefully in order to protect the glass beads so they will not get detached. The calibration standard has to be protected from dust and soiling. Store protected from light without contact on the surface, e.g. in a cupboard. Store and use it at a temperature around 23°C and at a relative humidity of less than 60%. - Page 22 Operate ZRM 6013+ Instruction manual version 1.1 For calibrating you need to choose “2 standard”. Afterwards you will be shown the information. The standard value needs to be consistent with the retroreflection values mentioned on the label which is on the backside. Adjust the standard value if necessary.
- Page 23 version 1.1 ZRM 6013+ Instruction manual Operate In order to prevent an unintentional calibration to completely wrong values (e.g. if the standard is damaged or soiled or the optic window on the bottom side of the instrument is soiled), you have the possibility to display the deviation in percent from the nominal value of the 2 standard.
-
Page 24: Measure
Operate ZRM 6013+ Instruction manual version 1.1 Measure Measure mode 9.1.1 Taking single measurements By pressing the measuring button the reading is started. During the measuring period which is about 2-3 seconds, you will see „-„ on the top line and the symbol on the top left side. -
Page 25: Taking Wet Measurements
version 1.1 ZRM 6013+ Instruction manual Operate The single values are still displayed. On the left side of the page the measurements are numbered. On the bottom line you see the symbol for the average reading where you see the current average. For editing or deleting such a measurement please refer to chapter 9.1.4 „Edit, delete and store measurements”... -
Page 26: Edit, Delete And Store Measurements
Operate ZRM 6013+ Instruction manual version 1.1 9.1.4 Edit, delete and store measurements If you wish to e.g. edit a measuring value from the list of the measuring window, you have to press on the specific line and an editing menu beside the list will be opened. -
Page 27: Common Information For A Proper Measuring Procedure
The ZRM 6013+ is capable of measuring profiled road markings with profiles up to 5 mm. However, if the profile is higher than 5 mm you will need to follow a certain procedure in order to get reasonable values. This instruction is available at Proceq or at an authorized Proceq-agent. 9.3.2 Local regulations Please observe that some countries have regulations regarding the measuring procedure. -
Page 28: Quickstart Menu
Operate ZRM 6013+ Instruction manual version 1.1 10. Quickstart menu By pressing the button you get to the quickstart menu. 10.1 Menu Press the button to get into the menu where you can set different settings. The menu is explained in chapter 14 „Menu“ as from page 46. 10.2 Navi This is an option at extra cost. -
Page 29: Calibrate
version 1.1 ZRM 6013+ Instruction manual Operate 10.5 Calibrate Press the symbol to open the calibration function. In the standard setting there are listed night visibility RL and day visibility Qd to be calibrated on the calibration standard. By pressing trigger the calibration. -
Page 30: Options
version 1.1 ZRM 6013+ Instruction manual Options 11. Options 11.1 WAAS GPS-unit The ZRM 6013+ offers the possibility to store the GPS coordinates of a measurement. If the ZRM 6013+ is switched on and is equipped with WAAS GPS-unit, there will be a GPS status indication besides the battery status indication. - Page 31 version 1.1 ZRM 6013+ Instruction manual Options The GPS status indication is related to the HDOP (Horizontal Dilution of Precision). DOP Value Rating Description This is the highest possible confidence level to be used for Ideal applications demanding the highest possible precision at all times. At this confidence level, positional measurements are considered Excellent accurate enough to meet all but the most sensitive applications.
-
Page 32: Bluetooth -Interface For Data Transfer To A Pc
Options ZRM 6013+ Instruction manual version 1.1 11.2 ® Bluetooth -interface for data transfer to a PC 11.2.1 Description ® The ZRM 6013+ offers the possibility of transferring data to a Bluetooth enabled PC/laptop within seconds. For transferring data the OBEX (Object Exchange) protocol is used. The following functions are provided: •... -
Page 33: Initial Setup Of The Bluetooth
version 1.1 ZRM 6013+ Instruction manual Options ® 11.2.2.1 Initial setup of the Bluetooth devices ® In order to establish a connection over Bluetooth between the ZRM 6013+ and a PC/laptop, both devices have to be set up properly. This initial setup has to be made only once for each device. - Page 34 Options ZRM 6013+ Instruction manual version 1.1 Make your device visible checking “Allow Bluetooth devices to find this computer”. The ZRM 6013+ starts loading the Bluetooth settings. ® It might be necessary to reload the screen using the backwards arrow selecting “Bluetooth ”.
- Page 35 version 1.1 ZRM 6013+ Instruction manual Options ® Visible Bluetooth devices within reach of the ZRM 6013+ are displayed. Select the desired device by pressing on its name. By selecting a device it will be set automatically as the default device and will be registered with the pin 1234.
- Page 36 Options ZRM 6013+ Instruction manual version 1.1 Choose the device “ZRM 6013+” and press “Next”. Choose “Enter the device’s pairing code” and press “Next”. Enter the pin code 1234 and press “Next”. This message indicates a successful pairing of the ZRM 6013+”...
- Page 37 version 1.1 ZRM 6013+ Instruction manual Options Go to the “Services” tab and check “File Transfer (Obex)”. Click “Apply” to save the changes, and then close the window. In case the “File Transfer (Obex)” service is not available, you have to install the WIDCOMM ®...
-
Page 38: File Transfer
Options ZRM 6013+ Instruction manual version 1.1 11.2.2.2 File transfer ® This chapter describes how to proceed for establishing a Bluetooth connection to the PC/laptop after the initial setup as described in chapter 11.2.2.1 on page 33 has been carried out. Do not proceed without prior initial setup. Prepare the ZRM 6013+ for file transfer by pressing and selecting “Setup”... -
Page 39: Built-In Thermal Printer
version 1.1 ZRM 6013+ Instruction manual Options Click on “Browse the files on the (ZRM 6013+) computer”. The ZRM 6013+ is displayed like a USB-flash drive, and all common file and folder operations (move / delete / copy) are available. You might have to press “F5”... -
Page 40: Archive
version 1.1 ZRM 6013+ Instruction manual Archive 12. Archive All stored files are located in the archive. By you open the archive (memory). In case measurements are not stored automatically, the settings have been changed. This is described in chapter 14.3.2 „Auto save measurements” on page 48. -
Page 41: Overview Measurements (Sorted)
version 1.1 ZRM 6013+ Instruction manual Archive 12.2 Overview measurements (sorted) In the first column you see the R -values and in the second column the Qd-values. In the third column there are listed the date, time, the number of single measurements e.g. -
Page 42: Input Of Additional Information
Archive ZRM 6013+ Instruction manual version 1.1 12.4 Input of additional information Further below this list, you can add or change additional information to the measurement entry such as Location, Street and so on. For changing the Location, press this line and afterwards the icon „Edit“... -
Page 43: Data Export And Mappingtools Software
Data export ZRM 6013+ Instruction manual version 1.1 13. Data export and MappingTools software 13.1 Interfaces The ZRM 6013+ is equipped for data export with the following interfaces: Host USB-interface (type A) for external units such as USB-stick and keyboard. Client USB-interface (type B mini) for connection to a 13.2 PC Mode... -
Page 44: Storing The Measuring Data On A Usb Flash Drive
Data export ZRM 6013+ Instruction manual version 1.1 13.3 Storing the measuring data on a USB flash drive An alternative to using a PC connection would be to store the archive on a USB-stick as described in chapter 12.6 „Storing the measuring data on a USB flash drive” on page 42. Evaluation and mapping software „MappingTools“... -
Page 45: Data Export To Microsoft Excel
version 1.1 ZRM 6013+ Instruction manual Data export If the ZRM 6013+ is equipped with the optional WAAS GPS-module and there was signal when the measurements have been taken, then the measurements will be displayed in the mapping browser. 13.5 Data export to Microsoft Excel After opening the measuring data using the „MappingTools“... -
Page 46: Menu
Menu ZRM 6013+ Instruction manual version 1.1 14. Menu 14.1 Menu structure first menu level second menu level third menu level Measure mode Geometries: RL/Qd Select user Auto save measurements User role Measure Mode Average: on/off New user Edit user Delete user Timers Year... -
Page 47: Navigation In The Menu
version 1.1 ZRM 6013+ Instruction manual Menu 14.2 Navigation in the menu Press the button to get into the menu where you can set different settings. Activate, deactivate, scroll and exit the menu as described in chapter 7 “Navigation” on page 16. On the top of each window you can read in which menu you are. -
Page 48: Auto Save Measurements
Menu ZRM 6013+ Instruction manual version 1.1 14.3.2 Auto save measurements and selecting “Measure mode” Path: -> The default settings are set that every measurement is stored in the archive (memory). 14.3.3 Average and selecting “Measure mode” Path: -> Here you can activate average readings. A faster way would be to press on the touchscreen the symbol . -
Page 49: Interval Timer
version 1.1 ZRM 6013+ Instruction manual Menu The backwards counting wet timer can be set between 2 and 1’000 seconds. In the mode “Single” the wet timer will be deactivated after each measurement. This is shown after the measurement on the display in the measure mode by the icon In the mode “Continuous”... - Page 50 Menu ZRM 6013+ Instruction manual version 1.1 Here you can set the interval time between 5 and 1’000 seconds. Here you can set the interval counts between 2 and 500. If both timers are activated, all current timer settings are shown. page 50 last update: 30.07.2014...
-
Page 51: Practical Sample Of Interval Timer
version 1.1 ZRM 6013+ Instruction manual Menu 14.4.3 Practical sample of interval timer The interval timer can be used e.g. to define the performance of the retroreflection of a marking in dependence on the effluent water at wet measurements. At the interval timer the first measurement starts right after pressing the measuring button . - Page 52 Menu ZRM 6013+ Instruction manual version 1.1 Using this table, you are able to create a diagram for showing the R performance: Practical sample measurements using interval timer Measurements For the interpretation of the above measuring data, we give you the following explanation: Date Seconds after start Measurement No.
-
Page 53: Practical Sample Combination Of Wet Timer And Interval Timer
version 1.1 ZRM 6013+ Instruction manual Menu 14.4.4 Practical sample combination of wet timer and interval timer The interval timer can be used e.g. to define the performance of the retroreflection of a marking in dependence on the effluent water at wet measurements. A combination of the wet timer and interval timer makes sense if the interval measurements should not start immediately after moistening of the road marking. - Page 54 Menu ZRM 6013+ Instruction manual version 1.1 Excel Measuring report exported using MappingTools: Job Name: Default ZRM 6013+ Device Name: Serial Number: 480006013+ Number of Date Measurements RL (mcd/lx/m²) (mcd/lx/m²) Location Serial Number 04.03.2014 14:00 257 Sissach 480006013+ 04.03.2014 14.00 257 Sissach 480006013+ 04.03.2014 14.00...
-
Page 55: Jobs
version 1.1 ZRM 6013+ Instruction manual Menu 14.5 Jobs and selecting “Jobs” Path: -> The ZRM 6013+ offers the possibility to relate measurements to a specific job. Depending on the type of your company (contractor, road laboratory, manufacturer of road marking materials) a job could be a specific client, the development of product “xy”... -
Page 56: Language
The current language is marked with If you want to contribute and translate a new language or if you have some comments on an existing language, please feel free to contact Proceq. 14.6.3 Date and time and selecting “Setup” Path: ->... -
Page 57: Sound
version 1.1 ZRM 6013+ Instruction manual Menu If there is no action the instrument will shut off once the “Auto off time” has been reached. You can choose between given “Auto off time” from “2 minutes” up to “120 minutes”. You can switch off the instrument also by pressing the on/off button shortly. -
Page 58: Bluetooth -Interface
Menu ZRM 6013+ Instruction manual version 1.1 The current database in use is marked with If deleting a database, please always make sure that you select a database which is no longer used. It might be reasonable having a backup on a computer or USB flash drive. -
Page 59: Calibration
version 1.1 ZRM 6013+ Instruction manual Menu At both lists you are able to have the following information: Location, Street, Position, Section, Direction, Line, Type, Remarks, Producer, Product, Manufacture-no, Certificate, Glass beads, Type, Mixture, Batch no, Supplier, Product, Type, Batch no 14.6.9 Calibration and selecting “Setup”... -
Page 60: Options
Menu ZRM 6013+ Instruction manual version 1.1 The current unit of length is indicated by 14.6.11 Options and selecting “Setup” Path: -> In this menu you are able to activate or deactivate additional functions. These settings are stored in the user profile. 14.6.12 Reset settings to factory default and selecting “Setup”... - Page 61 version 1.1 ZRM 6013+ Instruction manual Menu • Device name • Last calibration • Device version • Device serial number • Software version • Disk space • Measurement counter last update: 30.07.2014 page 61...
-
Page 62: Built-In Battery And Charging
Maintenance ZRM 6013+ Instruction manual version 1.1 15. Built-in battery and charging 15.1 Battery The used LI-Ion-Mn battery has a very high capacity. The capacity is continuously being observed. When the voltage becomes too weak the battery sign shows on the display and the battery has to be charged. -
Page 63: Charging
If possible, the battery should always be charged completely which is shown with the green charging status indication light. The battery may only be replaced by Proceq or by an authorized Proceq-agent! If you have not used your ZRM 6013+ during several months, the battery should be charged before using. -
Page 64: Maintenance
16.2 Cleaning We recommend that the instrument is checked and certified by Proceq once a year. Otherwise clean the instrument periodically using water- and oil-free compressed air (max. 1.5 to 2 bar), or wipe the exit window on the bottom of the optics housing with a soft brush. -
Page 65: Status Message „Please Calibrate Qd
version 1.1 ZRM 6013+ Instruction manual Maintenance For solving this status message, you should carry out a calibration as described in chapter 8 “Calibrate” as from page 17. If you are sure that it is not necessary to carry out a calibration, you can press “Acknowledge all”... -
Page 66: Bluetooth Error Message "No New Devices Found
The instrument has been calibrated in the factory 2 years ago or even more time ago. It should be sent back to the manufacturer for checking, calibration and certification. Contact Proceq or your authorized Proceq-agent for returning the unit. error message “No new devices found” 17.6 ®... -
Page 67: Reset Of Zrm 6013
version 1.1 ZRM 6013+ Instruction manual Maintenance 17.8 Reset of ZRM 6013+ If the firmware of the ZRM 6013+ has a hang-up, you can reset the instrument by pressing the on/off button for at least 8 seconds. last update: 30.07.2014 page 67... -
Page 68: Graphical Illustration Of The Measuring Principles
Technical specifications ZRM 6013+ Instruction manual version 1.1 18. Graphical illustration of the measuring principles 18.1 Night visibility R RL is the coefficient of retroreflected luminance (night visibility) of of road markings. The observation angle of 2.29° corresponds to the viewing distance of a vehicle driver of 30 m under normal conditions. -
Page 69: Technical Specifications
version 1.1 ZRM 6013+ Instruction manual Technical specifications 19. Technical specifications Equivalent observation distance: 30 m, according to CEN-geometry Observation angle: EN 1436: 2,29° ASTM E 1710: 1.05° Illumination angle: : EN 1436: 1,24° : ASTM E 1710: 88,76° Qd: diffuse 52 mm x 218 mm (2.05”... -
Page 70: Glossary
Glossary ZRM 6013+ Instruction manual version 1.1 Glossary Accumulator Calibration ..........16 Capacity ......... 56, 62 2nd calibration standard ....... 18 Charging ..........63 Calibration failure ......... 65 Replacing ..........63 Calibration standard ......17 Status indication ........62 Factory calibration ........ 66 Last calibration ........ - Page 71 version 1.1 ZRM 6013+ Instruction manual Glossary Edit Geometry Archive ..........40 Qd ..........47, 68 Database ..........57 RL ..........47, 68 Jobs ............ 55 Measurements ........25 Activation ..........60 User ............ 55 Coordinates ........29, 40 Energy Deactivation .........
- Page 72 Glossary ZRM 6013+ Instruction manual version 1.1 Maintenance .......... 64 Navigation ..........27 Calibration ..........16 Activation ..........15 Charging ..........63 Deactivation ......... 15 Cleaning ..........64 Exit ............15 Thermo paper roll ......... 64 Scrolling ..........15 MappingTools ........43 Mean values ..........
- Page 73 version 1.1 ZRM 6013+ Instruction manual Glossary Report ........... 27 Technical data ........69 Reset Technical specifications ...... 69 Factory settings ........60 Temperature .......... 40 ZRM 6013+ ......... 67 Activation ..........60 Deactivation ......... 60 Measuring principle ......68 Units ............
- Page 76 Subject to change. Copyright © 2017 by Proceq SA, Schwerzenbach. All rights reserved. www.proceq.com Version 1.1 dated 30.07.2014...
