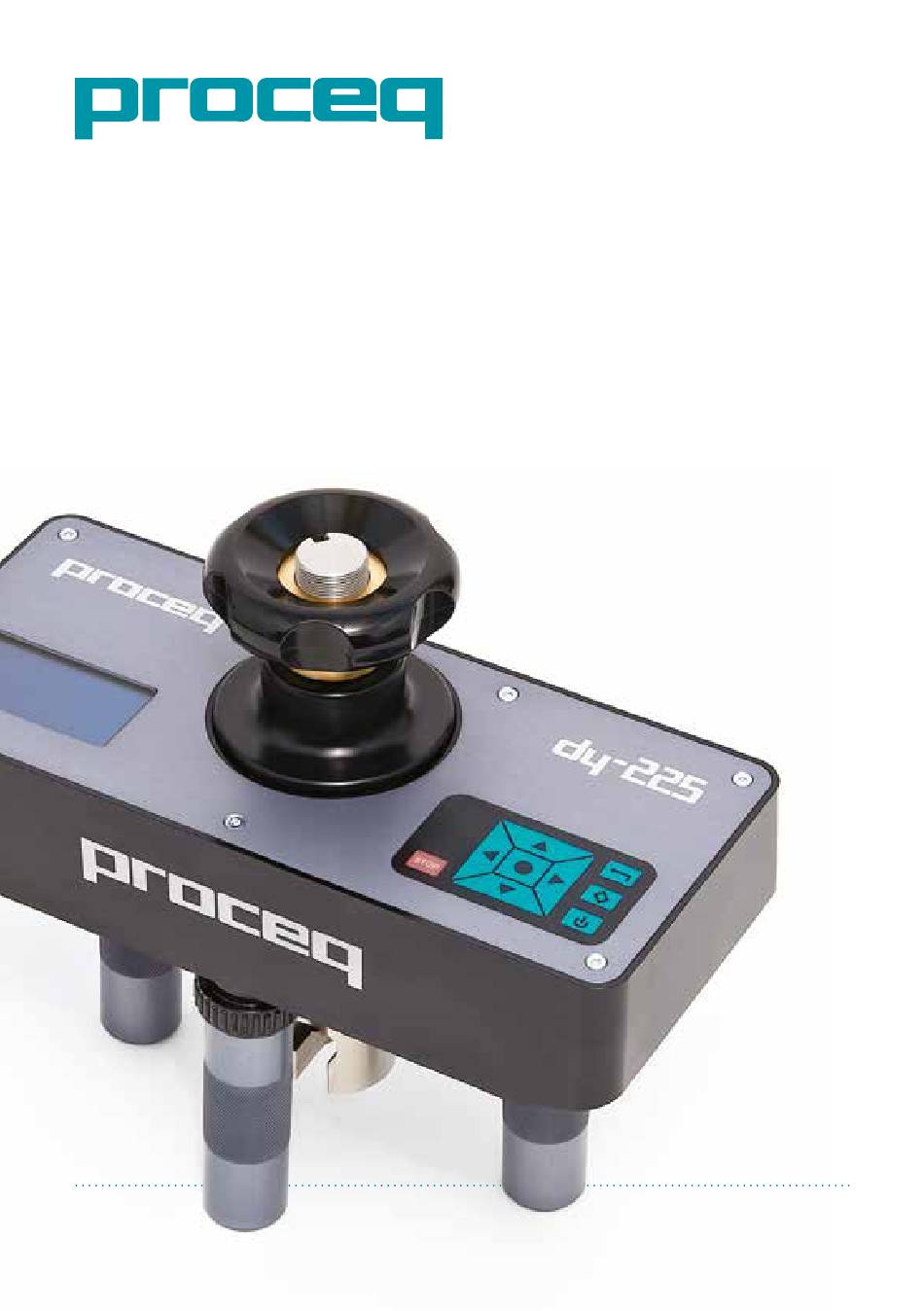

Proceq DY-2
Operating Instructions
Swiss Precision since 1954

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DY-2 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Proceq DY-2 series

Summary of Contents for Proceq DY-2 series

  • Page 1 Proceq DY-2 Operating Instructions Swiss Precision since 1954...

  • Page 3: Table Of Contents

    Proceq DY-2 Models ........4...

  • Page 4: Safety And Liability

    All information contained in this documentation is presented in good faith and believed to be cor- rect. Proceq SA makes no warranties and excludes all liability as to the completeness and/or ac- curacy of the information. 1.3 Safety Instructions The instrument is not allowed to be operated by children or anyone under the influence of alcohol, drugs or pharmaceutical preparations.

  • Page 5: Standards And Equipment Selection

    Ø 50mm 100 N/s for concrete Transport. Additional technical 300N/s for elastic contract conditions and guide- surfaces (Proceq lines for engineering buildings DY-206, Proceq DY- and the repair of concrete 216 recommended components for elastic surfaces) © 2014 Proceq SA...

  • Page 6: Proceq Dy-2 Models

    • Proceq DY-216 covering most applications. Recommended for elastic surfaces due to higher requirement on load rate. • Proceq DY-225 required for compliance with ASTM C 1583. Typically used for testing of fibre reinforced polymers bonded to concrete structures. The table below shows the recommended working range with a selection of test discs to help you ascertain which model is most suited to your application.

  • Page 7: Getting Started

    7 Draw spindle 8 Coupling for the draw bolt 3.2 The Proceq DY-2 Operating Panel Use the navigation keys to highlight a menu item and press the center key to select it. Back button – Returns to the previous menu without making any changes 2nd Function button –...

  • Page 8: The Proceq Dy-2 Menu

    • Return to the main menu from the information screen by pressing the center key or the back button. The instrument shuts down automatically after 5 minutes of inactivity. 3.3 The Proceq DY-2 Menu On start-up the main menu screen will be shown.
  • Page 9 • When testing on softer or elastic materials it is possible that the test disc does not separate completely from the substrate. Setting this parameter to 0 % will ensure that the instrument continues pulling until the maximum stroke of 5mm is achieved. © 2014 Proceq SA...
  • Page 10 Test Duration Diameter Effective Area Load Rate • Press the left and right navigation keys to switch between the main test result (see above) and the failure mode reporting screens (see below). Details see chapter 5.3. © 2014 Proceq SA...

  • Page 11: Performing A Pull-Off Test With Proceq Dy-2

    5. Performing a Pull-Off Test with Proceq DY-2 Proceq DY-2 is designed to make it very easy to work according to the various standards for pull- off testing. It allows the user to specify a load rate and provides a graphical display (via DY-Link software) of the effective load rate achieved during the test.

  • Page 12: Measurement Procedure

    Test disc • Waiting for the adhesive to set. • Fixing the draw bolt to the test disc. (Proceq DY-2 test discs use a 10mm draw bolt. 8mm and 12mm draw bolts are also available). • Fit the draw bolt to the coupling.

  • Page 13: Peak Load, Test Duration And Effective Load Rate

    Pull-off testing from a single side, is best suited for rigid substrates. Deformable substrates or elas- tic coatings can lead to a falsification of the results of a pull-off test. Proceq DY-2 provides the tools to help in the analysis when testing on such materials.

  • Page 14: Failure Mode Recording

    Many standards also require the user to record the mode of failure in varying degrees of complex- ity. Proceq DY-2 allows the user to record the failure mode with the test result for comprehensive reporting. The possibility to record the failure is flexible enough to accommodate the requirements of the various standards.

  • Page 15: Accessories

    6. Accessories 6.1 Working with large test discs The standard Proceq DY-2 configuration can be used with test discs up to 50mm diameter or 50 x 50mm square. Adapter plate for large test discs The adapter plate (Part No. 346 10 530) accommodates all test discs in the Proceq range.

  • Page 16: Ordering Information

    Fixing kit for vertical and overhead surfaces Note: Proceq test discs require an M10 draw bolt. The M8 and M12 draw bolts are for use with test discs not supplied by Proceq. For the 25kN instrument an M10 draw bolt is required for forces above 16kN.

  • Page 17: Technical Specifications

    1500 complete test cycles. Support Concept Proceq is committed to providing a complete support service for this instrument by means of our global service and support facilities. It is recommended that the user register the product on www.

  • Page 18: Dy-Link Software

    Download Data Connect the Proceq DY-2 to a USB port, then click on this icon to download all data from the instrument. Click on the double arrow icon in the “Slot No.” column to see the load rate graph.
  • Page 19 Finish by clicking on export to select the file location, name the file and in the case of a graphical output to set the output graphic format: .png, .bmp or .jpg Data editing The menu item “Edit” allows you to "select all", "copy", "paste" and "delete" measurements from the downloaded data. © 2014 Proceq SA...
  • Page 20 Select the menu item “Device – Delete all measurements object on Proceq DY-2” to delete all data stored on the Proceq DY-2. A warning will be given when all of the data is about to be deleted. Confirm to delete. It is not possible to delete individual series.
  • Page 21 Proceq DY-2 to see the saved curve data. Calibration Proceq Proceq DY-2 is calibrated according to EN ISO 7500-1 Annex C - Alternative Method of Testing Machine Classification. This software allows a re-calibration or a reset to an earlier saved calibration.
  • Page 22 Notes © 2014 Proceq SA...
  • Page 23 Notes © 2014 Proceq SA...
  • Page 24 Five Continent International Mansion, No. 807 Zhao Jia Bang Road Shanghai 200032 Phone +86 21-63177479 +86 21 63175015 info-china@proceq.com Subject to change without notice. Copyright © 2014 by Proceq SA, Schwerzenbach. All rights reserved. Part number: 82034601E ver 12 2014 © 2014 Proceq SA...
