UNIVIEW NVR201-04E User Manual page 9

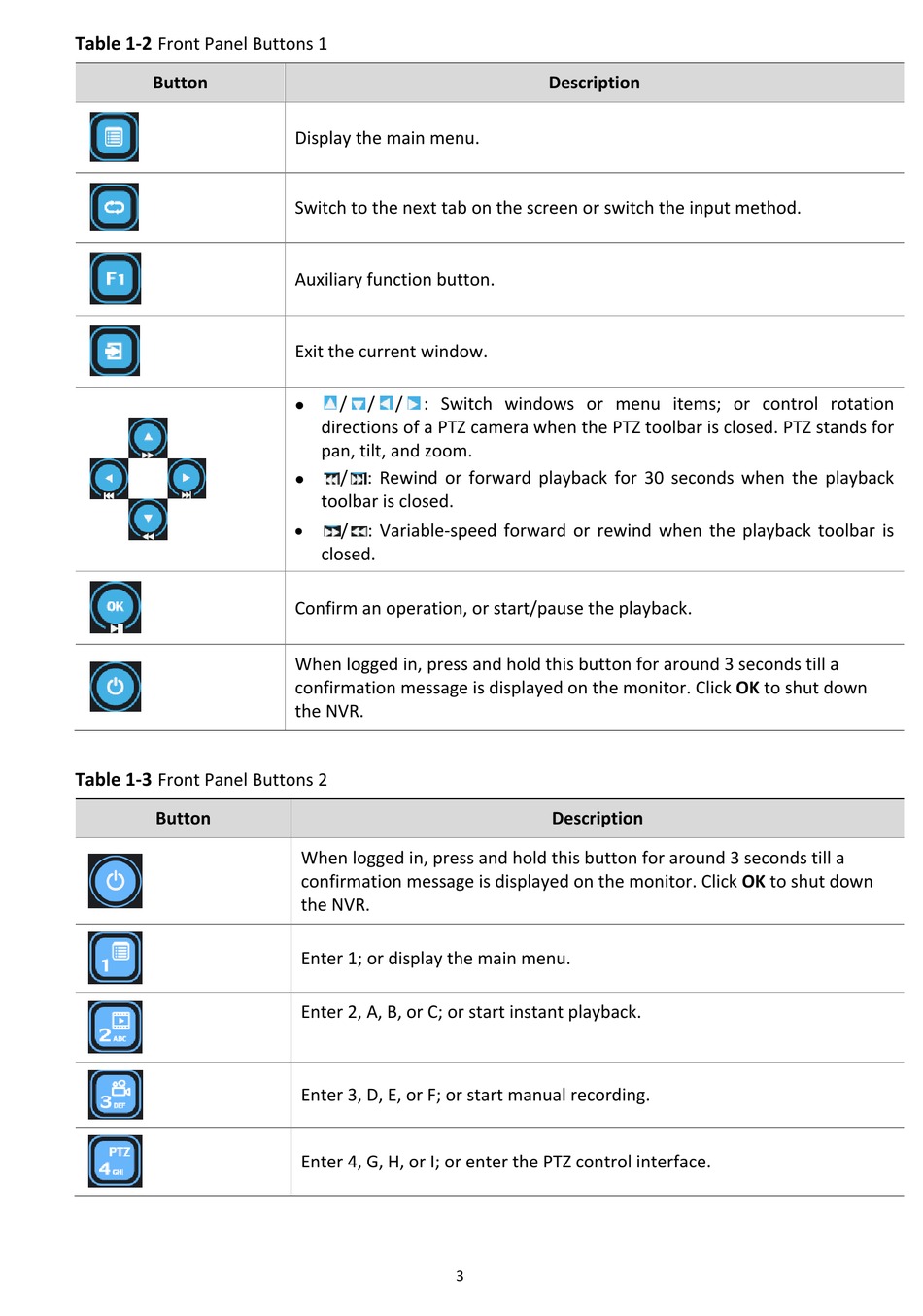

Table 1-2 Front Panel Buttons 1
Button
Table 1-3 Front Panel Buttons 2
Button
Display the main menu.
Switch to the next tab on the screen or switch the input method.
Auxiliary function button.
Exit the current window.
/ / / : Switch windows or menu items; or control rotation

directions of a PTZ camera when the PTZ toolbar is closed. PTZ stands for
pan, tilt, and zoom.
/ : Rewind or forward playback for 30 seconds when the playback

toolbar is closed.

/ : Variable-speed forward or rewind when the playback toolbar is
closed.
Confirm an operation, or start/pause the playback.
When logged in, press and hold this button for around 3 seconds till a
confirmation message is displayed on the monitor. Click OK to shut down
the NVR.
When logged in, press and hold this button for around 3 seconds till a
confirmation message is displayed on the monitor. Click OK to shut down
the NVR.
Enter 1; or display the main menu.
Enter 2, A, B, or C; or start instant playback.
Enter 3, D, E, or F; or start manual recording.
Enter 4, G, H, or I; or enter the PTZ control interface.
3
Description
Description
