UNIVIEW NVR201-04E User Manual page 24

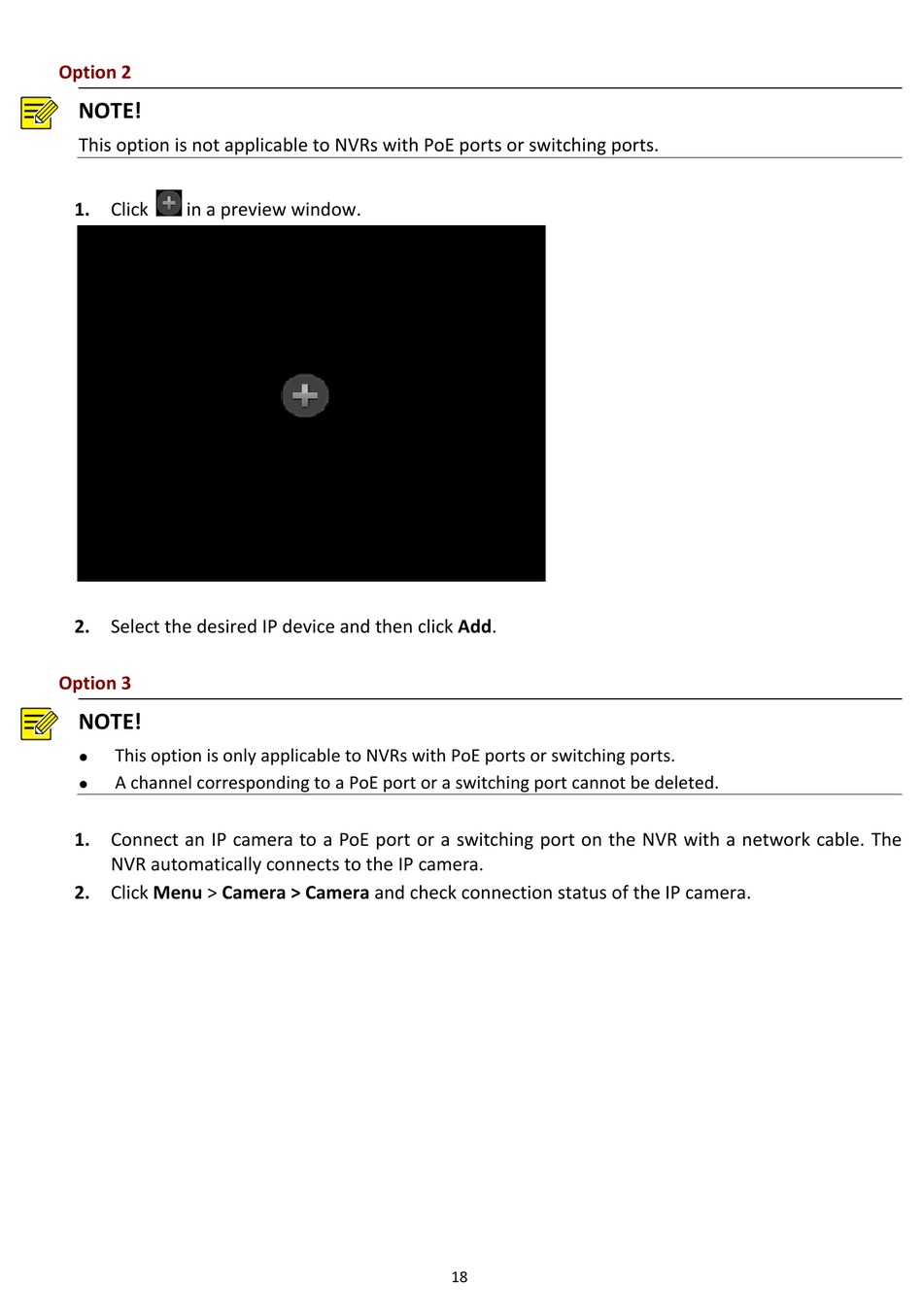

Option 2
NOTE!
This option is not applicable to NVRs with PoE ports or switching ports.
1. Click in a preview window.
2. Select the desired IP device and then click Add.
Option 3
NOTE!
This option is only applicable to NVRs with PoE ports or switching ports.

A channel corresponding to a PoE port or a switching port cannot be deleted.

1. Connect an IP camera to a PoE port or a switching port on the NVR with a network cable. The
NVR automatically connects to the IP camera.
2. Click Menu > Camera > Camera and check connection status of the IP camera.
18
