Button

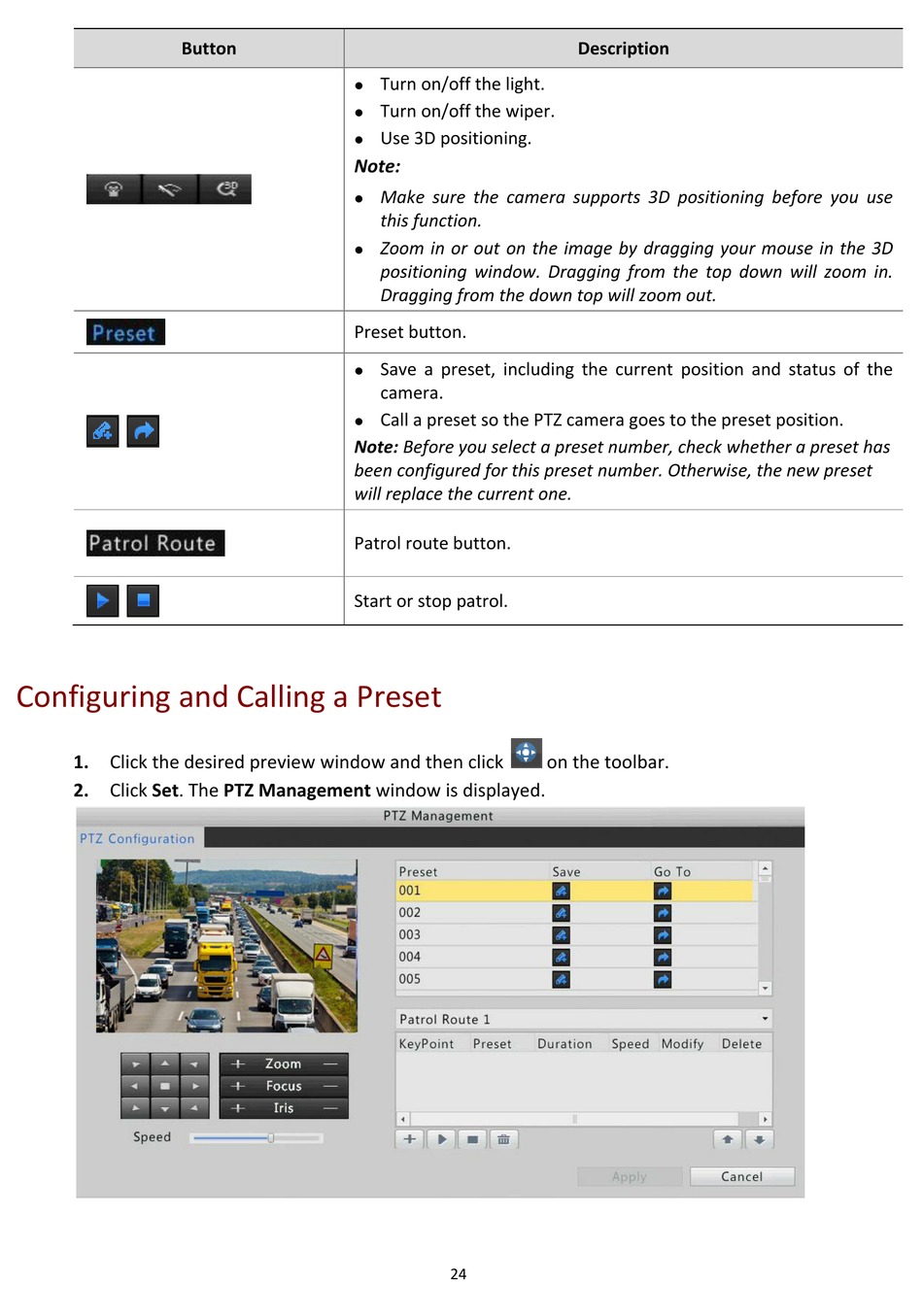

Configuring and Calling a Preset

1. Click the desired preview window and then click
2. Click Set. The PTZ Management window is displayed.
Turn on/off the light.

Turn on/off the wiper.

Use 3D positioning.

Note:
Make sure the camera supports 3D positioning before you use

this function.
Zoom in or out on the image by dragging your mouse in the 3D

positioning window. Dragging from the top down will zoom in.
Dragging from the down top will zoom out.
Preset button.
Save a preset, including the current position and status of the

camera.
Call a preset so the PTZ camera goes to the preset position.

Note: Before you select a preset number, check whether a preset has
been configured for this preset number. Otherwise, the new preset
will replace the current one.
Patrol route button.
Start or stop patrol.
24
Description
on the toolbar.
