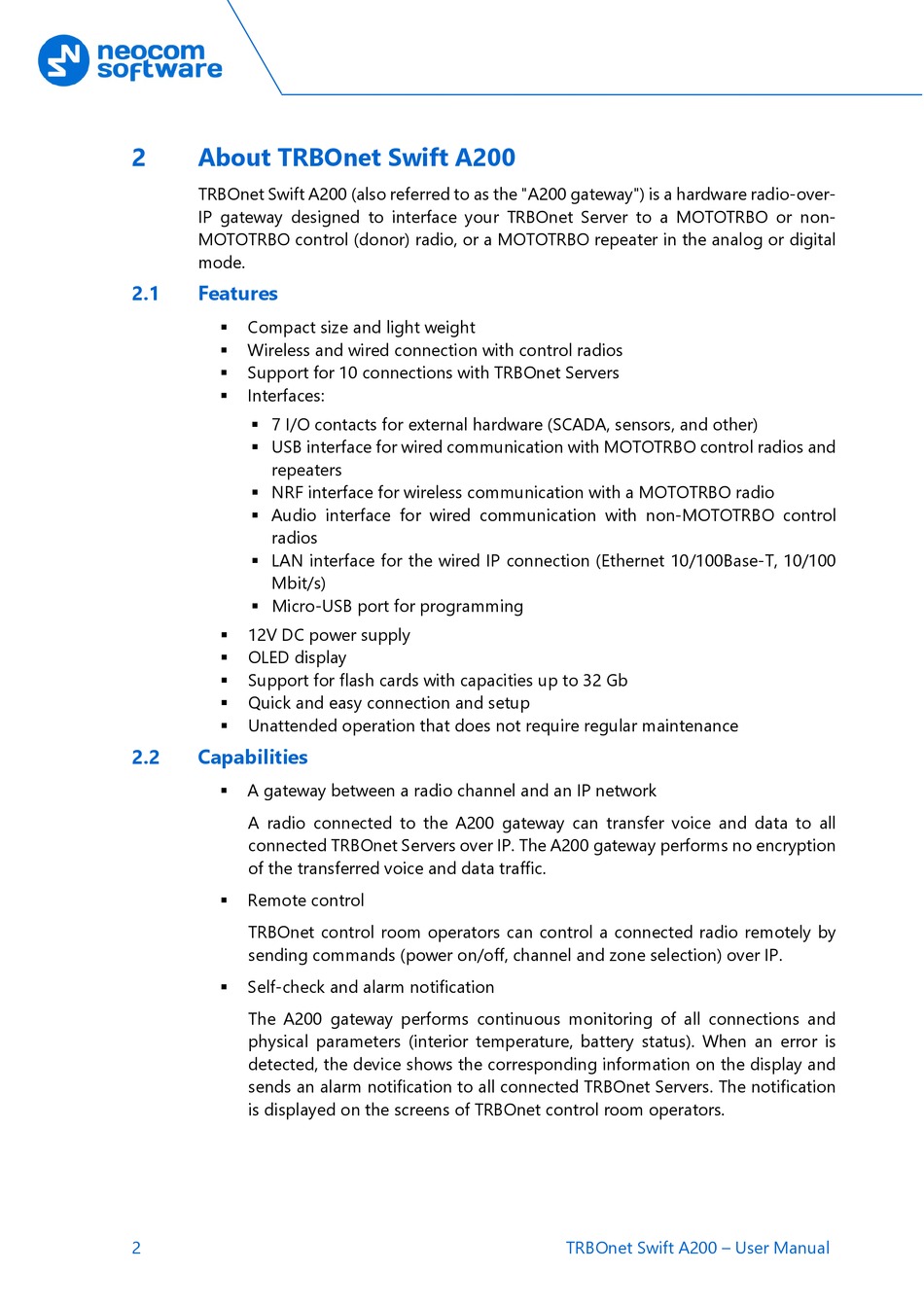

About TRBOnet Swift A200

TRBOnet Swift A200 (also referred to as the "A200 gateway") is a hardware radio-over-
IP gateway designed to interface your TRBOnet Server to a MOTOTRBO or non-
MOTOTRBO control (donor) radio, or a MOTOTRBO repeater in the analog or digital
mode.
2.1

Features

Compact size and light weight

Wireless and wired connection with control radios

Support for 10 connections with TRBOnet Servers

Interfaces:

 7 I/O contacts for external hardware (SCADA, sensors, and other)
 USB interface for wired communication with MOTOTRBO control radios and
repeaters
 NRF interface for wireless communication with a MOTOTRBO radio
 Audio interface for wired communication with non-MOTOTRBO control
radios
 LAN interface for the wired IP connection (Ethernet 10/100Base-T, 10/100
Mbit/s)
 Micro-USB port for programming
12V DC power supply

OLED display

Support for flash cards with capacities up to 32 Gb

Quick and easy connection and setup

Unattended operation that does not require regular maintenance

2.2

Capabilities

A gateway between a radio channel and an IP network

A radio connected to the A200 gateway can transfer voice and data to all
connected TRBOnet Servers over IP. The A200 gateway performs no encryption
of the transferred voice and data traffic.
Remote control

TRBOnet control room operators can control a connected radio remotely by
sending commands (power on/off, channel and zone selection) over IP.
Self-check and alarm notification

The A200 gateway performs continuous monitoring of all connections and
physical parameters (interior temperature, battery status). When an error is
detected, the device shows the corresponding information on the display and
sends an alarm notification to all connected TRBOnet Servers. The notification
is displayed on the screens of TRBOnet control room operators.
