 Data transfer rate: The data transfer rate for wireless communication.
Values: 1 Mbps (default), 2 Mbps.
 Channel: The radio channel for wireless communication. Range: 0 to 125. If
multiple A200 gateways use NRF on the same spot, it is recommended that
their radio channel numbers differ by 5 or more.
 Power: The power of the ISM transceiver. Values: 20, 60, 250, 1000 µW.
 Address: The group call ID on the NRF network. Only devices programmed
with the same value can communicate on the NRF network. Default:
E7:E7:E7:E7:E7.
 Width address: The number of sections in the NRF address (above) to be
considered. Values: 3, 4, 5. Default: 3.
Note: It is important to specify the same NRF connection settings in the configuration
of the option board installed inside the radio.
(Optional) If you need to display the states of I/O pins in the TRBOnet software
tools, click I/O Settings in the left panel.
In the right panel, configure the I/O pins of the A200 gateway that are
connected to external hardware (Figure 5). For each connected I/O pin, expand
the menu and select the logical pin in TRBOnet:
 For input pins, choose "Input" with the index 1 through 4.
 For output pins, choose "Output" with the index 5 through 10.
Specify the active level of the signal and other I/O pin settings.
Note: For TRBOnet software to display the states of the A200 gateway pins, configure
TRBOnet software as described in section
If a physical pin is not connected, leave it unassigned.

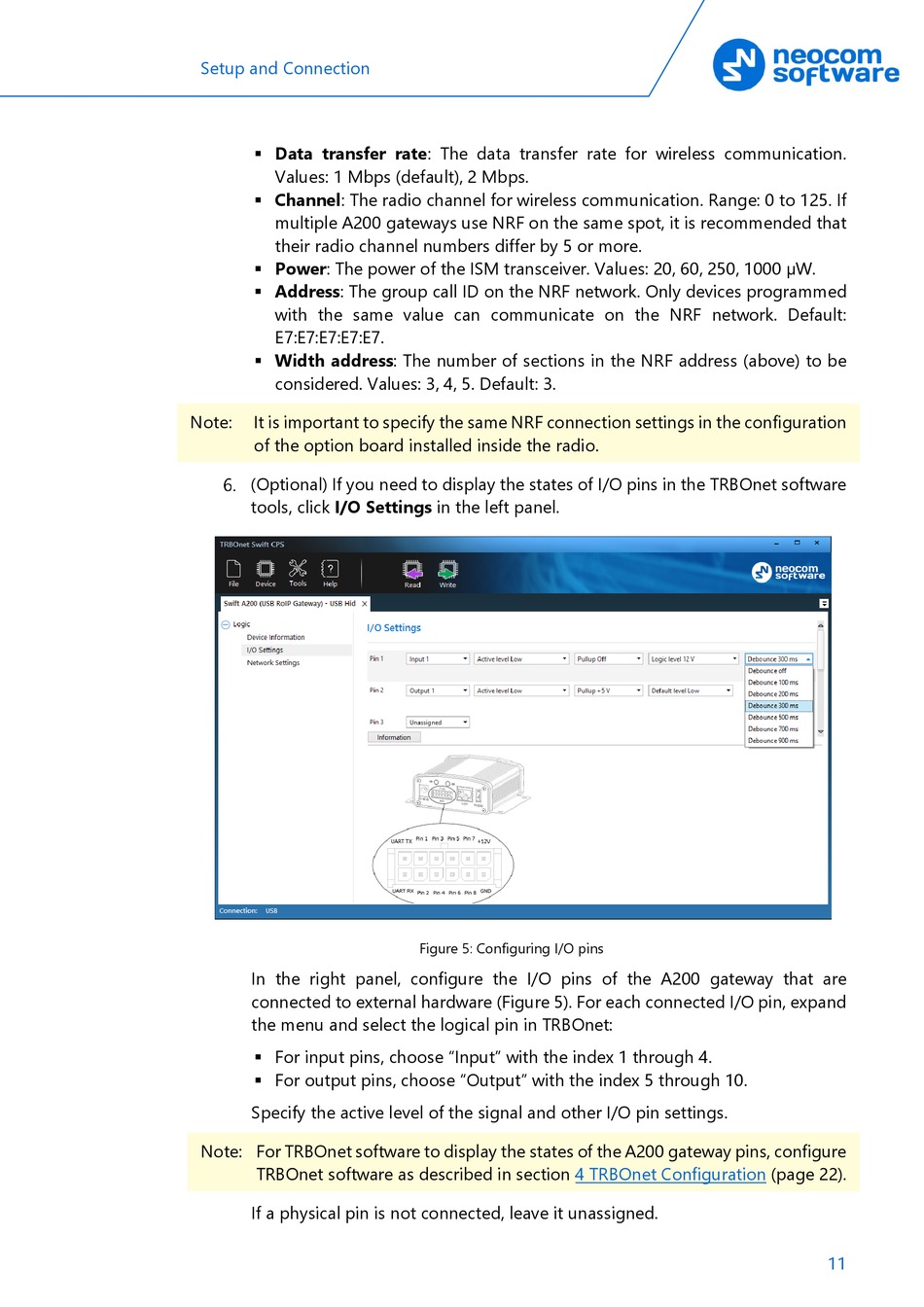

Figure 5: Configuring I/O pins
4 TRBOnet Configuration (page 22).
