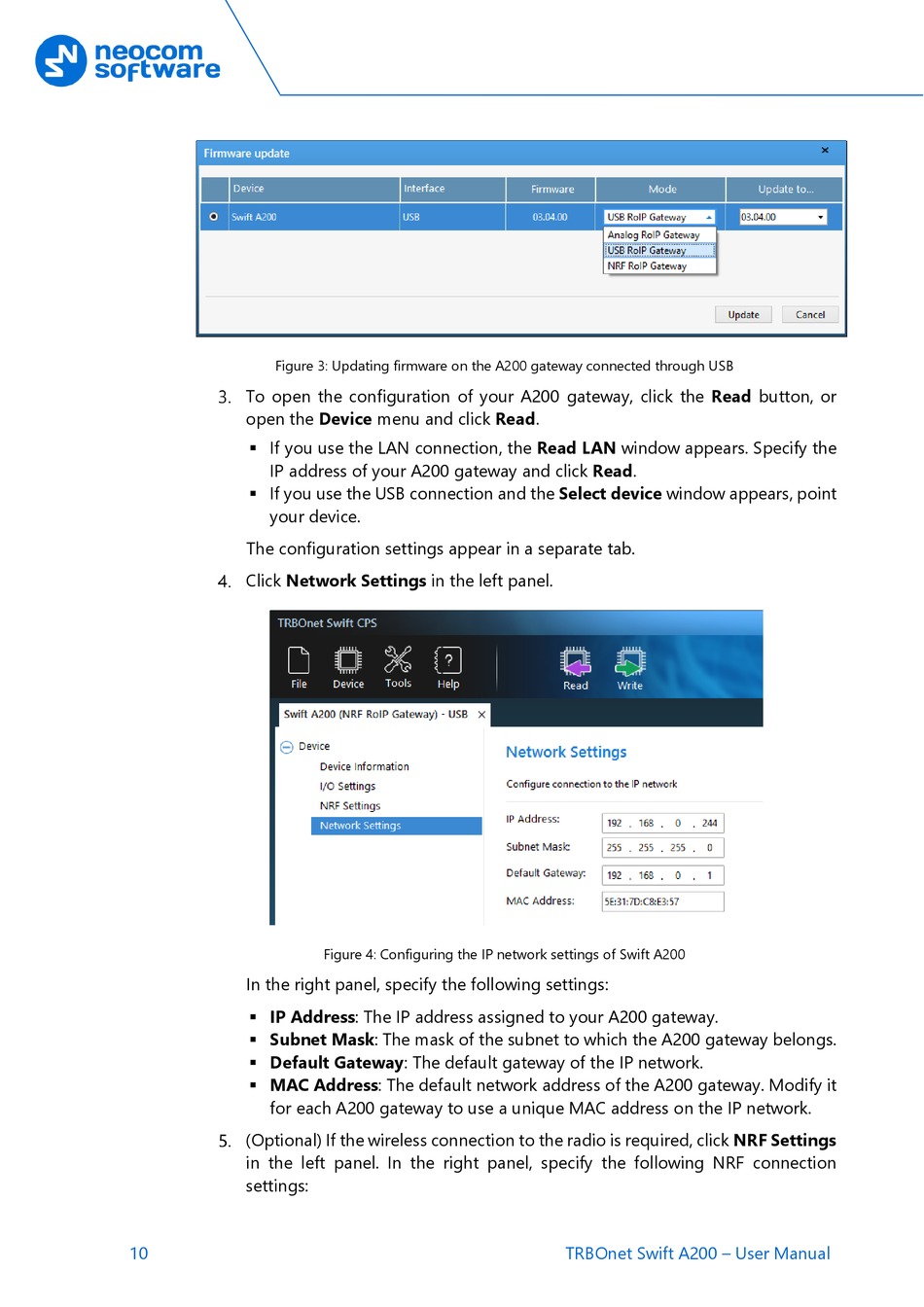

Figure 3: Updating firmware on the A200 gateway connected through USB
To open the configuration of your A200 gateway, click the Read button, or
open the Device menu and click Read.
 If you use the LAN connection, the Read LAN window appears. Specify the
IP address of your A200 gateway and click Read.
 If you use the USB connection and the Select device window appears, point
your device.
The configuration settings appear in a separate tab.
Click Network Settings in the left panel.
In the right panel, specify the following settings:
 IP Address: The IP address assigned to your A200 gateway.
 Subnet Mask: The mask of the subnet to which the A200 gateway belongs.
 Default Gateway: The default gateway of the IP network.
 MAC Address: The default network address of the A200 gateway. Modify it
for each A200 gateway to use a unique MAC address on the IP network.
(Optional) If the wireless connection to the radio is required, click NRF Settings
in the left panel. In the right panel, specify the following NRF connection
settings:
10
Figure 4: Configuring the IP network settings of Swift A200
