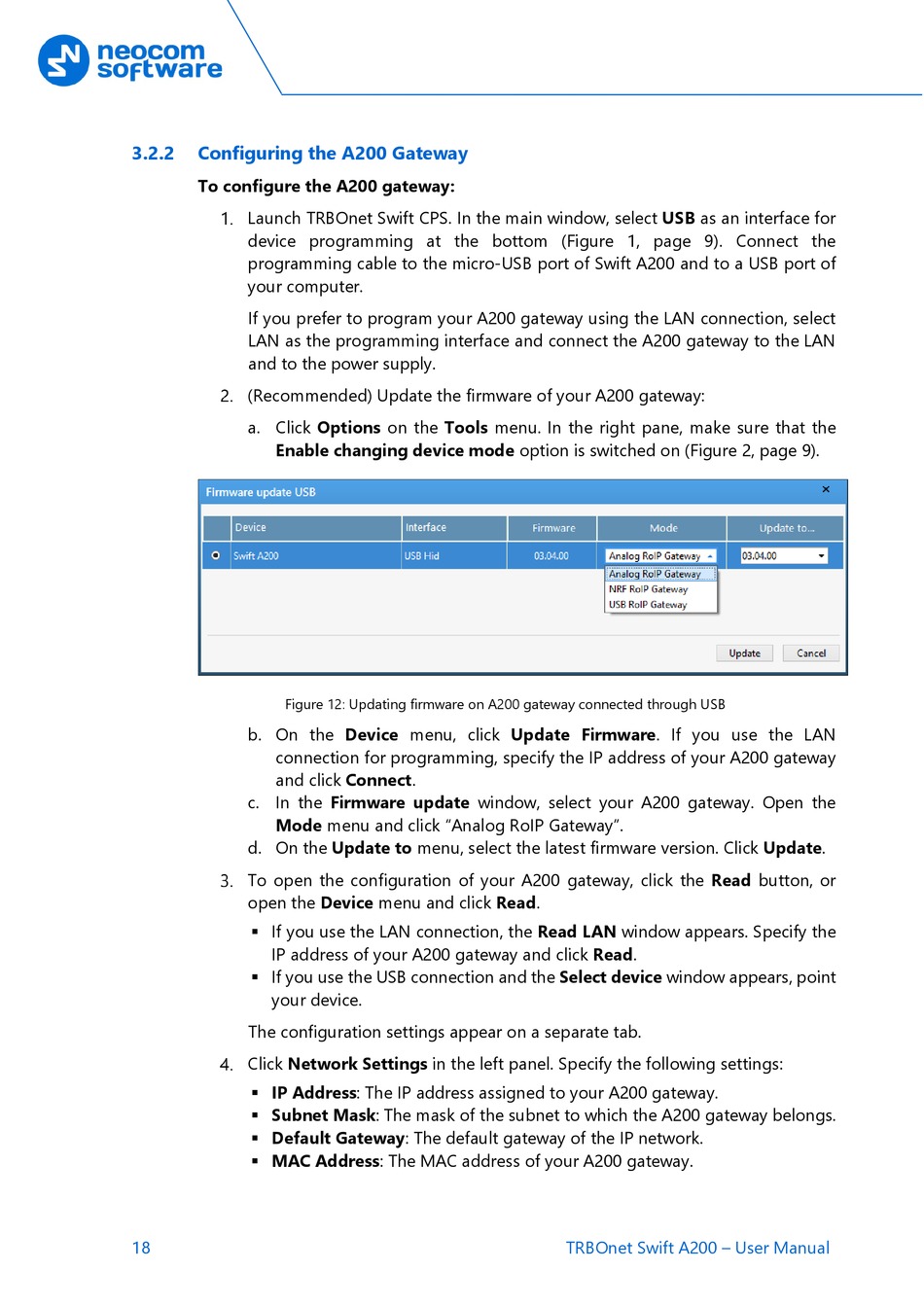

3.2.2 Configuring the A200 Gateway
To configure the A200 gateway:
Launch TRBOnet Swift CPS. In the main window, select USB as an interface for
device programming at the bottom (Figure 1, page 9). Connect the
programming cable to the micro-USB port of Swift A200 and to a USB port of
your computer.
If you prefer to program your A200 gateway using the LAN connection, select
LAN as the programming interface and connect the A200 gateway to the LAN
and to the power supply.
(Recommended) Update the firmware of your A200 gateway:
a. Click Options on the Tools menu. In the right pane, make sure that the
Enable changing device mode option is switched on (Figure 2, page 9).
Figure 12: Updating firmware on A200 gateway connected through USB
b. On the Device menu, click Update Firmware. If you use the LAN
connection for programming, specify the IP address of your A200 gateway
and click Connect.
c. In the Firmware update window, select your A200 gateway. Open the
Mode menu and click "Analog RoIP Gateway".
d. On the Update to menu, select the latest firmware version. Click Update.
To open the configuration of your A200 gateway, click the Read button, or
open the Device menu and click Read.
 If you use the LAN connection, the Read LAN window appears. Specify the
IP address of your A200 gateway and click Read.
 If you use the USB connection and the Select device window appears, point
your device.
The configuration settings appear on a separate tab.
Click Network Settings in the left panel. Specify the following settings:
 IP Address: The IP address assigned to your A200 gateway.
 Subnet Mask: The mask of the subnet to which the A200 gateway belongs.
 Default Gateway: The default gateway of the IP network.
 MAC Address: The MAC address of your A200 gateway.
18 TRBOnet Swift A200 – User Manual
