Setup and Connection
Click I/O Settings in the left panel. In the right panel, configure the I/O
connector pins:
For I/O pins connected to the service cable, specify the function (PTT Output,

CSQ Input, other), the active level, and other I/O pin settings (Figure 13).
Note: The coupled pins of the radio connector must be configured to use the
matching function and active level. For details, refer to section
Configuring the Radio
If any I/O pins are connected by external hardware, configure the A200 gateway

to send the states of these pins to TRBOnet software. For each I/O pin
connected by external hardware, expand the menu and select the logical pin in
TRBOnet:
 For input pins, choose "Input" with the index 1 through 4.
 For output pins, choose "Output" with the index 5 through 10.
Specify the active level of the signal and other I/O pin settings.
Note: For TRBOnet software to display the pin states received from the A200
gateway, configure TRBOnet software as described in section
Configuration (page 22).

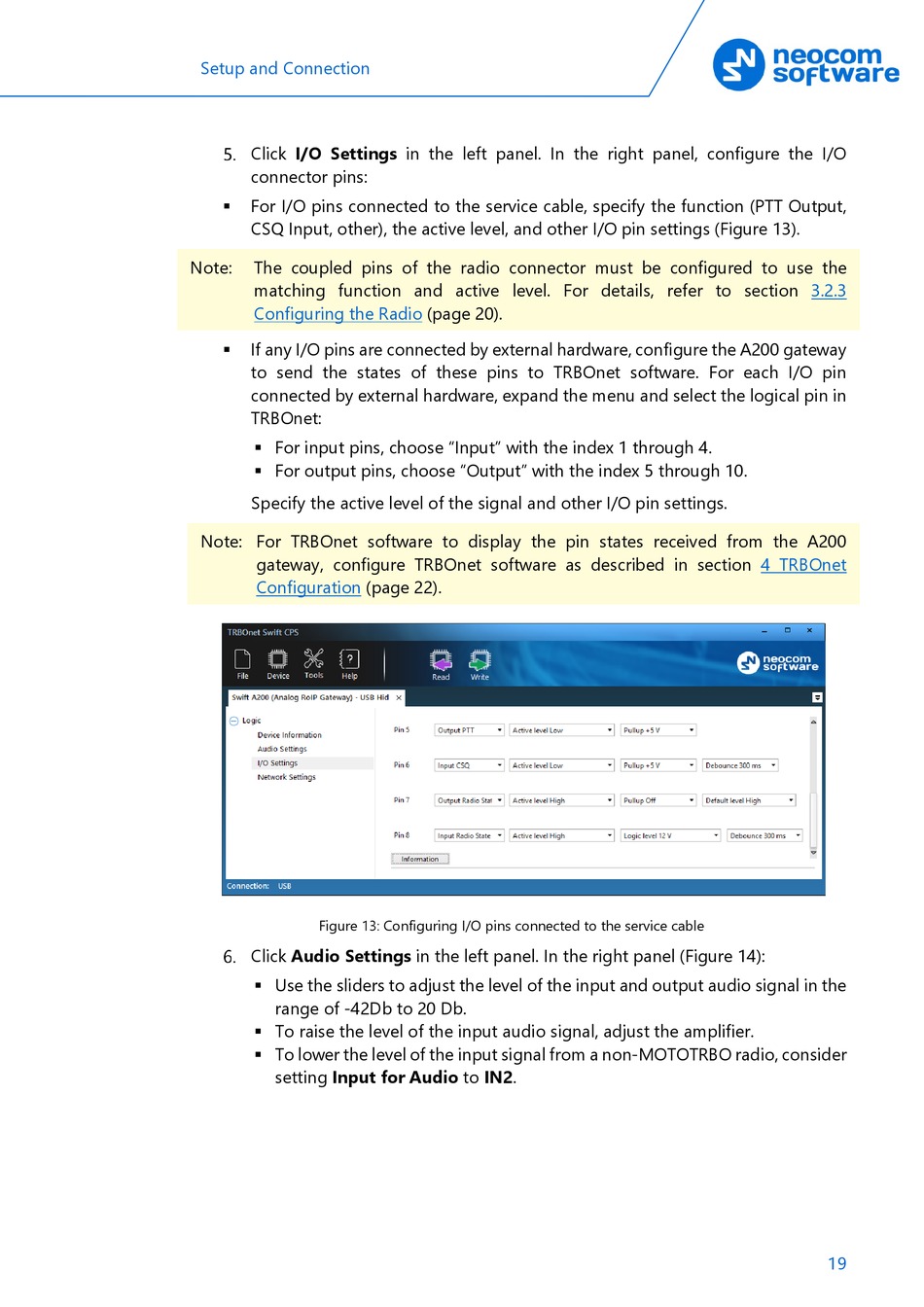

Figure 13: Configuring I/O pins connected to the service cable
Click Audio Settings in the left panel. In the right panel (Figure 14):
 Use the sliders to adjust the level of the input and output audio signal in the
range of -42Db to 20 Db.
 To raise the level of the input audio signal, adjust the amplifier.
 To lower the level of the input signal from a non-MOTOTRBO radio, consider
setting Input for Audio to IN2.
(page 20).
