TRBOnet Configuration
4.1
TRBOnet Enterprise/PLUS Configuration
I/O pins of the A200 gateway are supported in TRBOnet Enterprise (PLUS) 4.8.1.1008
and later versions. In this example, the A200 gateway is registered as a radio system
in the TRBOnet Enterprise (PLUS) Server configuration (Figure 18).

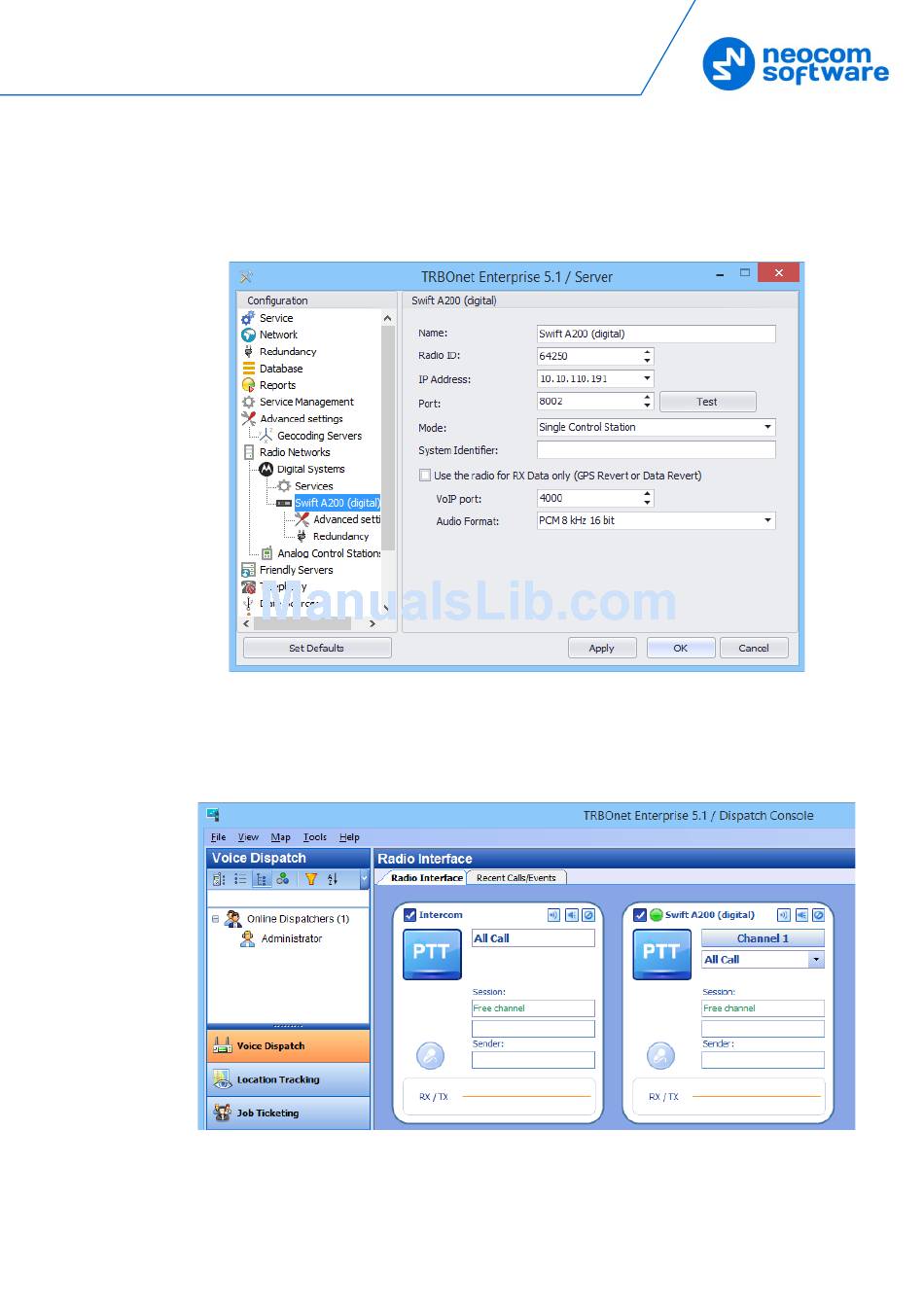

Figure 18: Registering Swift A200 as a radio system
Launch the TRBOnet Dispatch Console and click Voice Dispatch in the left pane. If
registered correctly, your A200 gateway appears on the Radio Interface tab with the
green ("connected") icon (Figure 19).
Figure 19: The RoIP gateway "Swift A200 (digital)" is connected properly
23
